VNP14NV04-E

VNP14NV04-E Overview

Product belongs to the OMNIFET II, VIPower series. This product is categorized as MOSFET Gate Drivers Type: Non-Inverting Tube is the packaging method for this product Weight of 0.079014 oz Through Hole Mounting-Style TO-220-3 The Non-Inverting for this product is CMOS/TTL. Operational temperature range: -40°C ~ 150°C (TJ) Output-Type: N-Channel Interface: On/Off Supplier device package: TO-220AB The Ratio-Input:Output for this product is 1899/12/30 1:01:00. Configuration Single Number-of-Outputs: 1 Supply Voltage: Not Required The Low Side. The 35 mOhm (Max). Voltage-Load range is 36V (Max). Our product delivers a 12A of 50mA for efficient power management. The Switch-Type is General Purpose. Power-off control: 74 W Maximum operating temperature of + 150 C Minimum operating temperature: - 40 C 20 mA is 92 nA. This product has a 150 ns of 16 ns. This product has a 350 ns of 16 ns. Number-of-Drivers: 1 Driver This product has a Maximum-Turn-Off-Delay-Time of 1350 ns. 250 ns maximum turn-on delay time

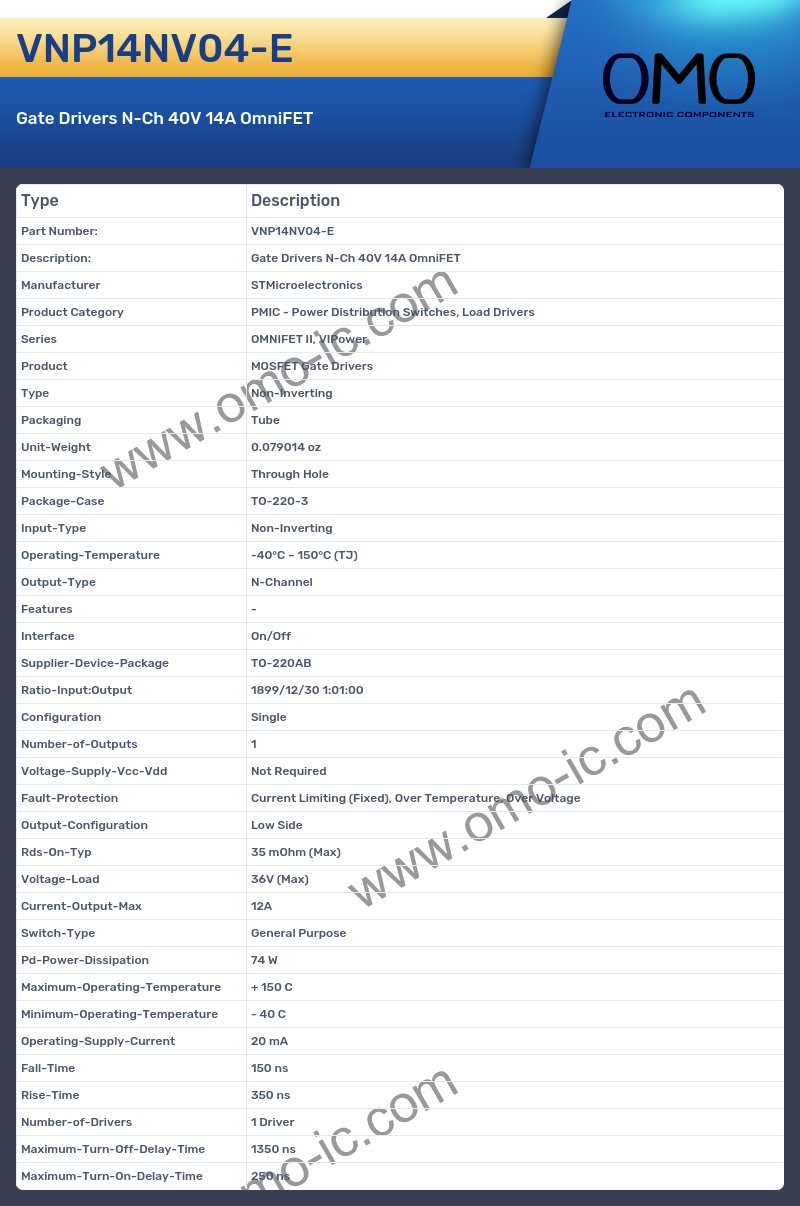

VNP14NV04-E Image

VNP14NV04-E Specifications

• Manufacturer STMicroelectronics
• Product Category PMIC - Power Distribution Switches, Load Drivers
• Series OMNIFET II, VIPower
• Product MOSFET Gate Drivers
• Type Non-Inverting
• Packaging Tube
• Unit-Weight 0.079014 oz
• Mounting-Style Through Hole
• Package-Case TO-220-3
• Input-Type Non-Inverting
• Operating-Temperature -40°C ~ 150°C (TJ)
• Output-Type N-Channel
• Features -
• Interface On/Off
• Supplier-Device-Package TO-220AB
• Ratio-Input:Output 1899/12/30 1:01:00
• Configuration Single
• Number-of-Outputs 1
• Voltage-Supply-Vcc-Vdd Not Required
• Fault-Protection Current Limiting (Fixed), Over Temperature, Over Voltage
• Output-Configuration Low Side
• Rds-On-Typ 35 mOhm (Max)
• Voltage-Load 36V (Max)
• Current-Output-Max 12A
• Switch-Type General Purpose
• Pd-Power-Dissipation 74 W
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 20 mA
• Fall-Time 150 ns
• Rise-Time 350 ns
• Number-of-Drivers 1 Driver
• Maximum-Turn-Off-Delay-Time 1350 ns
• Maximum-Turn-On-Delay-Time 250 ns
