VNH5050ATR-E

VNH5050ATR-E Overview

Product belongs to the ECOPACKR, VIPower series. This product is categorized as Fan / Motor Controllers / Drivers Type: Automotive Fully Integrated H-Bridge Motor Driver Digi-ReelR Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style PowerSSO-36 Power MOSFET is the technology used. Operational temperature range: -40°C ~ 150°C (TJ) Surface Mount mounting type Product function is Driver - Fully Integrated, Control and Power Stage. Versatile Automotive applications for maximum usability Interface: Parallel, PWM Voltage Supply Range: 5.5 V ~ 18 V Supplier device package: PowerSSO-36 The Half Bridge (2). Voltage-Load range is 5.5 V ~ 18 V. Brushed DC motor type is used for high-performance and efficient operation. This product operates at a 5.5 V to 18 V supply voltage for reliable performance. 8 mA is 92 nA.

VNH5050ATR-E Image

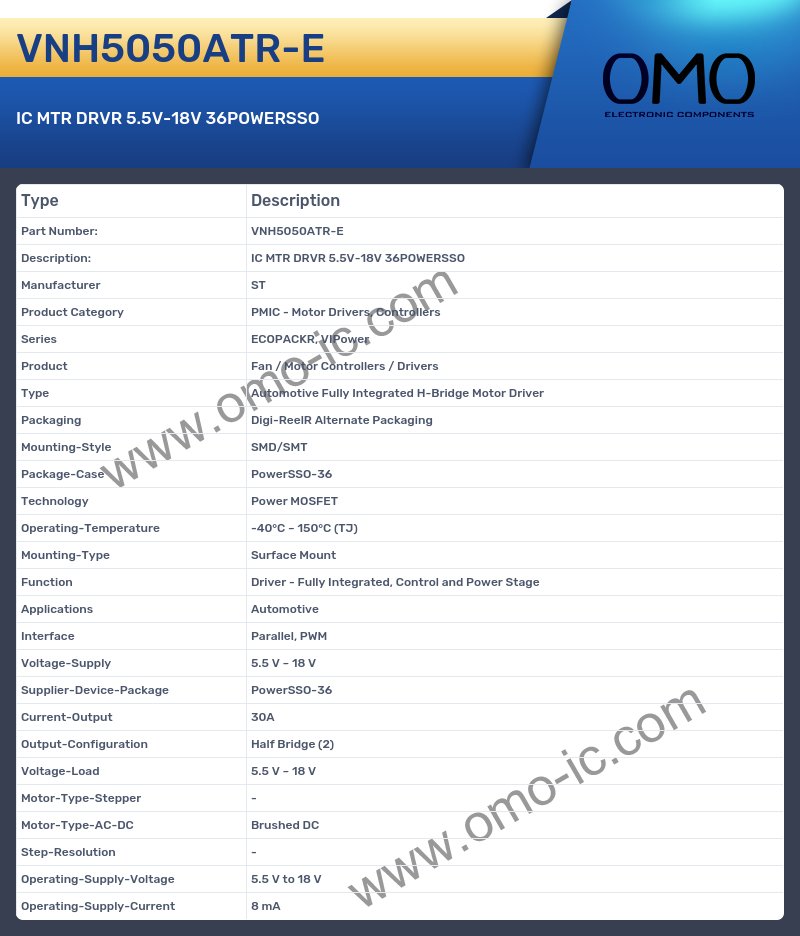

VNH5050ATR-E Specifications

• Manufacturer ST
• Product Category PMIC - Motor Drivers, Controllers
• Series ECOPACKR, VIPower
• Product Fan / Motor Controllers / Drivers
• Type Automotive Fully Integrated H-Bridge Motor Driver
• Packaging Digi-ReelR Alternate Packaging
• Mounting-Style SMD/SMT
• Package-Case PowerSSO-36
• Technology Power MOSFET
• Operating-Temperature -40°C ~ 150°C (TJ)
• Mounting-Type Surface Mount
• Function Driver - Fully Integrated, Control and Power Stage
• Applications Automotive
• Interface Parallel, PWM
• Voltage-Supply 5.5 V ~ 18 V
• Supplier-Device-Package PowerSSO-36
• Current-Output 30A
• Output-Configuration Half Bridge (2)
• Voltage-Load 5.5 V ~ 18 V
• Motor-Type-Stepper -
• Motor-Type-AC-DC Brushed DC
• Step-Resolution -
• Operating-Supply-Voltage 5.5 V to 18 V
• Operating-Supply-Current 8 mA
