| Mfr. #: | ULN2801A |
|---|---|
| Өндіруші: | STMicroelectronics |
| Сипаттама: | Darlington Transistors Eight NPN Array |
| Өміршеңдік кезең: | Осы өндірушіден жаңа. |
| Деректер тізімі: | ULN2801A Деректер тізімі |

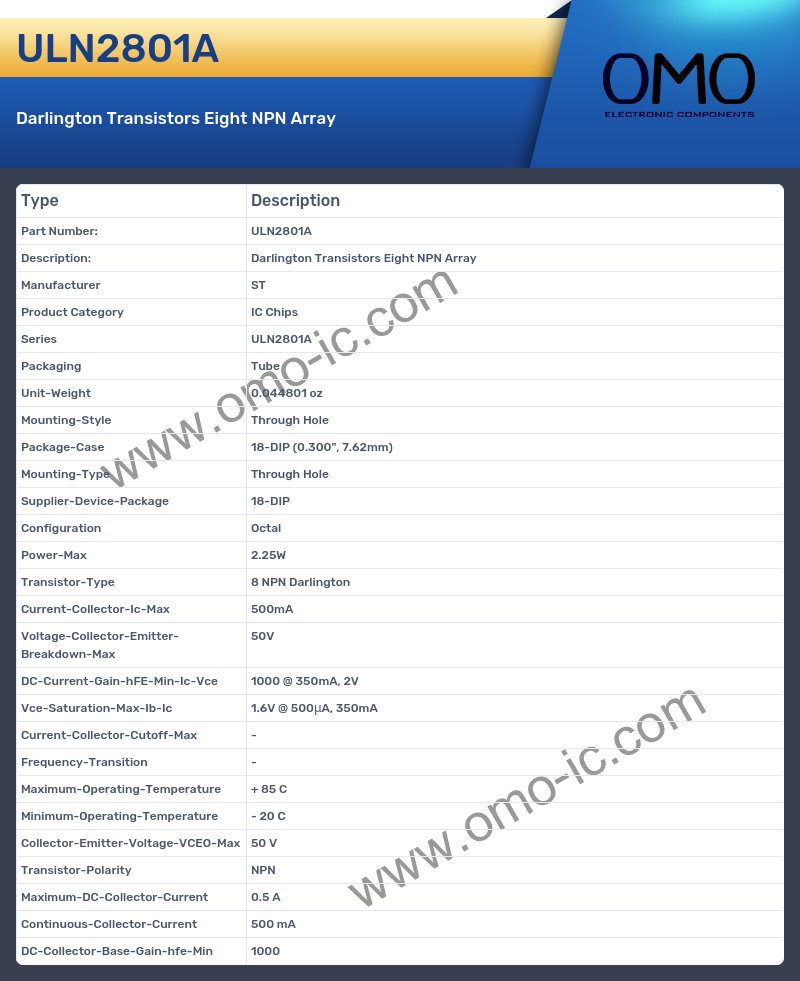

Product belongs to the ULN2801A series. Tube is the packaging method for this product Weight of 0.044801 oz Through Hole Mounting-Style 18-DIP (0.300", 7.62mm) Through Hole mounting type Supplier device package: 18-DIP Configuration Octal Transistor type: 8 NPN Darlington Maximum current collector Ic is 500mA . Maximum collector-emitter breakdown voltage of 50V DC current gain minimum (hFE) of Ic/Vce at 1000 @ 350mA, 2V. Product Attribute: Vce-Saturation-Max-Ib-Ic: 1.6V @ 500μA, 350mA Maximum operating temperature of + 85 C Minimum operating temperature: - 20 C Rated VCEO up to 50 V The transistor polarity is NPN. Max DC collector current: 0.5 A This product is capable of handling a 500 mA continuous collector current. Minimum hfe for DC collector-base gain is 1000.
