| Mfr. #: | ULN2003APW |
|---|---|
| Өндіруші: | Texas Instruments |
| Сипаттама: | Darlington Transistors Hi-Vltg Hi-Crnt Darl Transistor Arrays |
| Өміршеңдік кезең: | Осы өндірушіден жаңа. |
| Деректер тізімі: | ULN2003APW Деректер тізімі |

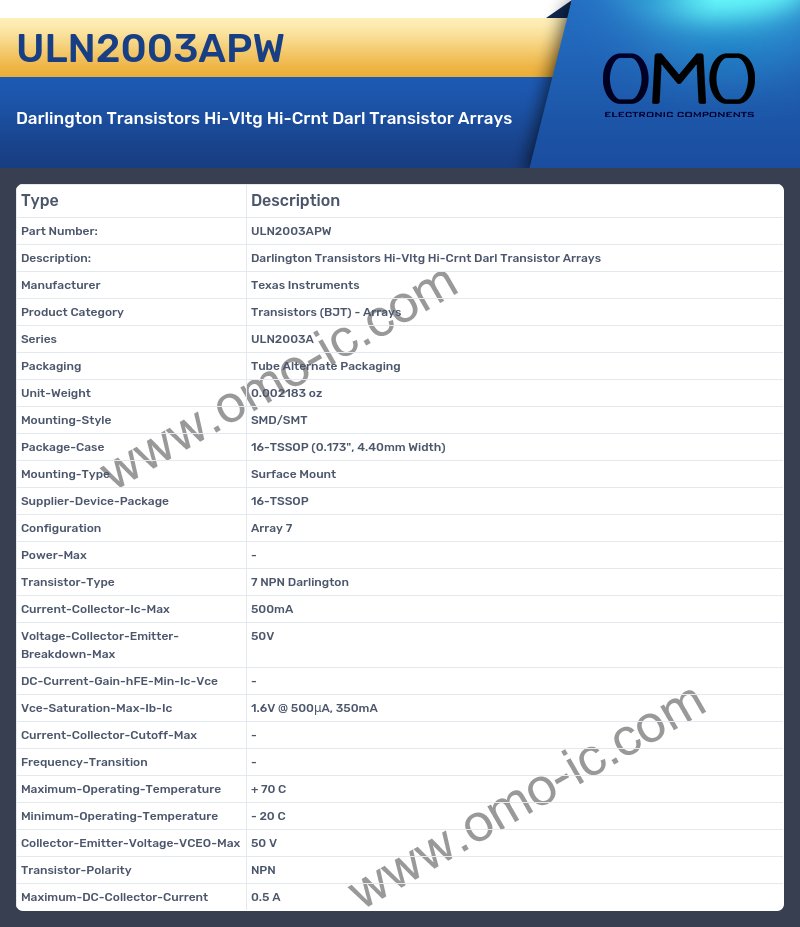

Product belongs to the ULN2003A series. Tube Alternate Packaging is the packaging method for this product Weight of 0.002183 oz SMD/SMT Mounting-Style 16-TSSOP (0.173", 4.40mm Width) Surface Mount mounting type Supplier device package: 16-TSSOP Configuration Array 7 Transistor type: 7 NPN Darlington Maximum current collector Ic is 500mA . Maximum collector-emitter breakdown voltage of 50V DC current gain minimum (hFE) of Ic/Vce at -. Product Attribute: Vce-Saturation-Max-Ib-Ic: 1.6V @ 500μA, 350mA Maximum operating temperature of + 70 C Minimum operating temperature: - 20 C Rated VCEO up to 50 V The transistor polarity is NPN. Max DC collector current: 0.5 A
