UCD74106RGMT

UCD74106RGMT Overview

Product belongs to the UCD74106 series. This product is categorized as MOSFET Gate Drivers Type: Synchronous Buck MOSFET Driver Tape & Reel (TR) Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style VQFN-13 Operational temperature range: -40°C ~ 125°C (TJ) Surface Mount mounting type Output-Type: - Product function is Step-Down. Supplier device package: 13-VQFN (3x3) Number-of-Outputs: 1 Topology: Buck feedback This product features 'Frequency-Switching' at Up to 2MHz for optimal performance. The Positive. Minimum fixed output voltage is - . The value of Yes is included as a product attribute. The minimum input voltage is 4.5V. The 18V. Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Output voltage: 3.3 V 4 mA is 92 nA. Output current: 6 A Maximum supply voltage of 18 V Minimum supply voltage is 2.2 V Number-of-Drivers: 1 Driver

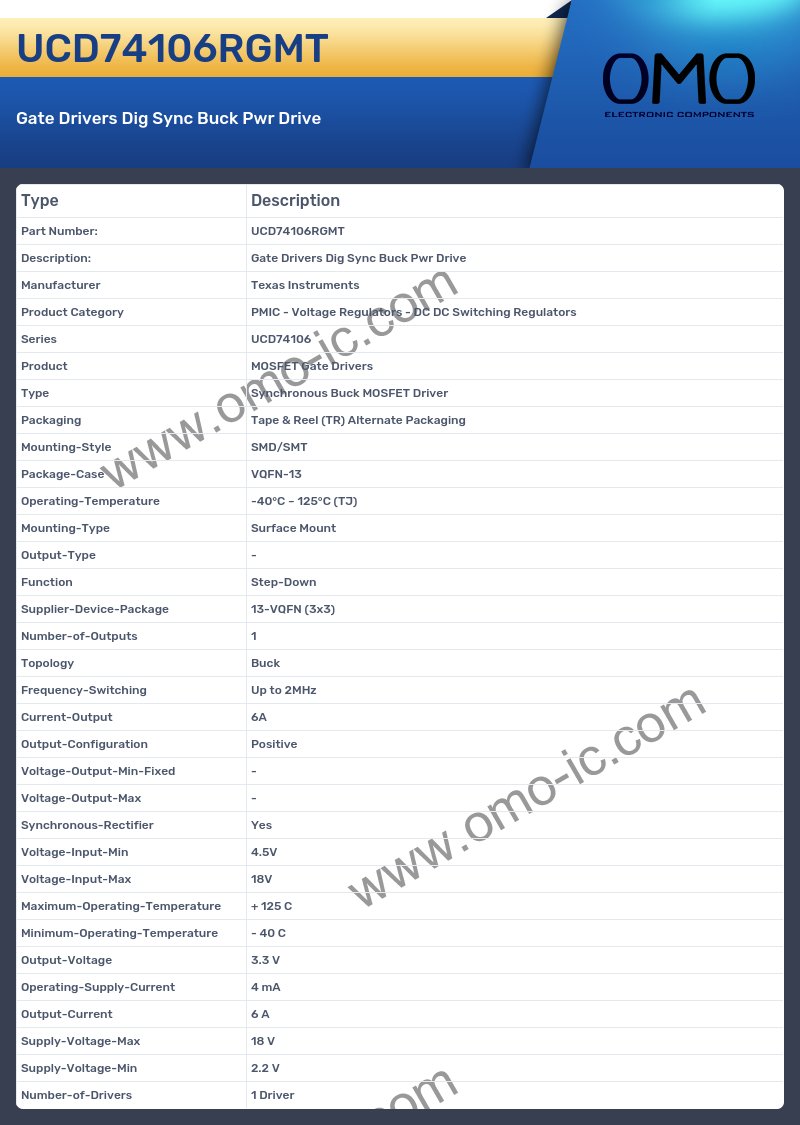

UCD74106RGMT Image

UCD74106RGMT Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - DC DC Switching Regulators
• Series UCD74106
• Product MOSFET Gate Drivers
• Type Synchronous Buck MOSFET Driver
• Packaging Tape & Reel (TR) Alternate Packaging
• Mounting-Style SMD/SMT
• Package-Case VQFN-13
• Operating-Temperature -40°C ~ 125°C (TJ)
• Mounting-Type Surface Mount
• Output-Type -
• Function Step-Down
• Supplier-Device-Package 13-VQFN (3x3)
• Number-of-Outputs 1
• Topology Buck
• Frequency-Switching Up to 2MHz
• Current-Output 6A
• Output-Configuration Positive
• Voltage-Output-Min-Fixed -
• Voltage-Output-Max -
• Synchronous-Rectifier Yes
• Voltage-Input-Min 4.5V
• Voltage-Input-Max 18V
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 3.3 V
• Operating-Supply-Current 4 mA
• Output-Current 6 A
• Supply-Voltage-Max 18 V
• Supply-Voltage-Min 2.2 V
• Number-of-Drivers 1 Driver
