UCC3570DTR

UCC3570DTR Overview

Product belongs to the - series. Tape & Reel (TR) is the packaging method for this product 14-SOIC (0.154", 3.90mm Width) Operational temperature range: 0°C ~ 70°C (TA) * mounting type Supplier device package: 14-SOICN Output-Isolation: Isolated This product has No. Topology: Forward feedback Supply Voltage: 9 V ~ 15 V This product features 'Frequency-Switching' at 500kHz for optimal performance. The Control-Features include Frequency Control, Soft Start function.

UCC3570DTR Image

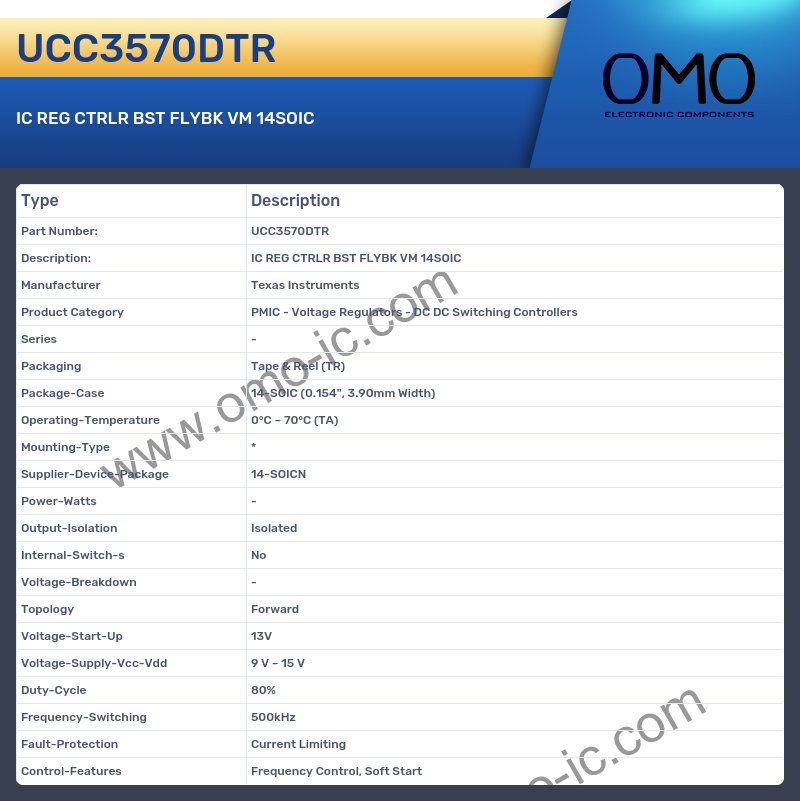

UCC3570DTR Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - DC DC Switching Controllers
• Series -
• Packaging Tape & Reel (TR)
• Package-Case 14-SOIC (0.154", 3.90mm Width)
• Operating-Temperature 0°C ~ 70°C (TA)
• Mounting-Type *
• Supplier-Device-Package 14-SOICN
• Power-Watts -
• Output-Isolation Isolated
• Internal-Switch-s No
• Voltage-Breakdown -
• Topology Forward
• Voltage-Start-Up 13V
• Voltage-Supply-Vcc-Vdd 9 V ~ 15 V
• Duty-Cycle 80%
• Frequency-Switching 500kHz
• Fault-Protection Current Limiting
• Control-Features Frequency Control, Soft Start
