UCC2961N

UCC2961N Overview

Product belongs to the - series. Tube is the packaging method for this product 14-DIP (0.300", 7.62mm) Operational temperature range: -40°C ~ 85°C (TA) Output-Type: Transistor Driver Product function is Step-Up/Step-Down. Supplier device package: 14-PDIP Number-of-Outputs: 1 Topology: Forward Converter feedback Supply Voltage: 8 V ~ 19 V This product features 'Frequency-Switching' at 400kHz for optimal performance. The Control-Features include Enable, Frequency Control, Soft Start function. The Positive, Isolation Capable. Output-Phases: 1 Maximum duty cycle of 0.72 The value of Yes is included as a product attribute. No enabled Serial Interfaces: -

UCC2961N Image

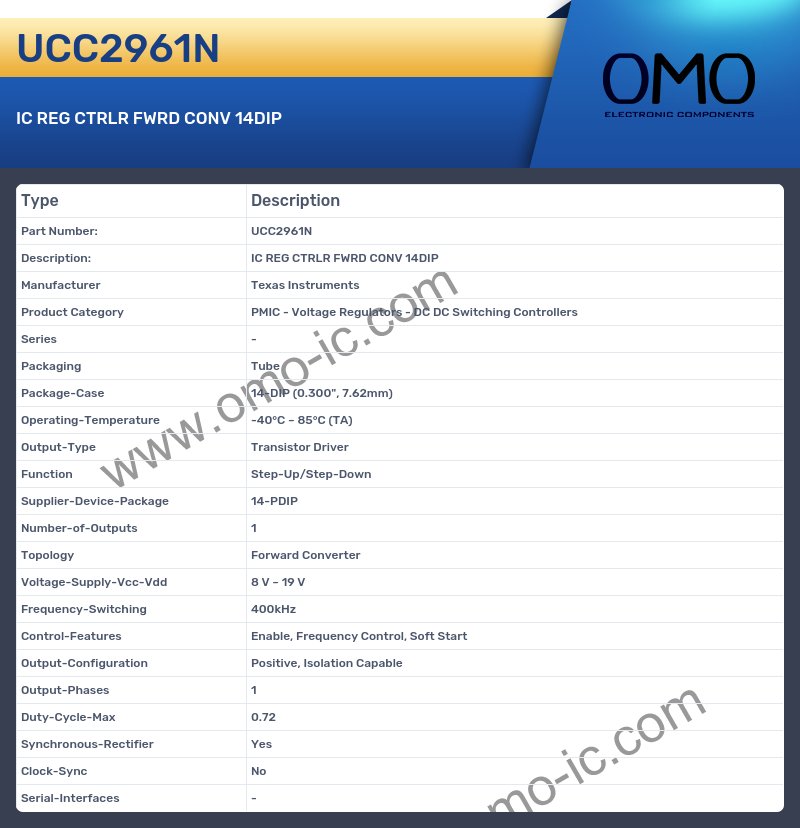

UCC2961N Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - DC DC Switching Controllers
• Series -
• Packaging Tube
• Package-Case 14-DIP (0.300", 7.62mm)
• Operating-Temperature -40°C ~ 85°C (TA)
• Output-Type Transistor Driver
• Function Step-Up/Step-Down
• Supplier-Device-Package 14-PDIP
• Number-of-Outputs 1
• Topology Forward Converter
• Voltage-Supply-Vcc-Vdd 8 V ~ 19 V
• Frequency-Switching 400kHz
• Control-Features Enable, Frequency Control, Soft Start
• Output-Configuration Positive, Isolation Capable
• Output-Phases 1
• Duty-Cycle-Max 0.72
• Synchronous-Rectifier Yes
• Clock-Sync No
• Serial-Interfaces -
