| Mfr. #: | UCC2894D |
|---|---|
| Өндіруші: | Texas Instruments |
| Сипаттама: | Switching Controllers Current Mode Active Clamp |
| Өміршеңдік кезең: | Осы өндірушіден жаңа. |
| Деректер тізімі: | UCC2894D Деректер тізімі |

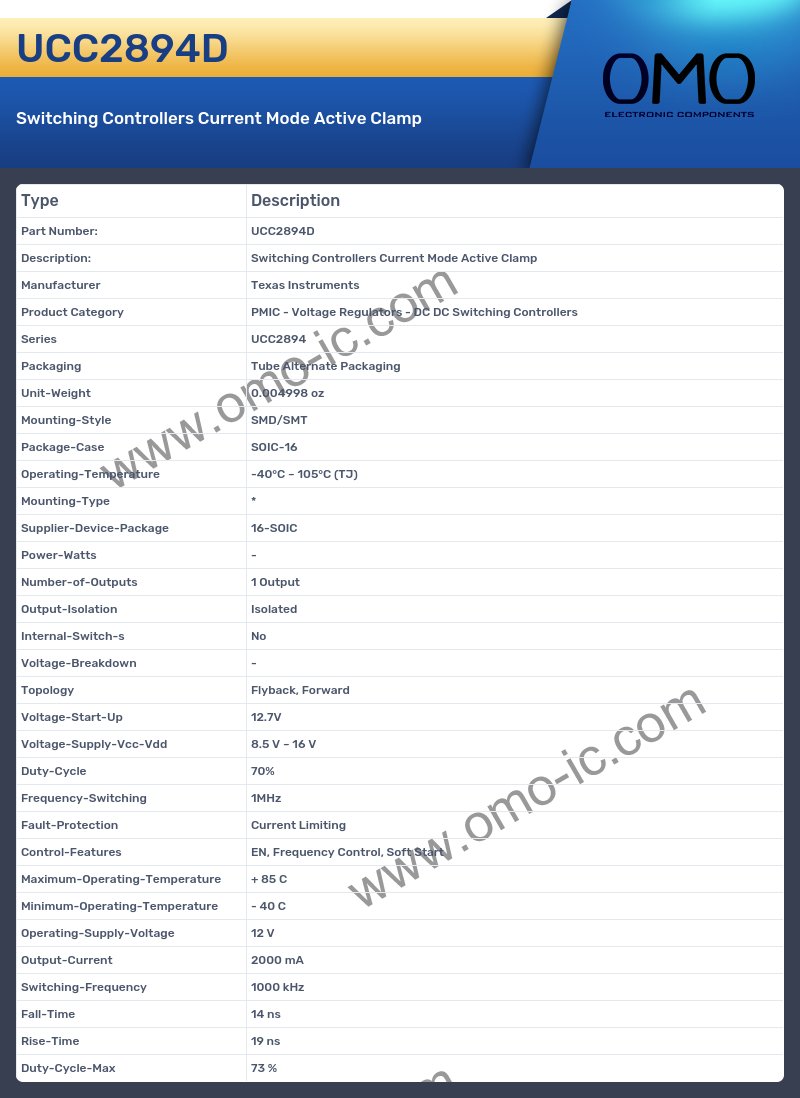

Product belongs to the UCC2894 series. Tube Alternate Packaging is the packaging method for this product Weight of 0.004998 oz SMD/SMT Mounting-Style SOIC-16 Operational temperature range: -40°C ~ 105°C (TJ) * mounting type Supplier device package: 16-SOIC Number-of-Outputs: 1 Output Output-Isolation: Isolated This product has No. Topology: Flyback, Forward feedback Supply Voltage: 8.5 V ~ 16 V This product features 'Frequency-Switching' at 1MHz for optimal performance. The Control-Features include EN, Frequency Control, Soft Start function. Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product operates at a 12 V supply voltage for reliable performance. Output current: 2000 mA Switching frequency is 1000 kHz This product has a 14 ns of 16 ns. This product has a 19 ns of 16 ns. Maximum duty cycle of 73 %
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
UCC2894D Specifications
