UCC25600D

UCC25600D Overview

Product belongs to the UCC25600 series. Tube is the packaging method for this product Weight of 0.002561 oz SMD/SMT Mounting-Style SOIC-8 Operational temperature range: -40°C ~ 125°C (TJ) Output-Type: Transistor Driver Product function is Step-Up/Step-Down. Supplier device package: 8-SOIC Number-of-Outputs: 2 Topology: Half-Bridge feedback Supply Voltage: 11.5 V ~ 18 V This product features 'Frequency-Switching' at 40kHz ~ 350kHz for optimal performance. The Control-Features include Current Limit, Frequency Control, Soft Start function. The Positive, Isolation Capable. Output-Phases: 1 Maximum duty cycle of 50 % The value of No is included as a product attribute. No enabled Serial Interfaces: - Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Output voltage: - 0.5 V to + 22.5 V Input Voltage Range: 22 V Output current: 25 mA Switching frequency is 350 kHz The UCC25600EVM.

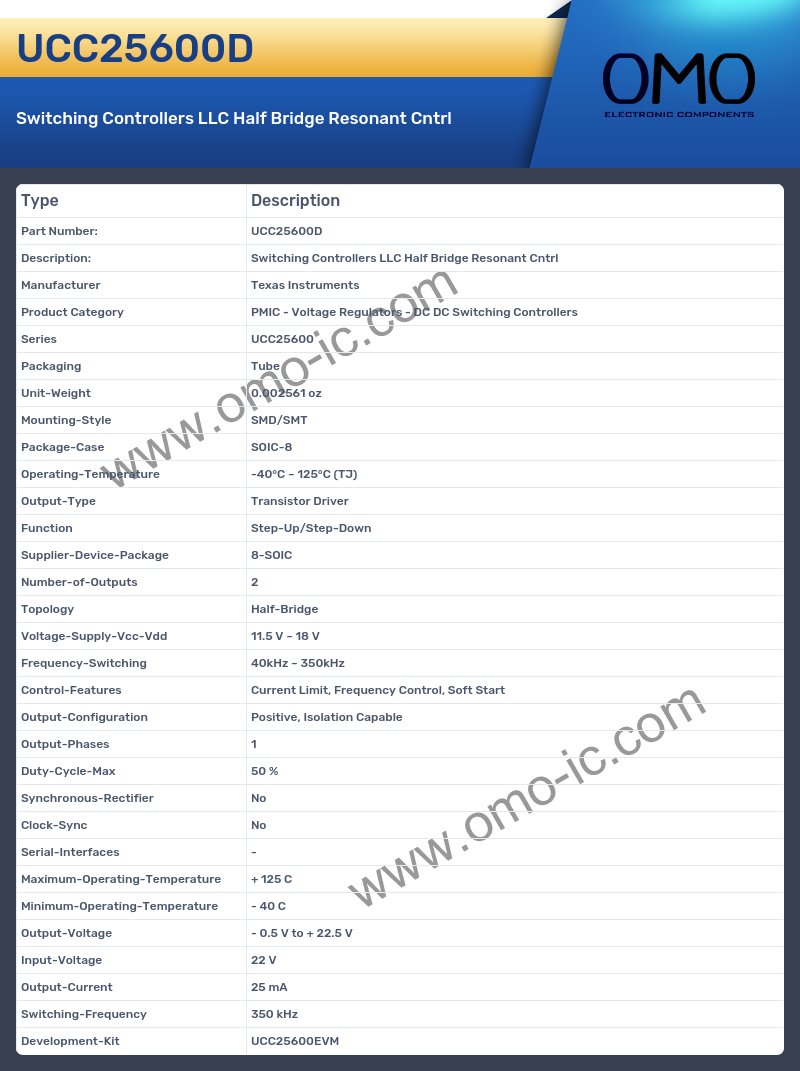

UCC25600D Image

UCC25600D Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - DC DC Switching Controllers
• Series UCC25600
• Packaging Tube
• Unit-Weight 0.002561 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-8
• Operating-Temperature -40°C ~ 125°C (TJ)
• Output-Type Transistor Driver
• Function Step-Up/Step-Down
• Supplier-Device-Package 8-SOIC
• Number-of-Outputs 2
• Topology Half-Bridge
• Voltage-Supply-Vcc-Vdd 11.5 V ~ 18 V
• Frequency-Switching 40kHz ~ 350kHz
• Control-Features Current Limit, Frequency Control, Soft Start
• Output-Configuration Positive, Isolation Capable
• Output-Phases 1
• Duty-Cycle-Max 50 %
• Synchronous-Rectifier No
• Clock-Sync No
• Serial-Interfaces -
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage - 0.5 V to + 22.5 V
• Input-Voltage 22 V
• Output-Current 25 mA
• Switching-Frequency 350 kHz
• Development-Kit UCC25600EVM
