UCC24630DBVT

UCC24630DBVT Overview

Product belongs to the UCC24630 series. This product is categorized as MOSFET Gate Drivers Type: Synchronous Rectifier Controller with Ultra-Low-Standby Current Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.001270 oz SMD/SMT Mounting-Style SOT-23-6 Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Versatile Secondary-Side Controller applications for maximum usability Voltage Supply Range: 3.6 V ~ 28 V Supplier device package: SOT-23-6 Configuration High Side - voltage input This product has a 900μA of 200μA. Number-of-Outputs: 1 Output Power-off control: Shutdown Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Output voltage: 19.5 V 900 uA is 92 nA. Output current: 3.33 A This product has a 20 ns of 16 ns. This product has a 27 ns of 16 ns. Maximum supply voltage of 28 V Minimum supply voltage is 3.75 V Number-of-Drivers: 1 Driver

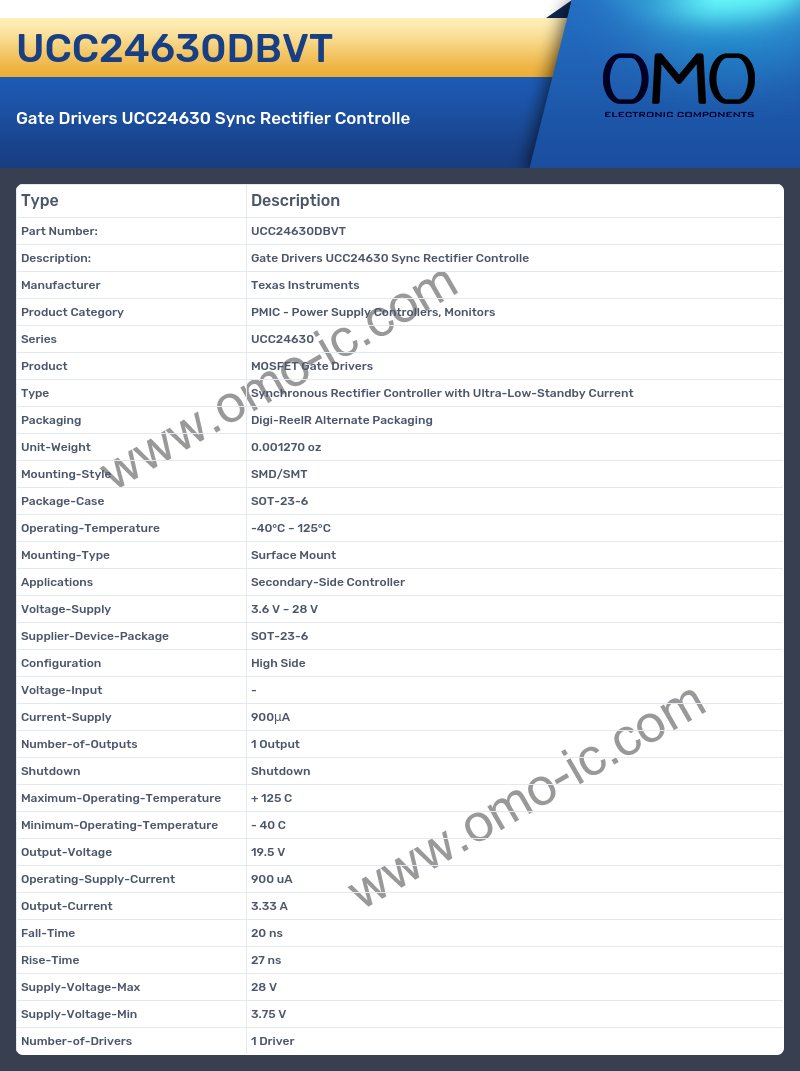

UCC24630DBVT Image

UCC24630DBVT Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Power Supply Controllers, Monitors
• Series UCC24630
• Product MOSFET Gate Drivers
• Type Synchronous Rectifier Controller with Ultra-Low-Standby Current
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.001270 oz
• Mounting-Style SMD/SMT
• Package-Case SOT-23-6
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Applications Secondary-Side Controller
• Voltage-Supply 3.6 V ~ 28 V
• Supplier-Device-Package SOT-23-6
• Configuration High Side
• Voltage-Input -
• Current-Supply 900μA
• Number-of-Outputs 1 Output
• Shutdown Shutdown
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 19.5 V
• Operating-Supply-Current 900 uA
• Output-Current 3.33 A
• Fall-Time 20 ns
• Rise-Time 27 ns
• Supply-Voltage-Max 28 V
• Supply-Voltage-Min 3.75 V
• Number-of-Drivers 1 Driver
