| Mfr. #: | UC3842BN |
|---|---|
| Өндіруші: | STMicroelectronics |
| Сипаттама: | IC REG CTRLR BST FLYBK ISO 8-DIP |
| Өміршеңдік кезең: | Осы өндірушіден жаңа. |
| Деректер тізімі: | UC3842BN Деректер тізімі |
Product belongs to the UC3842B series. Tube is the packaging method for this product Weight of 0.032805 oz Through Hole Mounting-Style PDIP-8 Operational temperature range: 0°C ~ 70°C (TA) Through Hole mounting type Supplier device package: 8-PDIP Number-of-Outputs: 1 Output Output-Isolation: Isolated This product has No. Topology: Flyback feedback Supply Voltage: 10 V ~ 30 V This product features 'Frequency-Switching' at Up to 500kHz for optimal performance. The Control-Features include Frequency Control function. Maximum operating temperature of + 150 C Minimum operating temperature: - 40 C This product operates at a 30 V supply voltage for reliable performance. Output voltage: 4.90 V to 5.10 V Output current: 1000 mA Switching frequency is 500 kHz This product has a 50 ns of 16 ns. This product has a 50 ns of 16 ns. Maximum duty cycle of 100 %
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

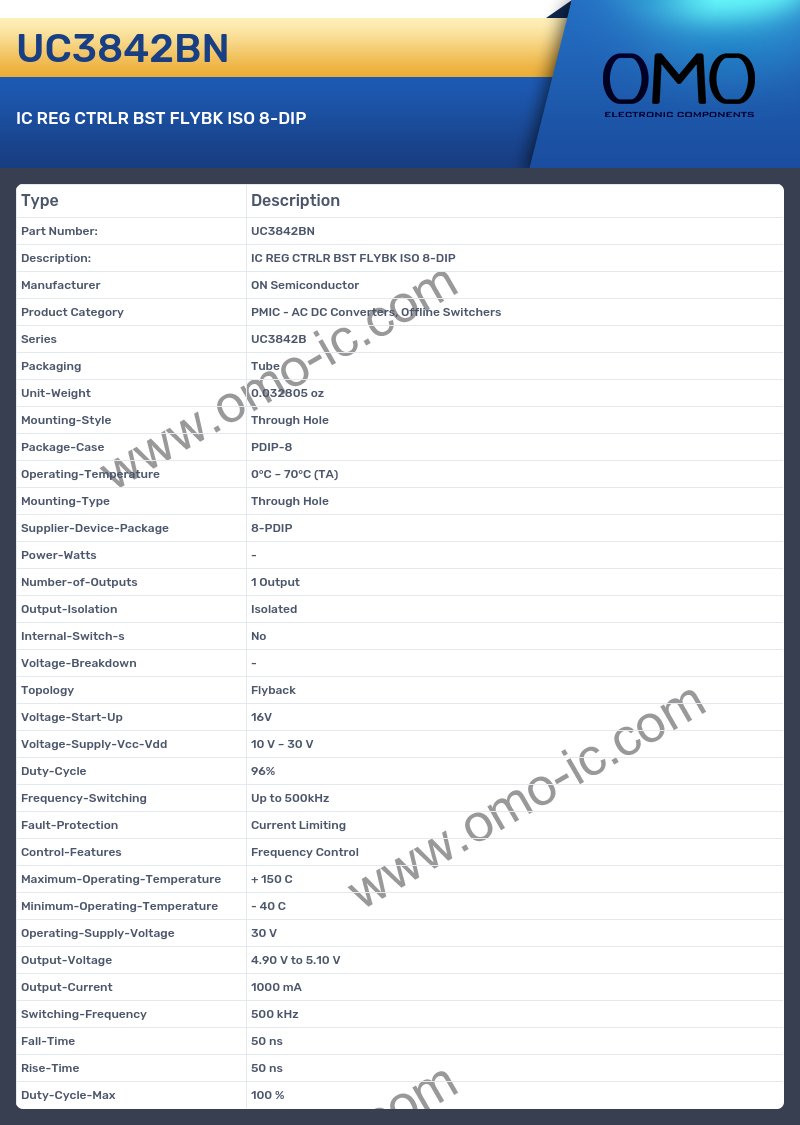

UC3842BN Specifications
