| Mfr. #: | UC3823BDWTR |
|---|---|
| Өндіруші: | Texas Instruments |
| Сипаттама: | Switching Controllers High Speed PWM Controlle |
| Өміршеңдік кезең: | Осы өндірушіден жаңа. |
| Деректер тізімі: | UC3823BDWTR Деректер тізімі |
Product belongs to the UC3823B series. Tape & Reel (TR) Alternate Packaging is the packaging method for this product Weight of 0.016709 oz SMD/SMT Mounting-Style SOIC-16 Wide Operational temperature range: -55°C ~ 150°C (TJ) Surface Mount mounting type Supplier device package: 16-SOIC Number-of-Outputs: 1 Output Output-Isolation: Non-Isolated This product has No. Topology: Boost, Buck, Flyback, Forward feedback Supply Voltage: 10 V ~ 22 V This product features 'Frequency-Switching' at 1MHz for optimal performance. The Control-Features include Frequency Control, Soft Start function. Maximum operating temperature of + 70 C Minimum operating temperature: 0 C Output current: 2000 mA Switching frequency is 1000 kHz This product has a 20 ns of 16 ns. This product has a 20 ns of 16 ns. Maximum duty cycle of 100 %
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

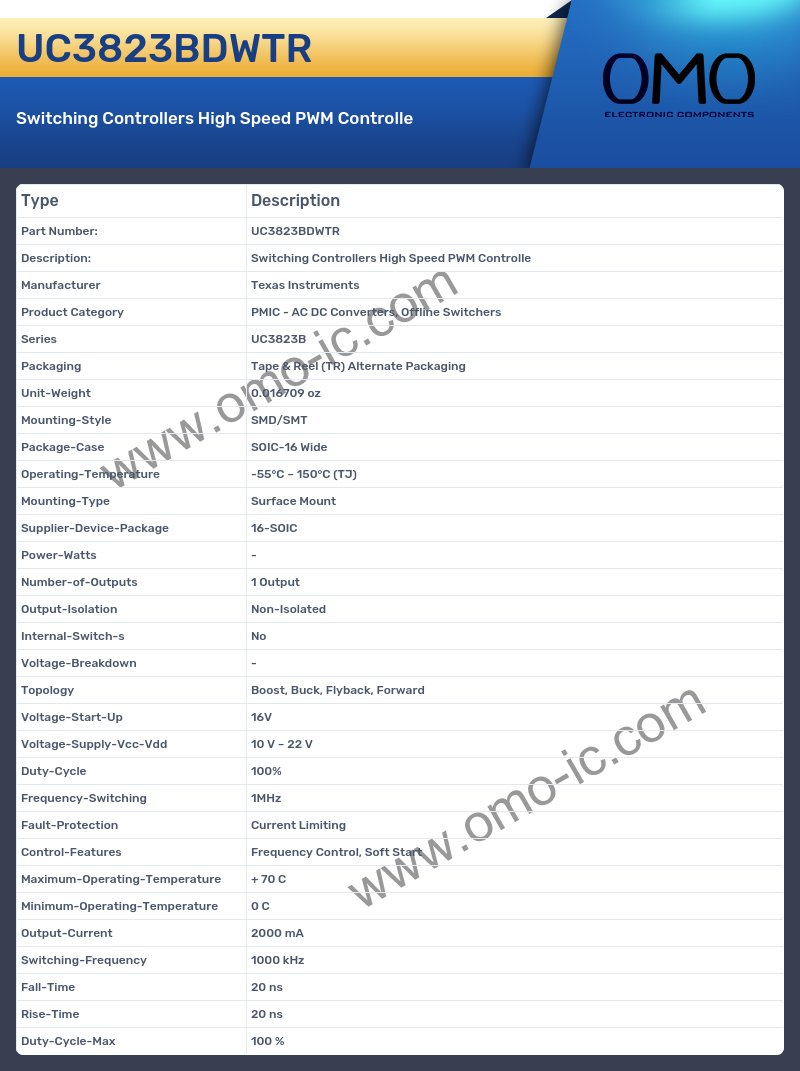

UC3823BDWTR Specifications
A: What is the Series of the product?
Q: The Series of the product is UC3823B.
A: Is the cutoff frequency of the product Packaging?
Q: Yes, the product's Packaging is indeed Tape & Reel (TR) Alternate Packaging
A: Is the cutoff frequency of the product Unit-Weight?
Q: Yes, the product's Unit-Weight is indeed 0.016709 oz
A: What is the Mounting-Style of the product?
Q: The Mounting-Style of the product is SMD/SMT.
A: Is the cutoff frequency of the product Package-Case?
Q: Yes, the product's Package-Case is indeed SOIC-16 Wide
A: At what frequency does the Operating-Temperature?
Q: The product Operating-Temperature is -55°C ~ 150°C (TJ).
A: Is the cutoff frequency of the product Mounting-Type?
Q: Yes, the product's Mounting-Type is indeed Surface Mount
A: At what frequency does the Supplier-Device-Package?
Q: The product Supplier-Device-Package is 16-SOIC.
A: At what frequency does the Number-of-Outputs?
Q: The product Number-of-Outputs is 1 Output.
A: What is the Output-Isolation of the product?
Q: The Output-Isolation of the product is Non-Isolated.
A: Is the cutoff frequency of the product Internal-Switch-s?
Q: Yes, the product's Internal-Switch-s is indeed No
A: What is the Topology of the product?
Q: The Topology of the product is Boost, Buck, Flyback, Forward.
A: Is the cutoff frequency of the product Voltage-Supply-Vcc-Vdd?
Q: Yes, the product's Voltage-Supply-Vcc-Vdd is indeed 10 V ~ 22 V
A: What is the Frequency-Switching of the product?
Q: The Frequency-Switching of the product is 1MHz.
A: At what frequency does the Control-Features?
Q: The product Control-Features is Frequency Control, Soft Start.
A: What is the Maximum-Operating-Temperature of the product?
Q: The Maximum-Operating-Temperature of the product is + 70 C.
A: What is the Minimum-Operating-Temperature of the product?
Q: The Minimum-Operating-Temperature of the product is 0 C.
A: At what frequency does the Output-Current?
Q: The product Output-Current is 2000 mA.
A: What is the Switching-Frequency of the product?
Q: The Switching-Frequency of the product is 1000 kHz.
A: What is the Fall-Time of the product?
Q: The Fall-Time of the product is 20 ns.
A: What is the Rise-Time of the product?
Q: The Rise-Time of the product is 20 ns.
A: At what frequency does the Duty-Cycle-Max?
Q: The product Duty-Cycle-Max is 100 %.
