UC3709DW Overview

Product belongs to the UC3709 series. Type: High Speed Tube is the packaging method for this product Weight of 0.016709 oz SMD/SMT Mounting-Style Configuration Inverting Number-of-Outputs: 2 Power-off control: 1000 mW Maximum operating temperature of + 70 C Minimum operating temperature: 0 C 12 mA is 92 nA. This product has a 80 ns of 16 ns. This product has a 80 ns of 16 ns. Minimum supply voltage is 5 V SOIC-16 Wide Number-of-Drivers: 2 Driver

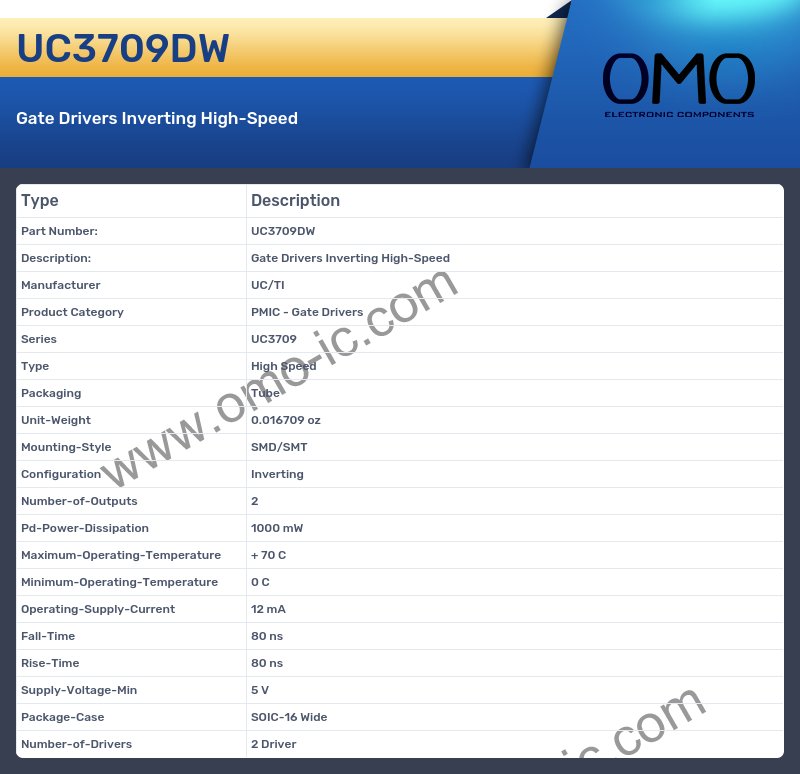

UC3709DW Image

UC3709DW Specifications

• Manufacturer UC/TI
• Product Category PMIC - Gate Drivers
• Series UC3709
• Type High Speed
• Packaging Tube
• Unit-Weight 0.016709 oz
• Mounting-Style SMD/SMT
• Configuration Inverting
• Number-of-Outputs 2
• Pd-Power-Dissipation 1000 mW
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Operating-Supply-Current 12 mA
• Fall-Time 80 ns
• Rise-Time 80 ns
• Supply-Voltage-Min 5 V
• Package-Case SOIC-16 Wide
• Number-of-Drivers 2 Driver
