UC2525BDWTRG4

UC2525BDWTRG4 Overview

Product belongs to the - series. Tape & Reel (TR) Alternate Packaging is the packaging method for this product 16-SOIC (0.295", 7.50mm Width) Operational temperature range: -40°C ~ 85°C (TA) Output-Type: Transistor Driver Product function is Step-Up, Step-Up/Step-Down. Supplier device package: 16-SOIC Number-of-Outputs: 2 Topology: Boost, Flyback, Forward Converter, Full-Bridge, Half-Bridge, Push-Pull feedback Supply Voltage: 8 V ~ 35 V This product features 'Frequency-Switching' at 100Hz ~ 400kHz for optimal performance. The Control-Features include Dead Time Control, Frequency Control, Ramp, Soft Start function. The Positive. Output-Phases: 1 Maximum duty cycle of 0.49 The value of Yes is included as a product attribute. Yes enabled Serial Interfaces: -

UC2525BDWTRG4 Image

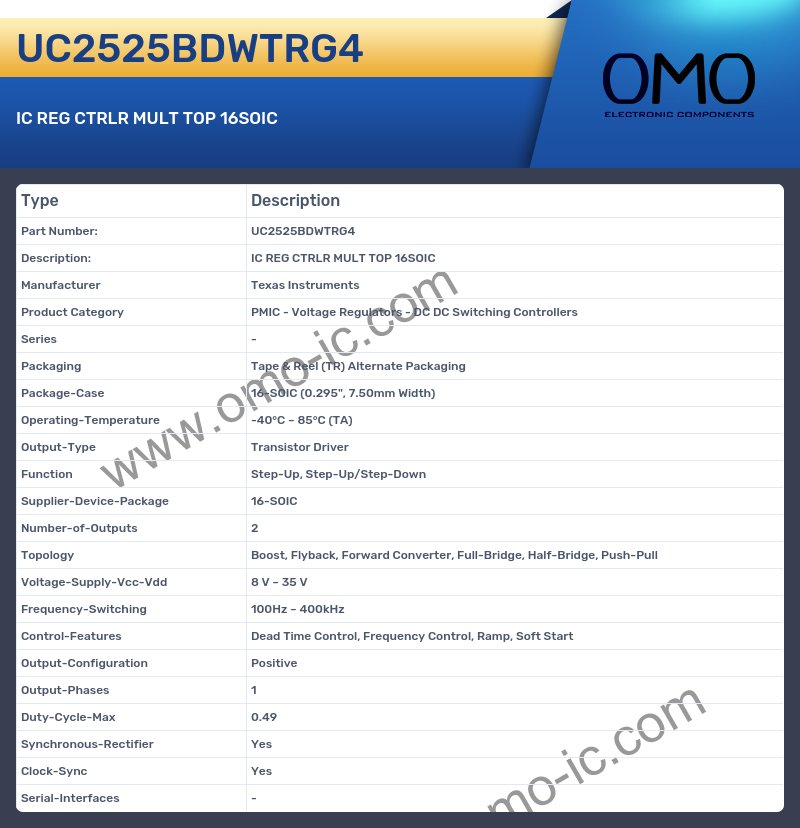

UC2525BDWTRG4 Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - DC DC Switching Controllers
• Series -
• Packaging Tape & Reel (TR) Alternate Packaging
• Package-Case 16-SOIC (0.295", 7.50mm Width)
• Operating-Temperature -40°C ~ 85°C (TA)
• Output-Type Transistor Driver
• Function Step-Up, Step-Up/Step-Down
• Supplier-Device-Package 16-SOIC
• Number-of-Outputs 2
• Topology Boost, Flyback, Forward Converter, Full-Bridge, Half-Bridge, Push-Pull
• Voltage-Supply-Vcc-Vdd 8 V ~ 35 V
• Frequency-Switching 100Hz ~ 400kHz
• Control-Features Dead Time Control, Frequency Control, Ramp, Soft Start
• Output-Configuration Positive
• Output-Phases 1
• Duty-Cycle-Max 0.49
• Synchronous-Rectifier Yes
• Clock-Sync Yes
• Serial-Interfaces -
