TR136

TR136 Overview

Product belongs to the 500V to 1000V Transistors series. Tube is the packaging method for this product Weight of 0.081130 oz Through Hole Mounting-Style TO-220 Configuration Single Power-off control: 60 W Maximum operating temperature of + 150 C Minimum operating temperature: - 65 C Rated VCEO up to 400 V The transistor polarity is NPN. Saturation voltage between collector and emitter is 1 V 9 V rating of 5 V Max DC collector current: 6 A This product is capable of handling a 3 A continuous collector current. Minimum hfe for DC collector-base gain is 10. 20 of 605.

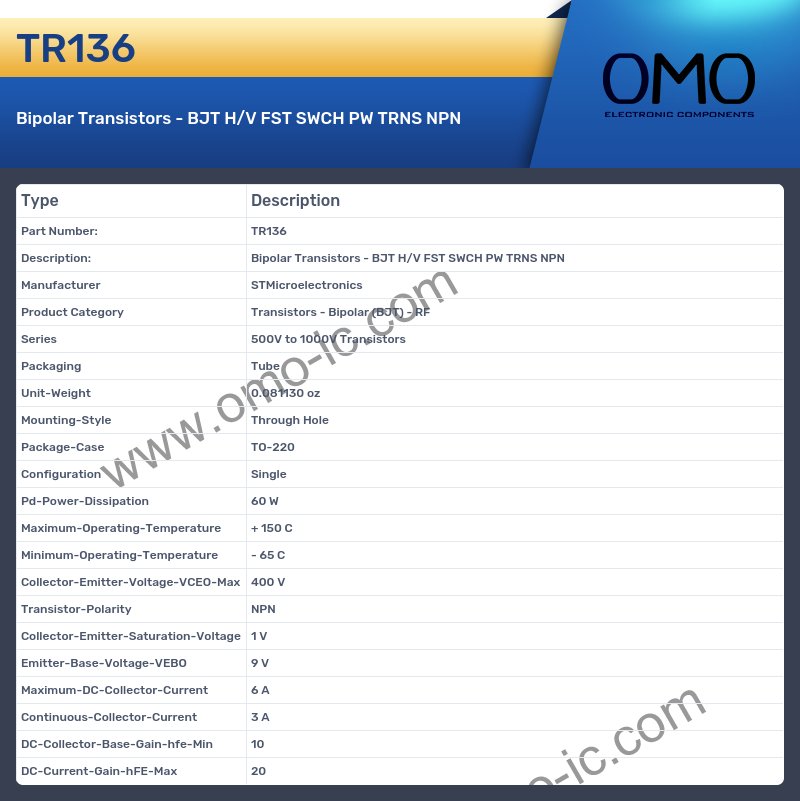

TR136 Image

TR136 Specifications

• Manufacturer STMicroelectronics
• Product Category Transistors - Bipolar (BJT) - RF
• Series 500V to 1000V Transistors
• Packaging Tube
• Unit-Weight 0.081130 oz
• Mounting-Style Through Hole
• Package-Case TO-220
• Configuration Single
• Pd-Power-Dissipation 60 W
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 65 C
• Collector-Emitter-Voltage-VCEO-Max 400 V
• Transistor-Polarity NPN
• Collector-Emitter-Saturation-Voltage 1 V
• Emitter-Base-Voltage-VEBO 9 V
• Maximum-DC-Collector-Current 6 A
• Continuous-Collector-Current 3 A
• DC-Collector-Base-Gain-hfe-Min 10
• DC-Current-Gain-hFE-Max 20
