TPS76138DBVT

TPS76138DBVT Overview

Product belongs to the TPS76138 series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.000459 oz SMD/SMT Mounting-Style SOT-23-5 Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Output-Type: Fixed Supplier device package: SOT-23-5 4.18 V ~ 16 V voltage input Number-of-Outputs: 1 Output Output voltage: 3.8V Positive Fixed regulator topology The product has 1 of 1. Power-off control: 0.555 W Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Output voltage: 3.8 V Maximum Input Voltage: 16 V Output current: 100 mA The product's + 4.18 V is 5.1 V. The voltage regulation accuracy of this product is 2 %. Input bias current of 90 uA This product has a 115 uA of 7 mA, making it ideal for low-power applications. The 170 mV. The maximum 280 mV is 360 mV. This product's 10 mV is 0.01 %/V. This product has an - of 2.7 V to 5.5 V.

TPS76138DBVT Image

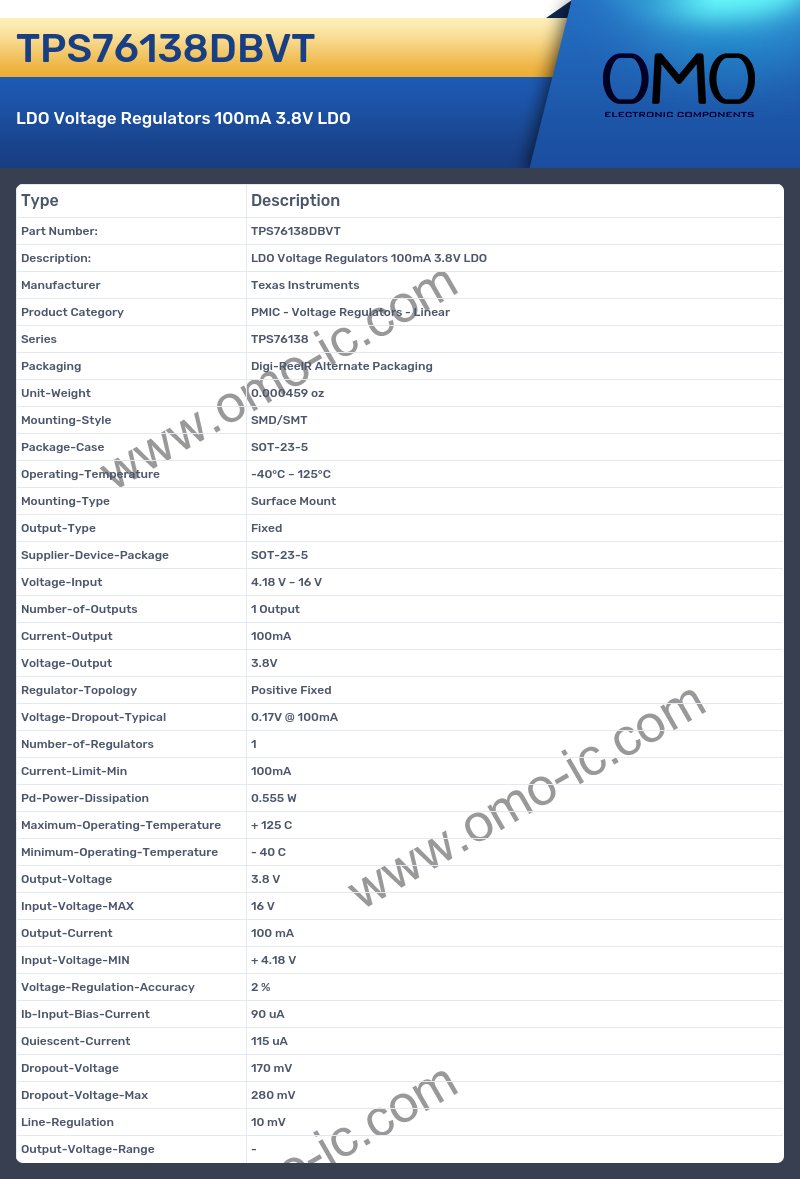

TPS76138DBVT Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - Linear
• Series TPS76138
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.000459 oz
• Mounting-Style SMD/SMT
• Package-Case SOT-23-5
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type Fixed
• Supplier-Device-Package SOT-23-5
• Voltage-Input 4.18 V ~ 16 V
• Number-of-Outputs 1 Output
• Current-Output 100mA
• Voltage-Output 3.8V
• Regulator-Topology Positive Fixed
• Voltage-Dropout-Typical 0.17V @ 100mA
• Number-of-Regulators 1
• Current-Limit-Min 100mA
• Pd-Power-Dissipation 0.555 W
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 3.8 V
• Input-Voltage-MAX 16 V
• Output-Current 100 mA
• Input-Voltage-MIN + 4.18 V
• Voltage-Regulation-Accuracy 2 %
• Ib-Input-Bias-Current 90 uA
• Quiescent-Current 115 uA
• Dropout-Voltage 170 mV
• Dropout-Voltage-Max 280 mV
• Line-Regulation 10 mV
• Output-Voltage-Range -
