TPS6735IPE4

TPS6735IPE4 Overview

Product belongs to the TPS6735 series. Type: Voltage Converter Tube Alternate Packaging is the packaging method for this product Weight of 0.015535 oz Through Hole Mounting-Style Wide - 40 C to + 85 C operating temperature range for diverse applications PDIP-8 Operational temperature range: -40°C ~ 85°C (TA) Through Hole mounting type Output-Type: Fixed Product function is Step-Up, Step-Down. Supplier device package: 8-PDIP Number-of-Outputs: 1 Topology: Buck feedback This product features 'Frequency-Switching' at 160kHz for optimal performance. The Negative. Minimum fixed output voltage is -5V . The value of No is included as a product attribute. The minimum input voltage is 4V. The 6.2V. Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Output voltage: - 5 V Input Voltage Range: 4 V to 6.2 V Maximum Input Voltage: 6.2 V Output current: 200 mA Switching frequency is 160 kHz The product's 4 V is 5.1 V. Load regulation is 0.2 %. The TPS6735EVM.

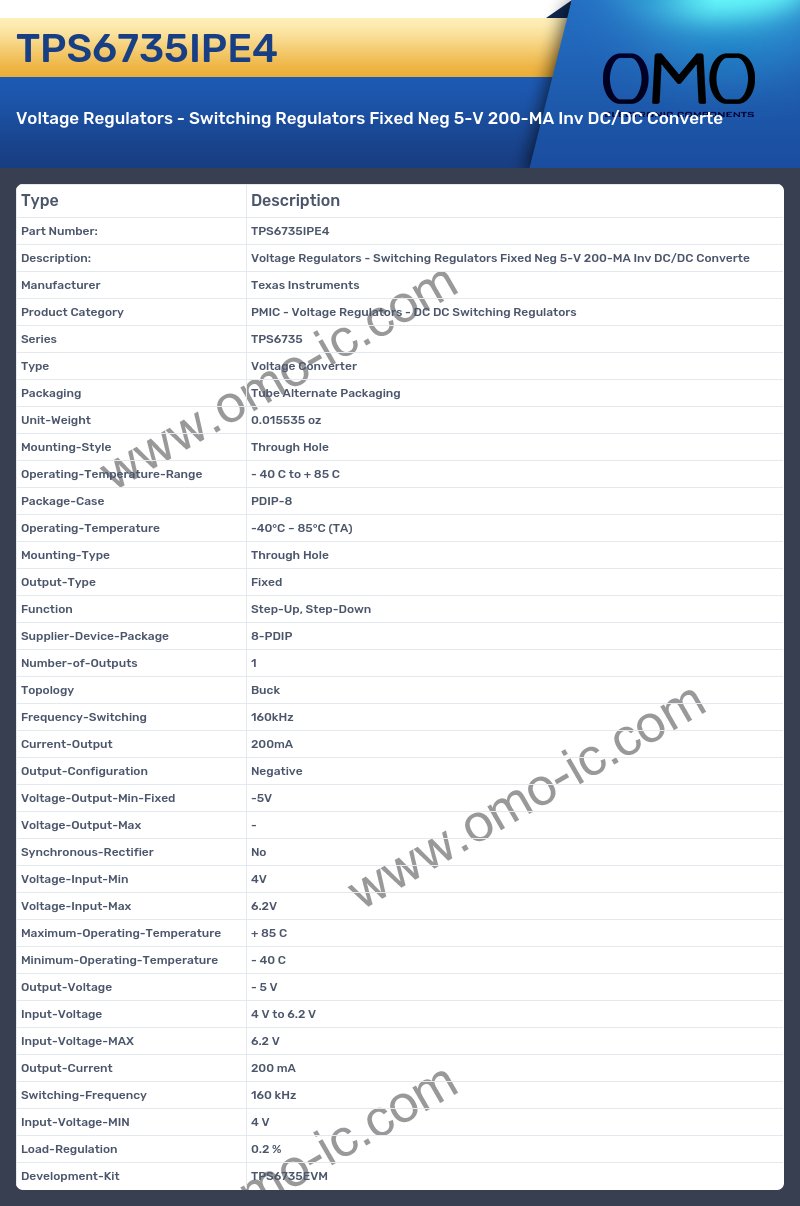

TPS6735IPE4 Image

TPS6735IPE4 Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - DC DC Switching Regulators
• Series TPS6735
• Type Voltage Converter
• Packaging Tube Alternate Packaging
• Unit-Weight 0.015535 oz
• Mounting-Style Through Hole
• Operating-Temperature-Range - 40 C to + 85 C
• Package-Case PDIP-8
• Operating-Temperature -40°C ~ 85°C (TA)
• Mounting-Type Through Hole
• Output-Type Fixed
• Function Step-Up, Step-Down
• Supplier-Device-Package 8-PDIP
• Number-of-Outputs 1
• Topology Buck
• Frequency-Switching 160kHz
• Current-Output 200mA
• Output-Configuration Negative
• Voltage-Output-Min-Fixed -5V
• Voltage-Output-Max -
• Synchronous-Rectifier No
• Voltage-Input-Min 4V
• Voltage-Input-Max 6.2V
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage - 5 V
• Input-Voltage 4 V to 6.2 V
• Input-Voltage-MAX 6.2 V
• Output-Current 200 mA
• Switching-Frequency 160 kHz
• Input-Voltage-MIN 4 V
• Load-Regulation 0.2 %
• Development-Kit TPS6735EVM
