TPS6209733RWKT

TPS6209733RWKT Overview

Product belongs to the iDCS-Control series. Type: High Efficiency Converter Digi-ReelR Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style Trade name: HotRod. Wide - 40 C to + 125 C operating temperature range for diverse applications VQFN-11 Operational temperature range: -40°C ~ 125°C (TJ) Surface Mount mounting type Output-Type: Fixed Product function is Step-Down. Supplier device package: 11-VQFN (2x2) Number-of-Outputs: 1 Topology: Buck feedback This product features 'Frequency-Switching' at 1.5MHz ~ 2.5MHz for optimal performance. The Positive. Minimum fixed output voltage is 3.3V . The value of Yes is included as a product attribute. The minimum input voltage is 2.5V. The 6V. Power-off control: Shutdown Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Output voltage: 3.3 V Input Voltage Range: 2.5 V to 6 V Maximum Input Voltage: 6 V Output current: 0 A to 2 A Switching frequency is Programmable The product's 2.5 V is 5.1 V. Load regulation is 0.2 %/A.

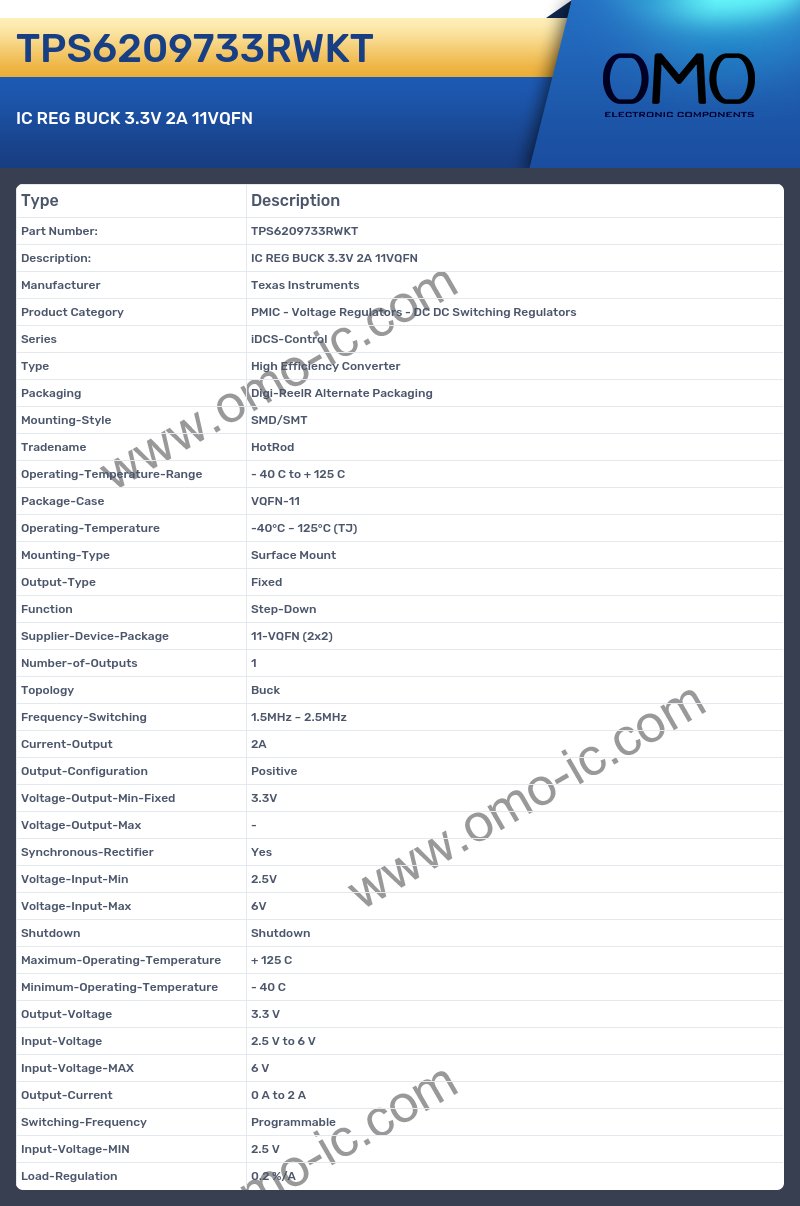

TPS6209733RWKT Image

TPS6209733RWKT Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - DC DC Switching Regulators
• Series iDCS-Control
• Type High Efficiency Converter
• Packaging Digi-ReelR Alternate Packaging
• Mounting-Style SMD/SMT
• Tradename HotRod
• Operating-Temperature-Range - 40 C to + 125 C
• Package-Case VQFN-11
• Operating-Temperature -40°C ~ 125°C (TJ)
• Mounting-Type Surface Mount
• Output-Type Fixed
• Function Step-Down
• Supplier-Device-Package 11-VQFN (2x2)
• Number-of-Outputs 1
• Topology Buck
• Frequency-Switching 1.5MHz ~ 2.5MHz
• Current-Output 2A
• Output-Configuration Positive
• Voltage-Output-Min-Fixed 3.3V
• Voltage-Output-Max -
• Synchronous-Rectifier Yes
• Voltage-Input-Min 2.5V
• Voltage-Input-Max 6V
• Shutdown Shutdown
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 3.3 V
• Input-Voltage 2.5 V to 6 V
• Input-Voltage-MAX 6 V
• Output-Current 0 A to 2 A
• Switching-Frequency Programmable
• Input-Voltage-MIN 2.5 V
• Load-Regulation 0.2 %/A
