TPS54335ADDAR

TPS54335ADDAR Overview

Product belongs to the TPS54335A series. Type: Synchronous Step-Down DC-DC Converter Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.002677 oz SMD/SMT Mounting-Style Wide - 40 C to + 85 C operating temperature range for diverse applications SOIC-8 Operational temperature range: -40°C ~ 150°C (TJ) Surface Mount mounting type Output-Type: Adjustable Product function is Step-Down. Supplier device package: 8-SO PowerPad Number-of-Outputs: 1 Topology: Buck feedback This product features 'Frequency-Switching' at 50kHz ~ 1.5MHz for optimal performance. The Positive. Minimum fixed output voltage is 0.8V . The value of Yes is included as a product attribute. The minimum input voltage is 4.5V. The 28V. Power-off control: Shutdown Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Output voltage: 800 mV to 24 V 310 uA is 92 nA. Input Voltage Range: 4.5 V to 28 V Maximum Input Voltage: 28 V Output current: 3 A Switching frequency is 50 kHz to 1.5 MHz The product's 4.5 V is 5.1 V. Minimum supply voltage is 4.5 V

TPS54335ADDAR Image

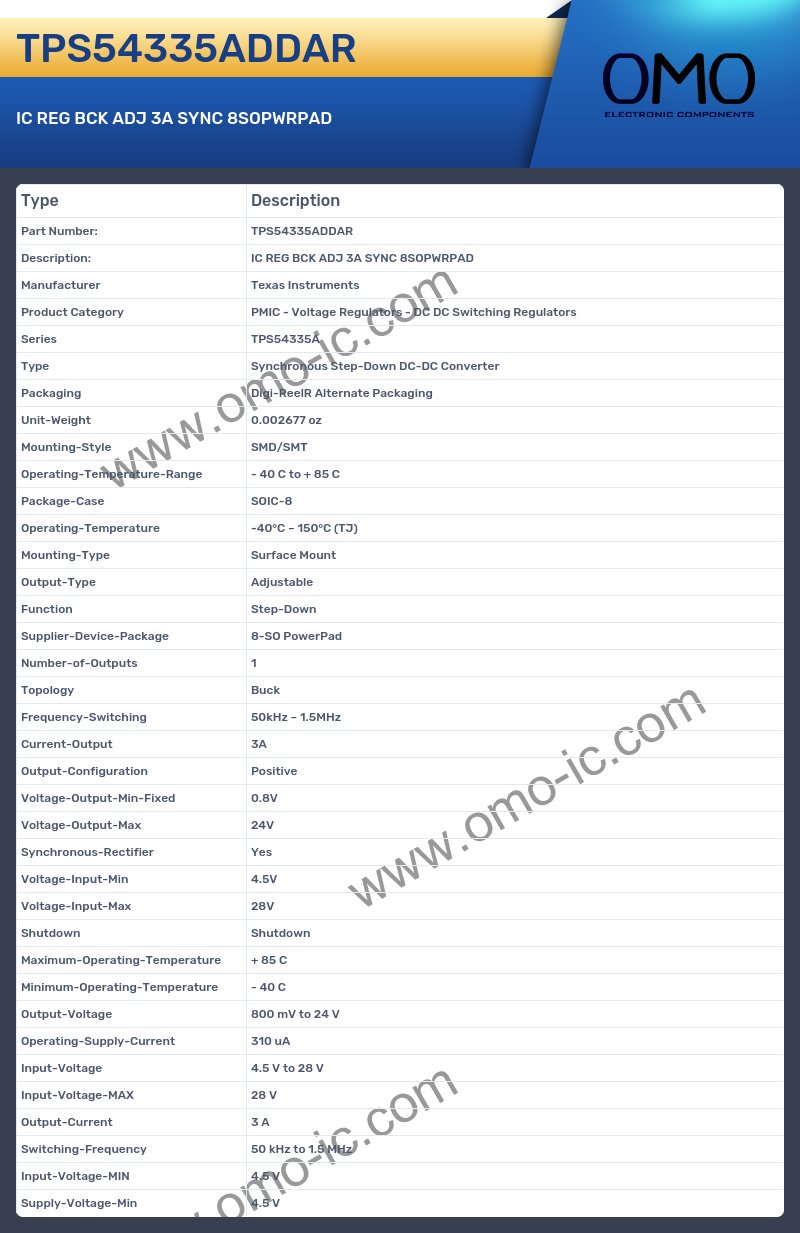

TPS54335ADDAR Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - DC DC Switching Regulators
• Series TPS54335A
• Type Synchronous Step-Down DC-DC Converter
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.002677 oz
• Mounting-Style SMD/SMT
• Operating-Temperature-Range - 40 C to + 85 C
• Package-Case SOIC-8
• Operating-Temperature -40°C ~ 150°C (TJ)
• Mounting-Type Surface Mount
• Output-Type Adjustable
• Function Step-Down
• Supplier-Device-Package 8-SO PowerPad
• Number-of-Outputs 1
• Topology Buck
• Frequency-Switching 50kHz ~ 1.5MHz
• Current-Output 3A
• Output-Configuration Positive
• Voltage-Output-Min-Fixed 0.8V
• Voltage-Output-Max 24V
• Synchronous-Rectifier Yes
• Voltage-Input-Min 4.5V
• Voltage-Input-Max 28V
• Shutdown Shutdown
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 800 mV to 24 V
• Operating-Supply-Current 310 uA
• Input-Voltage 4.5 V to 28 V
• Input-Voltage-MAX 28 V
• Output-Current 3 A
• Switching-Frequency 50 kHz to 1.5 MHz
• Input-Voltage-MIN 4.5 V
• Supply-Voltage-Min 4.5 V
