TPS5431DDAR

TPS5431DDAR Overview

Product belongs to the TPS5431 series. Type: DC/DC Converter Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.002490 oz SMD/SMT Mounting-Style Wide - 40 C to + 125 C operating temperature range for diverse applications HSOP-8 Operational temperature range: -40°C ~ 125°C (TJ) Surface Mount mounting type Output-Type: Adjustable Product function is Step-Down. Supplier device package: 8-SO PowerPad Number-of-Outputs: 1 Topology: Buck feedback This product features 'Frequency-Switching' at 500kHz for optimal performance. The Positive. Minimum fixed output voltage is 1.221V . The value of No is included as a product attribute. The minimum input voltage is 5.5V. The 23V. Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Output voltage: Adj to 1.22 V Input Voltage Range: 5.5 V to 23 V Maximum Input Voltage: 23 V Output current: 3 A Switching frequency is 500 kHz The product's 5.5 V is 5.1 V. The TPS5431EVM-173. This product is also known as HPA00295DDAR and can be referred to by either part number.

TPS5431DDAR Image

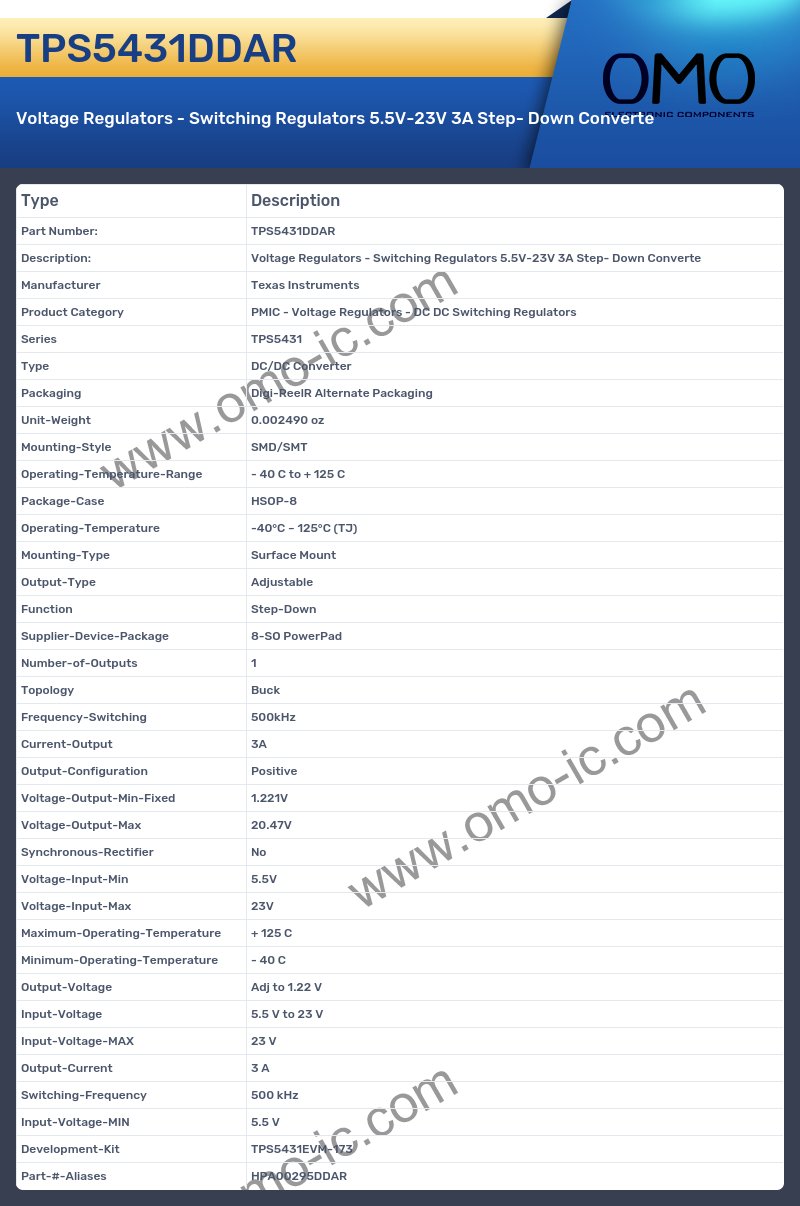

TPS5431DDAR Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - DC DC Switching Regulators
• Series TPS5431
• Type DC/DC Converter
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.002490 oz
• Mounting-Style SMD/SMT
• Operating-Temperature-Range - 40 C to + 125 C
• Package-Case HSOP-8
• Operating-Temperature -40°C ~ 125°C (TJ)
• Mounting-Type Surface Mount
• Output-Type Adjustable
• Function Step-Down
• Supplier-Device-Package 8-SO PowerPad
• Number-of-Outputs 1
• Topology Buck
• Frequency-Switching 500kHz
• Current-Output 3A
• Output-Configuration Positive
• Voltage-Output-Min-Fixed 1.221V
• Voltage-Output-Max 20.47V
• Synchronous-Rectifier No
• Voltage-Input-Min 5.5V
• Voltage-Input-Max 23V
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage Adj to 1.22 V
• Input-Voltage 5.5 V to 23 V
• Input-Voltage-MAX 23 V
• Output-Current 3 A
• Switching-Frequency 500 kHz
• Input-Voltage-MIN 5.5 V
• Development-Kit TPS5431EVM-173
• Part-#-Aliases HPA00295DDAR
