TPS54239DDA

TPS54239DDA Overview

Product belongs to the SWIFT, D-CAP2 series. Type: Step-Down Converter Tube Alternate Packaging is the packaging method for this product Weight of 0.002490 oz SMD/SMT Mounting-Style Trade name: D-CAP2. Wide - 40 C to + 85 C operating temperature range for diverse applications HSOP-8 Operational temperature range: -40°C ~ 85°C (TA) Surface Mount mounting type Output-Type: Adjustable Product function is Step-Down. Supplier device package: 8-SO PowerPad Number-of-Outputs: 1 Topology: Buck feedback This product features 'Frequency-Switching' at 600kHz for optimal performance. The Positive. Minimum fixed output voltage is 0.76V . The value of Yes is included as a product attribute. The minimum input voltage is 4.5V. The 23V. Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Output voltage: 0.76 V to 7 V Input Voltage Range: 4.5 V to 23 V Maximum Input Voltage: 23 V Output current: 2 A Switching frequency is 600 kHz The product's 4.5 V is 5.1 V. Minimum supply voltage is 4.5 V

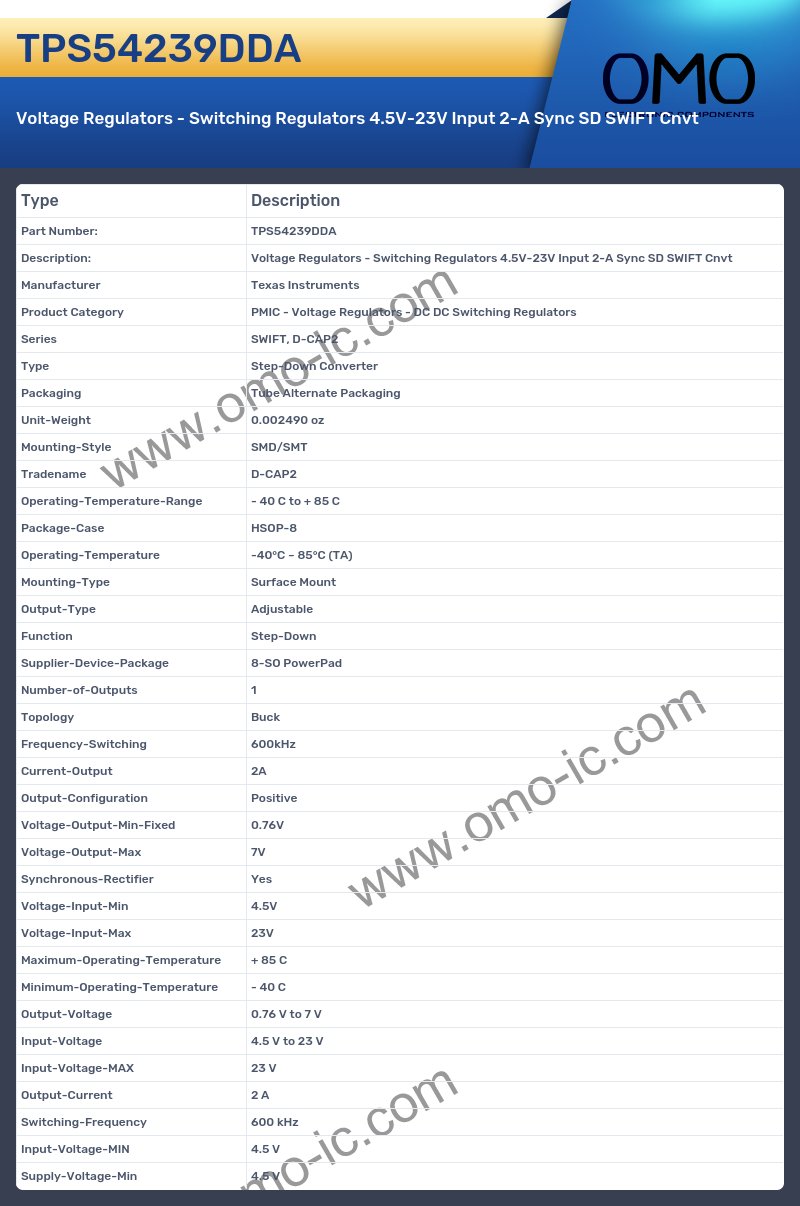

TPS54239DDA Image

TPS54239DDA Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - DC DC Switching Regulators
• Series SWIFT, D-CAP2
• Type Step-Down Converter
• Packaging Tube Alternate Packaging
• Unit-Weight 0.002490 oz
• Mounting-Style SMD/SMT
• Tradename D-CAP2
• Operating-Temperature-Range - 40 C to + 85 C
• Package-Case HSOP-8
• Operating-Temperature -40°C ~ 85°C (TA)
• Mounting-Type Surface Mount
• Output-Type Adjustable
• Function Step-Down
• Supplier-Device-Package 8-SO PowerPad
• Number-of-Outputs 1
• Topology Buck
• Frequency-Switching 600kHz
• Current-Output 2A
• Output-Configuration Positive
• Voltage-Output-Min-Fixed 0.76V
• Voltage-Output-Max 7V
• Synchronous-Rectifier Yes
• Voltage-Input-Min 4.5V
• Voltage-Input-Max 23V
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 0.76 V to 7 V
• Input-Voltage 4.5 V to 23 V
• Input-Voltage-MAX 23 V
• Output-Current 2 A
• Switching-Frequency 600 kHz
• Input-Voltage-MIN 4.5 V
• Supply-Voltage-Min 4.5 V
