TPS53124PW Overview

Product belongs to the D-CAP series. This product is categorized as Switching Controllers Tube is the packaging method for this product Weight of 0.004145 oz SMD/SMT Mounting-Style TSSOP-28 Operational temperature range: -40°C ~ 85°C (TA) Output-Type: Transistor Driver Product function is Step-Down. Supplier device package: 28-TSSOP Number-of-Outputs: 2 Topology: Buck feedback Supply Voltage: 4.5 V ~ 24 V This product features 'Frequency-Switching' at - for optimal performance. The Control-Features include Enable function. The Positive. Output-Phases: 1 Maximum duty cycle of 89 % The value of Yes is included as a product attribute. No enabled Serial Interfaces: - Power-off control: Yes The product's Non-Isolated is non-isolated. Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Output voltage: 760 mV to 5.5 V 450 uA is 92 nA. Input Voltage Range: 4.5 V to 24 V Output current: 15 A Switching frequency is 350 kHz The TPS53124EVM.

TPS53124PW Image

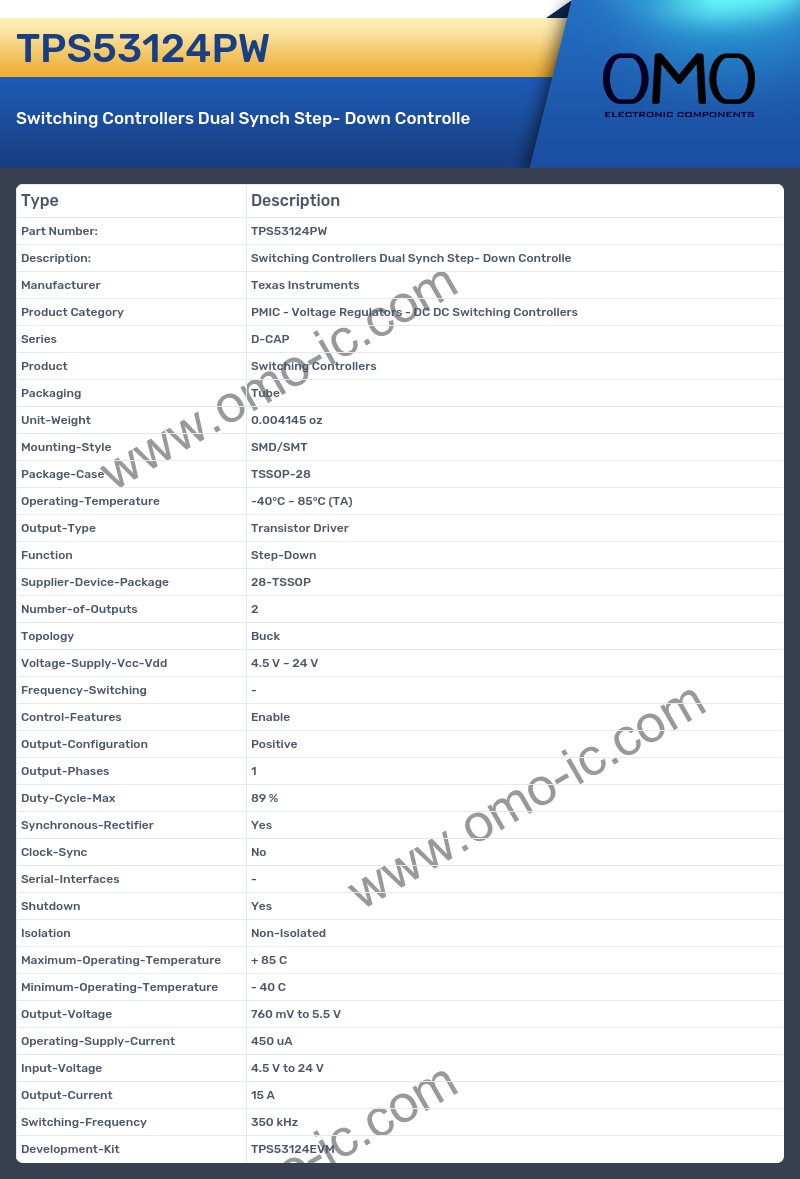

TPS53124PW Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - DC DC Switching Controllers
• Series D-CAP
• Product Switching Controllers
• Packaging Tube
• Unit-Weight 0.004145 oz
• Mounting-Style SMD/SMT
• Package-Case TSSOP-28
• Operating-Temperature -40°C ~ 85°C (TA)
• Output-Type Transistor Driver
• Function Step-Down
• Supplier-Device-Package 28-TSSOP
• Number-of-Outputs 2
• Topology Buck
• Voltage-Supply-Vcc-Vdd 4.5 V ~ 24 V
• Frequency-Switching -
• Control-Features Enable
• Output-Configuration Positive
• Output-Phases 1
• Duty-Cycle-Max 89 %
• Synchronous-Rectifier Yes
• Clock-Sync No
• Serial-Interfaces -
• Shutdown Yes
• Isolation Non-Isolated
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 760 mV to 5.5 V
• Operating-Supply-Current 450 uA
• Input-Voltage 4.5 V to 24 V
• Output-Current 15 A
• Switching-Frequency 350 kHz
• Development-Kit TPS53124EVM
