TPS40422RHAT

TPS40422RHAT Overview

Product belongs to the TPS40422 series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.003668 oz SMD/SMT Mounting-Style VQFN-40 Operational temperature range: -40°C ~ 125°C (TJ) Output-Type: Transistor Driver Product function is Step-Down. Supplier device package: 40-VQFN (6x6) Number-of-Outputs: 2 Topology: Buck feedback Supply Voltage: 4.5 V ~ 20 V This product features 'Frequency-Switching' at 100kHz ~ 1MHz for optimal performance. The Control-Features include Frequency Control, Power Good function. The Positive. Output-Phases: 2 Maximum duty cycle of The value of Yes is included as a product attribute. Yes enabled Serial Interfaces: PMBus Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C This product operates at a 4.5 V to 20 V supply voltage for reliable performance. Output voltage: 0.6 V to 5.6 V Output current: 120 mA Switching frequency is 1 MHz This product has a 12 ns of 16 ns. This product has a 15 ns of 16 ns. The TPS40422EVM-091.

TPS40422RHAT Image

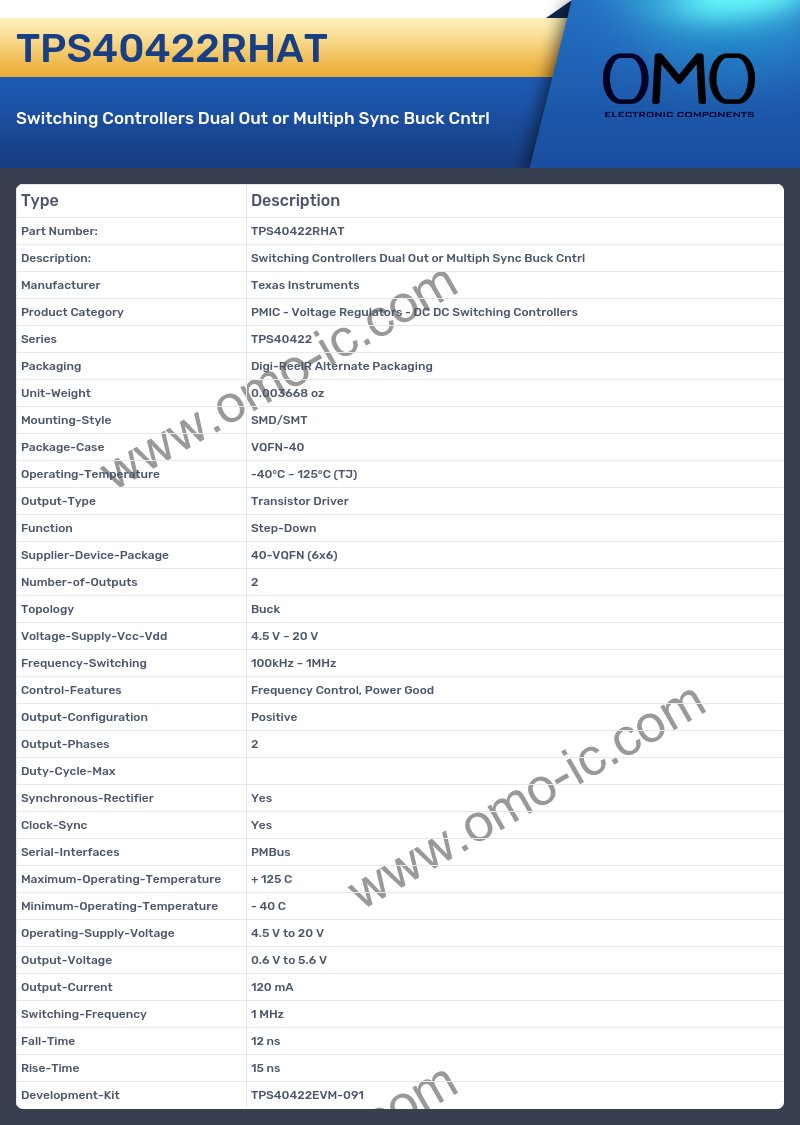

TPS40422RHAT Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - DC DC Switching Controllers
• Series TPS40422
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.003668 oz
• Mounting-Style SMD/SMT
• Package-Case VQFN-40
• Operating-Temperature -40°C ~ 125°C (TJ)
• Output-Type Transistor Driver
• Function Step-Down
• Supplier-Device-Package 40-VQFN (6x6)
• Number-of-Outputs 2
• Topology Buck
• Voltage-Supply-Vcc-Vdd 4.5 V ~ 20 V
• Frequency-Switching 100kHz ~ 1MHz
• Control-Features Frequency Control, Power Good
• Output-Configuration Positive
• Output-Phases 2
• Duty-Cycle-Max
• Synchronous-Rectifier Yes
• Clock-Sync Yes
• Serial-Interfaces PMBus
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 4.5 V to 20 V
• Output-Voltage 0.6 V to 5.6 V
• Output-Current 120 mA
• Switching-Frequency 1 MHz
• Fall-Time 12 ns
• Rise-Time 15 ns
• Development-Kit TPS40422EVM-091
