TPS40060PWP

TPS40060PWP Overview

Product belongs to the TPS40060 series. Tube Alternate Packaging is the packaging method for this product Weight of 0.002212 oz SMD/SMT Mounting-Style HTSSOP-16 Operational temperature range: -40°C ~ 85°C (TA) Output-Type: Transistor Driver Product function is Step-Down. Supplier device package: 16-HTSSOP Number-of-Outputs: 1 Topology: Buck feedback Supply Voltage: 10 V ~ 55 V This product features 'Frequency-Switching' at Up to 1MHz for optimal performance. The Control-Features include Current Limit, Enable, Frequency Control, Soft Start function. The Positive. Output-Phases: 1 Maximum duty cycle of 98 % The value of Yes is included as a product attribute. Yes enabled Serial Interfaces: - Power-off control: Yes Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Output voltage: 0.7 V to 45 V Input Voltage Range: 10 V to 55 V Output current: 200 uA Switching frequency is 300 kHz The TPS40060EVM. This product is also known as HPA00448PWP and can be referred to by either part number.

TPS40060PWP Image

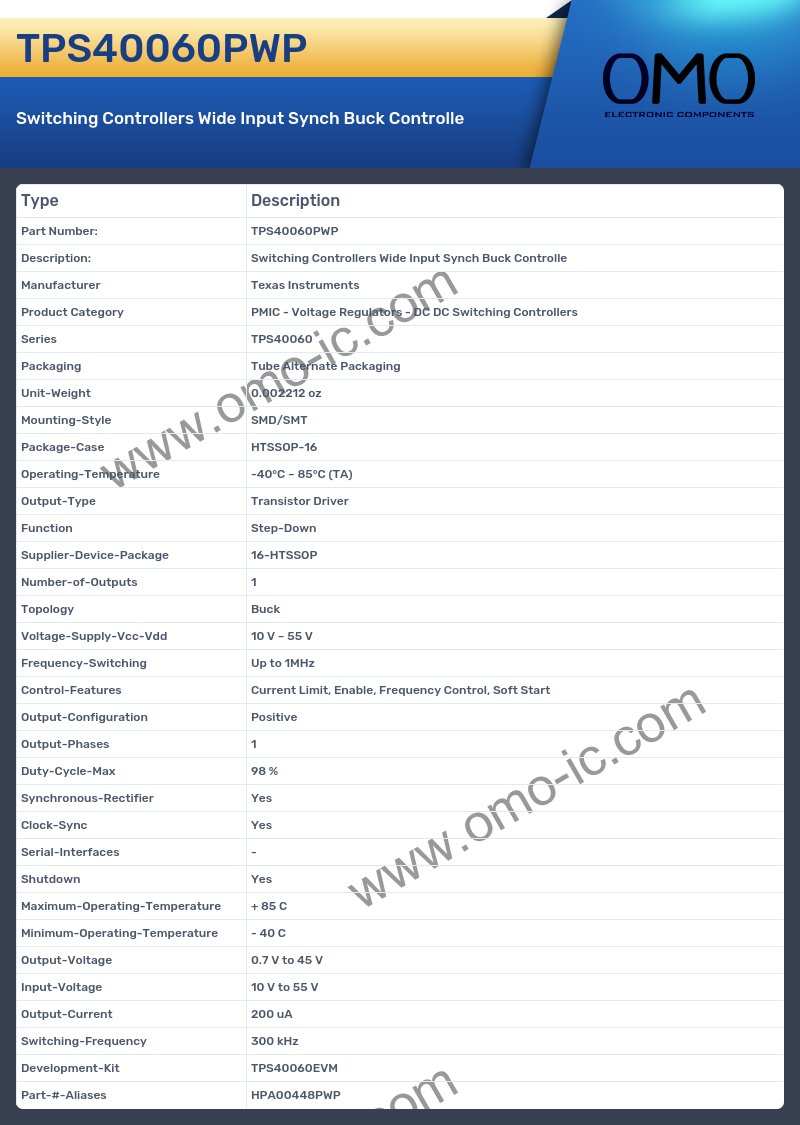

TPS40060PWP Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - DC DC Switching Controllers
• Series TPS40060
• Packaging Tube Alternate Packaging
• Unit-Weight 0.002212 oz
• Mounting-Style SMD/SMT
• Package-Case HTSSOP-16
• Operating-Temperature -40°C ~ 85°C (TA)
• Output-Type Transistor Driver
• Function Step-Down
• Supplier-Device-Package 16-HTSSOP
• Number-of-Outputs 1
• Topology Buck
• Voltage-Supply-Vcc-Vdd 10 V ~ 55 V
• Frequency-Switching Up to 1MHz
• Control-Features Current Limit, Enable, Frequency Control, Soft Start
• Output-Configuration Positive
• Output-Phases 1
• Duty-Cycle-Max 98 %
• Synchronous-Rectifier Yes
• Clock-Sync Yes
• Serial-Interfaces -
• Shutdown Yes
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 0.7 V to 45 V
• Input-Voltage 10 V to 55 V
• Output-Current 200 uA
• Switching-Frequency 300 kHz
• Development-Kit TPS40060EVM
• Part-#-Aliases HPA00448PWP
