TPS3307-25DGN

TPS3307-25DGN Overview

Product belongs to the TPS3307-25 series. Type: Multi-Voltage Supervisor Tube Alternate Packaging is the packaging method for this product Weight of 0.000670 oz SMD/SMT Mounting-Style HVSSOP-8 Operational temperature range: -40°C ~ 85°C (TA) Surface Mount mounting type Output-Type: Push-Pull Supplier device package: 8-MSOP-PowerPad The Push-Pull, Totem Pole. This product's Active High/Active Low. This product has 3 monitored voltages. The reset timeout for this product is 140 ms Minimum. This product's 2.25V, 2.93V, Adj. Power-off control: 2140 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C 15 uA is 92 nA. This product does not have No Backup capability. Maximum supply voltage of 6 V Minimum supply voltage is 2 V This product includes No Watchdog This product's 2.5 V 3.3 V is 2.32 V. This product can only 3 Input at a time. This product features a Manual Reset function that allows for manual reset. This product does not support No Chip Enable. This product does not have No capability. The product's 200 ms is 200 ms. The Adjustable is 2.35 V. Adjustable 2.25 V 2.93 V is set to 2.29 V.

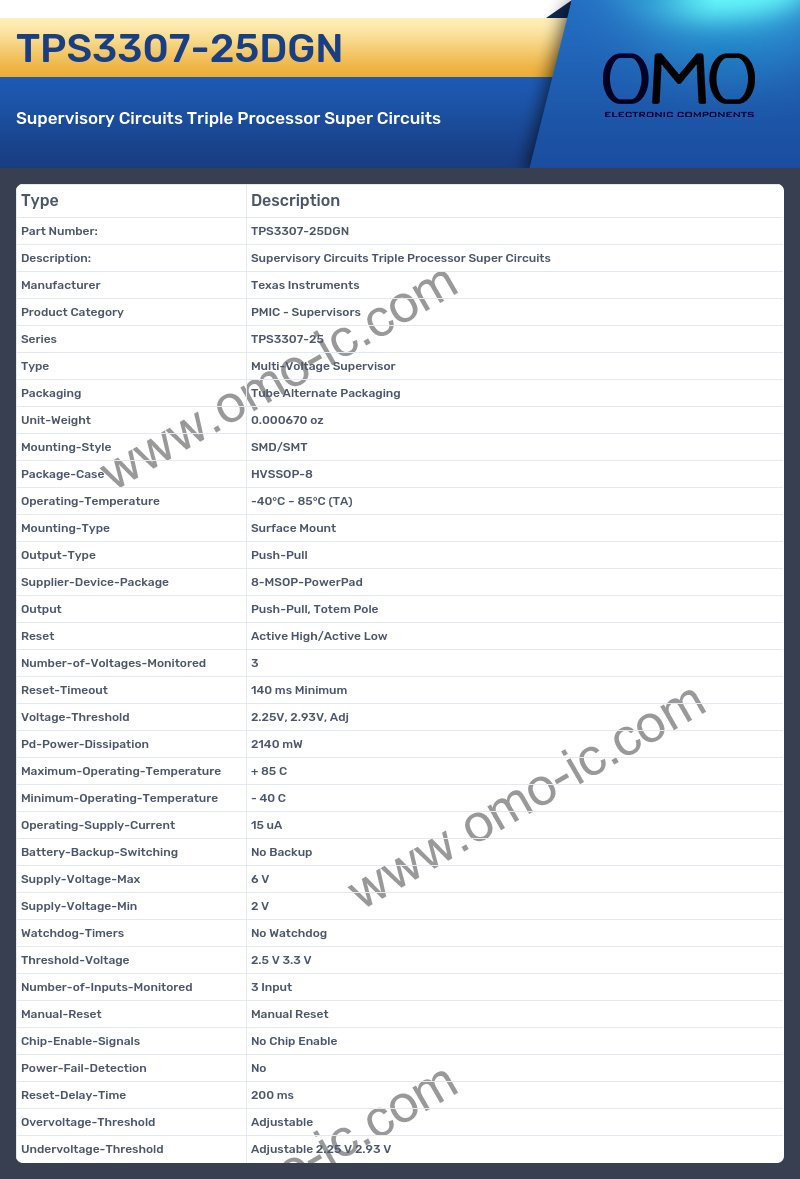

TPS3307-25DGN Image

TPS3307-25DGN Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Supervisors
• Series TPS3307-25
• Type Multi-Voltage Supervisor
• Packaging Tube Alternate Packaging
• Unit-Weight 0.000670 oz
• Mounting-Style SMD/SMT
• Package-Case HVSSOP-8
• Operating-Temperature -40°C ~ 85°C (TA)
• Mounting-Type Surface Mount
• Output-Type Push-Pull
• Supplier-Device-Package 8-MSOP-PowerPad
• Output Push-Pull, Totem Pole
• Reset Active High/Active Low
• Number-of-Voltages-Monitored 3
• Reset-Timeout 140 ms Minimum
• Voltage-Threshold 2.25V, 2.93V, Adj
• Pd-Power-Dissipation 2140 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 15 uA
• Battery-Backup-Switching No Backup
• Supply-Voltage-Max 6 V
• Supply-Voltage-Min 2 V
• Watchdog-Timers No Watchdog
• Threshold-Voltage 2.5 V 3.3 V
• Number-of-Inputs-Monitored 3 Input
• Manual-Reset Manual Reset
• Chip-Enable-Signals No Chip Enable
• Power-Fail-Detection No
• Reset-Delay-Time 200 ms
• Overvoltage-Threshold Adjustable
• Undervoltage-Threshold Adjustable 2.25 V 2.93 V
