TPS22934YZVR

TPS22934YZVR Overview

Product belongs to the TPS22934 series. This product is categorized as Power Switches Digi-ReelR Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style DSBGA-4 The Non-Inverting for this product is CMOS/TTL. Operational temperature range: -40°C ~ 85°C (TA) Output-Type: P-Channel Interface: On/Off Supplier device package: 4-DSBGA (0.9x0.9) The Ratio-Input:Output for this product is 1899/12/30 1:01:00. Number-of-Outputs: 1 Supply Voltage: Not Required The High Side. The 63 mOhm. Voltage-Load range is 1.5 V ~ 3.6 V. Our product delivers a 1A of 50mA for efficient power management. The Switch-Type is General Purpose. Power-off control: 829.04 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product operates at a 1.5 V to 3.6 V supply voltage for reliable performance. Output current: 1 A Maximum supply voltage of 3.6 V Minimum supply voltage is 1.5 V Max on-resistance of 115 mOhms This product's 1 A feature is adjustable.

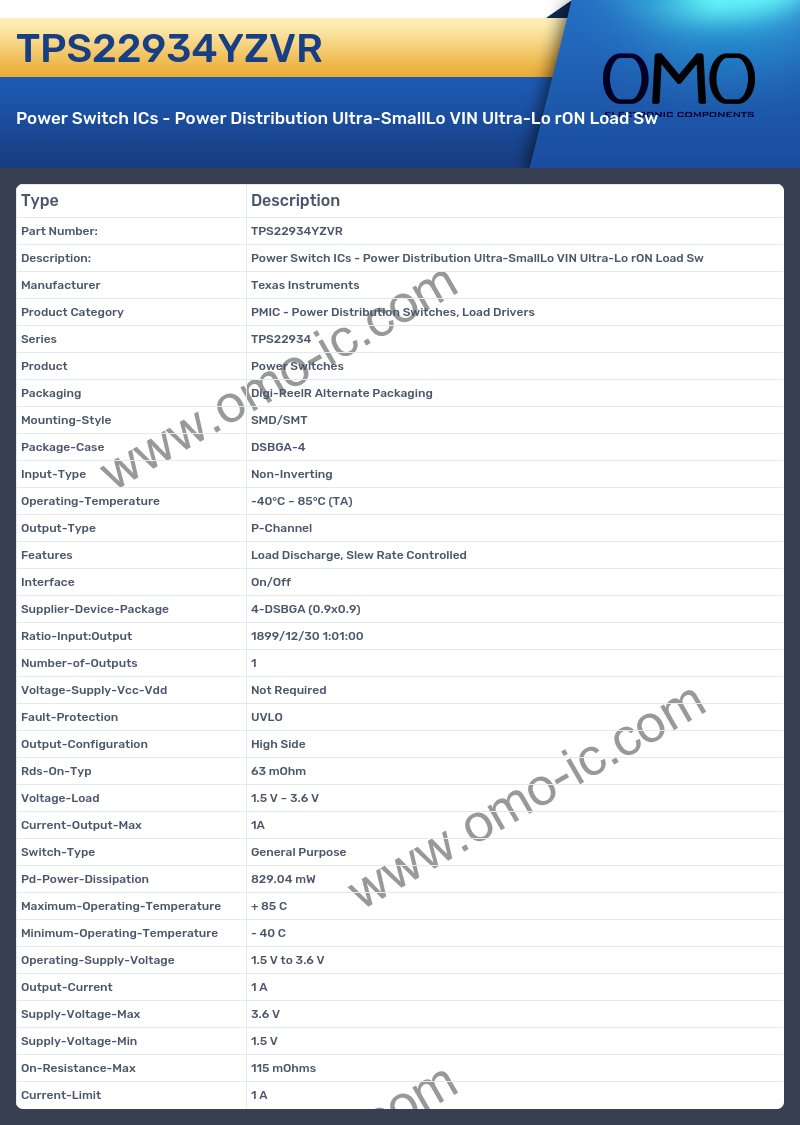

TPS22934YZVR Image

TPS22934YZVR Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Power Distribution Switches, Load Drivers
• Series TPS22934
• Product Power Switches
• Packaging Digi-ReelR Alternate Packaging
• Mounting-Style SMD/SMT
• Package-Case DSBGA-4
• Input-Type Non-Inverting
• Operating-Temperature -40°C ~ 85°C (TA)
• Output-Type P-Channel
• Features Load Discharge, Slew Rate Controlled
• Interface On/Off
• Supplier-Device-Package 4-DSBGA (0.9x0.9)
• Ratio-Input:Output 1899/12/30 1:01:00
• Number-of-Outputs 1
• Voltage-Supply-Vcc-Vdd Not Required
• Fault-Protection UVLO
• Output-Configuration High Side
• Rds-On-Typ 63 mOhm
• Voltage-Load 1.5 V ~ 3.6 V
• Current-Output-Max 1A
• Switch-Type General Purpose
• Pd-Power-Dissipation 829.04 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 1.5 V to 3.6 V
• Output-Current 1 A
• Supply-Voltage-Max 3.6 V
• Supply-Voltage-Min 1.5 V
• On-Resistance-Max 115 mOhms
• Current-Limit 1 A
