TPS1120D

TPS1120D Overview

Product belongs to the TPS1120 series. Tube Alternate Packaging is the packaging method for this product Weight of 0.002677 oz SMD/SMT Mounting-Style 8-SOIC (0.154", 3.90mm Width) Si is the technology used. Operational temperature range: -40°C ~ 150°C (TJ) Surface Mount mounting type Number of channels: 2 Channel Supplier device package: 8-SOIC Configuration Dual Dual Drain This product uses an 2 P-Channel (Dual) FET-Type transistor. Transistor type: 2 P-Channel 15V This product has an - value of 300pF @ 25V. This product's Logic Level Gate. 1.17A continuous drain-ID current at 25°C; This product has an 180 mOhm @ 1.5A, 10V of 12 Ohm @ 150mA, 0V. Power-off control: 840 mW Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C This product has a 10 ns of 16 ns. This product has a 10 ns of 16 ns. This product's - 15 V 2 V. The ID of continuous drain current is 1.17 A. This product has a Vds-Drain-Source-Breakdown-Voltageof 15 V. The 180 mOhms for this product is 12 Ohms. The transistor polarity is P-Channel. 'Typical-Turn-Off-Delay-Time' of 13 ns This product has a 4.5 ns. This product operates in Enhancement channel mode for optimal performance.

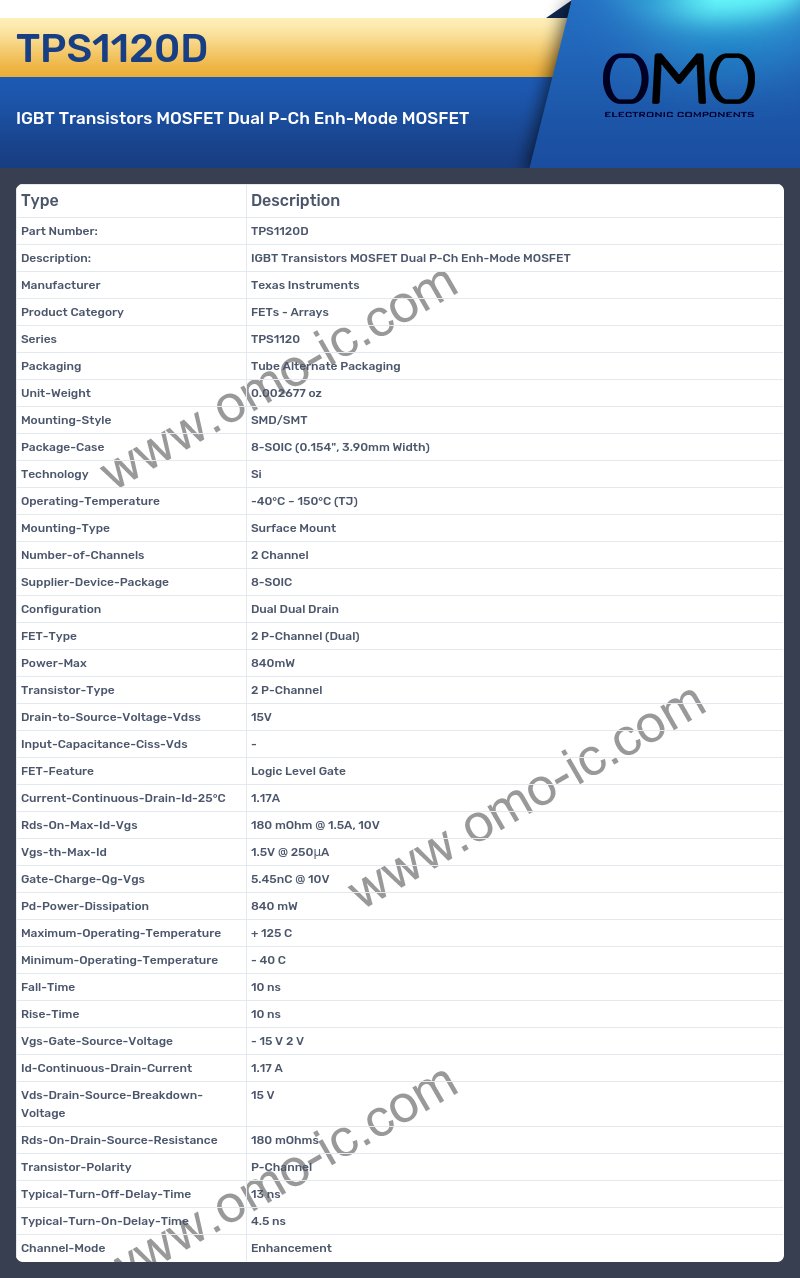

TPS1120D Image

TPS1120D Specifications

• Manufacturer Texas Instruments
• Product Category FETs - Arrays
• Series TPS1120
• Packaging Tube Alternate Packaging
• Unit-Weight 0.002677 oz
• Mounting-Style SMD/SMT
• Package-Case 8-SOIC (0.154", 3.90mm Width)
• Technology Si
• Operating-Temperature -40°C ~ 150°C (TJ)
• Mounting-Type Surface Mount
• Number-of-Channels 2 Channel
• Supplier-Device-Package 8-SOIC
• Configuration Dual Dual Drain
• FET-Type 2 P-Channel (Dual)
• Power-Max 840mW
• Transistor-Type 2 P-Channel
• Drain-to-Source-Voltage-Vdss 15V
• Input-Capacitance-Ciss-Vds -
• FET-Feature Logic Level Gate
• Current-Continuous-Drain-Id-25°C 1.17A
• Rds-On-Max-Id-Vgs 180 mOhm @ 1.5A, 10V
• Vgs-th-Max-Id 1.5V @ 250μA
• Gate-Charge-Qg-Vgs 5.45nC @ 10V
• Pd-Power-Dissipation 840 mW
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Fall-Time 10 ns
• Rise-Time 10 ns
• Vgs-Gate-Source-Voltage - 15 V 2 V
• Id-Continuous-Drain-Current 1.17 A
• Vds-Drain-Source-Breakdown-Voltage 15 V
• Rds-On-Drain-Source-Resistance 180 mOhms
• Transistor-Polarity P-Channel
• Typical-Turn-Off-Delay-Time 13 ns
• Typical-Turn-On-Delay-Time 4.5 ns
• Channel-Mode Enhancement
