TPIC6C596DR

TPIC6C596DR Overview

Product belongs to the TPIC series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.005235 oz SMD/SMT Mounting-Style SOIC-16 Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Output-Type: Open Drain Product function is Serial to Parallel, Serial. Voltage Supply Range: 4.5 V ~ 5.5 V Supplier device package: 16-SOIC 1 is 8. 8 bit bits 1 element Shift Register logic type 8 bits per element Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Maximum supply voltage of 5.5 V Serial to Serial/Parallel counting sequence 15 ns is 23 microseconds. Number-of-Input-Lines: 1 Number-of-Output-Lines: 9

TPIC6C596DR Image

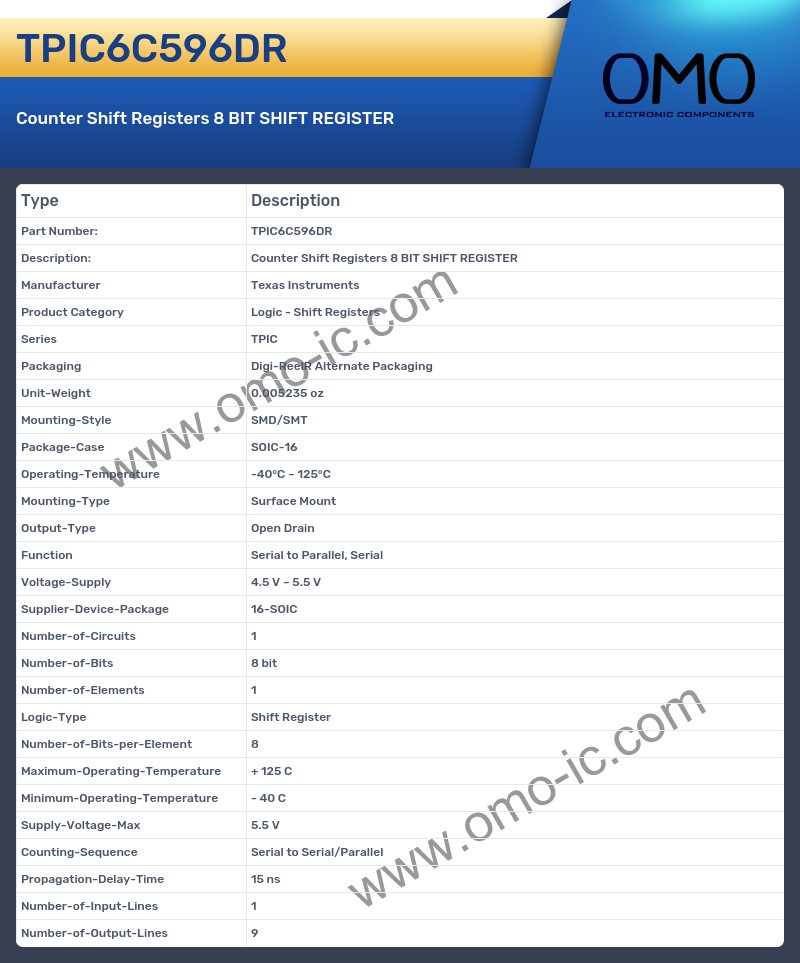

TPIC6C596DR Specifications

• Manufacturer Texas Instruments
• Product Category Logic - Shift Registers
• Series TPIC
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.005235 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-16
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type Open Drain
• Function Serial to Parallel, Serial
• Voltage-Supply 4.5 V ~ 5.5 V
• Supplier-Device-Package 16-SOIC
• Number-of-Circuits 1
• Number-of-Bits 8 bit
• Number-of-Elements 1
• Logic-Type Shift Register
• Number-of-Bits-per-Element 8
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Supply-Voltage-Max 5.5 V
• Counting-Sequence Serial to Serial/Parallel
• Propagation-Delay-Time 15 ns
• Number-of-Input-Lines 1
• Number-of-Output-Lines 9
