TPA3002D2PHP

TPA3002D2PHP Overview

Product belongs to the TPA3002D2 series. This product is categorized as Audio Amplifiers Type: Class D Tray Alternate Packaging is the packaging method for this product Weight of 0.004744 oz SMD/SMT Mounting-Style HTQFP-48 The Differential for this product is CMOS/TTL. Operational temperature range: -40°C ~ 85°C (TA) Surface Mount mounting type Output-Type: 2-Channel (Stereo) Number of channels: 2 Channel Voltage Supply Range: 8.5 V ~ 14 V Supplier device package: 48-HTQFP (7x7) Maximum Output Power of 9W x 2 @ 8 Ohm for 1 channel Class-D is the class of this product. Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C 16 mA is 92 nA. Output current: 20 mA The TPA3002D2EVM. Maximum supply voltage of 14 V Minimum supply voltage is 8.5 V Input bias current of - This product has a 0.025 % for clear and precise audio. 32 Ohm audio load impedance Single supply type

TPA3002D2PHP Image

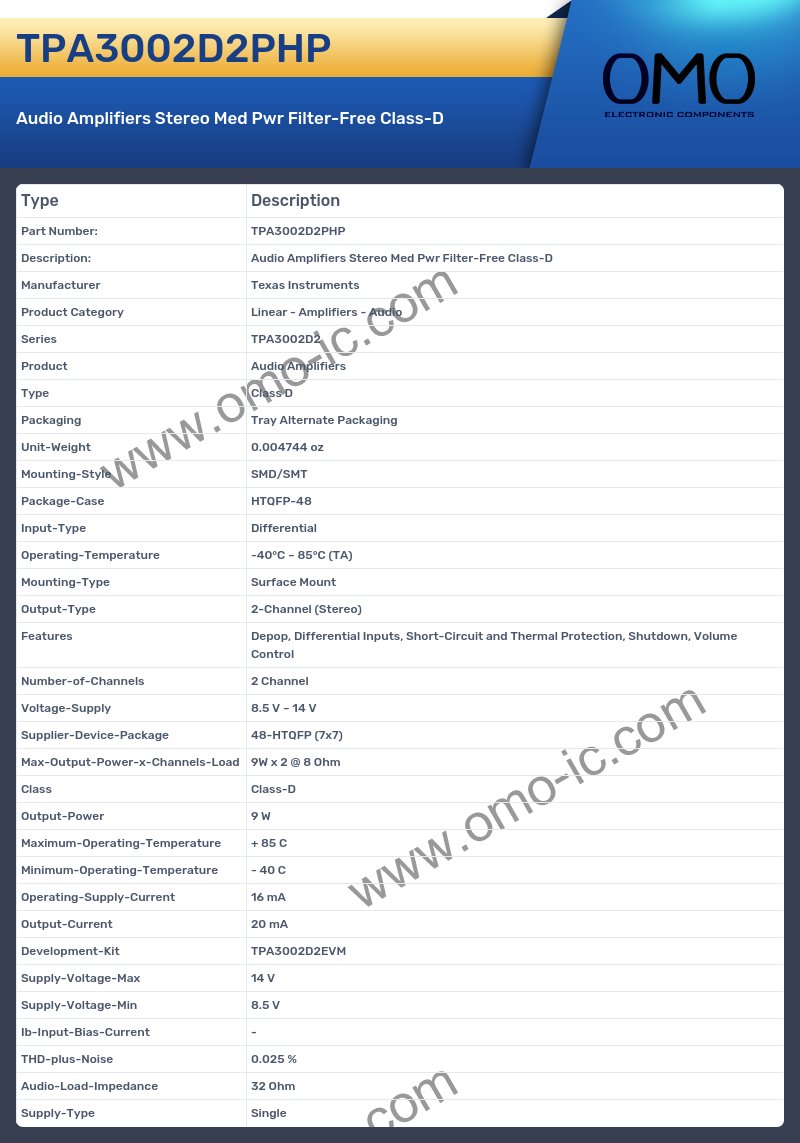

TPA3002D2PHP Specifications

• Manufacturer Texas Instruments
• Product Category Linear - Amplifiers - Audio
• Series TPA3002D2
• Product Audio Amplifiers
• Type Class D
• Packaging Tray Alternate Packaging
• Unit-Weight 0.004744 oz
• Mounting-Style SMD/SMT
• Package-Case HTQFP-48
• Input-Type Differential
• Operating-Temperature -40°C ~ 85°C (TA)
• Mounting-Type Surface Mount
• Output-Type 2-Channel (Stereo)
• Features Depop, Differential Inputs, Short-Circuit and Thermal Protection, Shutdown, Volume Control
• Number-of-Channels 2 Channel
• Voltage-Supply 8.5 V ~ 14 V
• Supplier-Device-Package 48-HTQFP (7x7)
• Max-Output-Power-x-Channels-Load 9W x 2 @ 8 Ohm
• Class Class-D
• Output-Power 9 W
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 16 mA
• Output-Current 20 mA
• Development-Kit TPA3002D2EVM
• Supply-Voltage-Max 14 V
• Supply-Voltage-Min 8.5 V
• Ib-Input-Bias-Current -
• THD-plus-Noise 0.025 %
• Audio-Load-Impedance 32 Ohm
• Supply-Type Single
