TLC7705IPE4

TLC7705IPE4 Overview

Product belongs to the TLC7705 series. Type: Simple Reset/Power-On Reset Tube Alternate Packaging is the packaging method for this product Weight of 0.015535 oz Through Hole Mounting-Style PDIP-8 Operational temperature range: -40°C ~ 85°C (TA) Through Hole mounting type Output-Type: Push-Pull Supplier device package: 8-PDIP The Push-Pull, Totem Pole. This product's Active High/Active Low. This product has 1 monitored voltages. The reset timeout for this product is 1.1 ms Minimum. This product's 4.55V. Power-off control: 1000 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C 9 uA is 92 nA. Maximum supply voltage of 6 V Minimum supply voltage is 2 V This product includes No Watchdog This product's 5 V is 2.32 V. This product can only 1 Input at a time. This product features a No Manual Reset function that allows for manual reset. The product's Adjustable is 200 ms. The 4.63 V is 2.35 V. 4.55 V is set to 2.29 V.

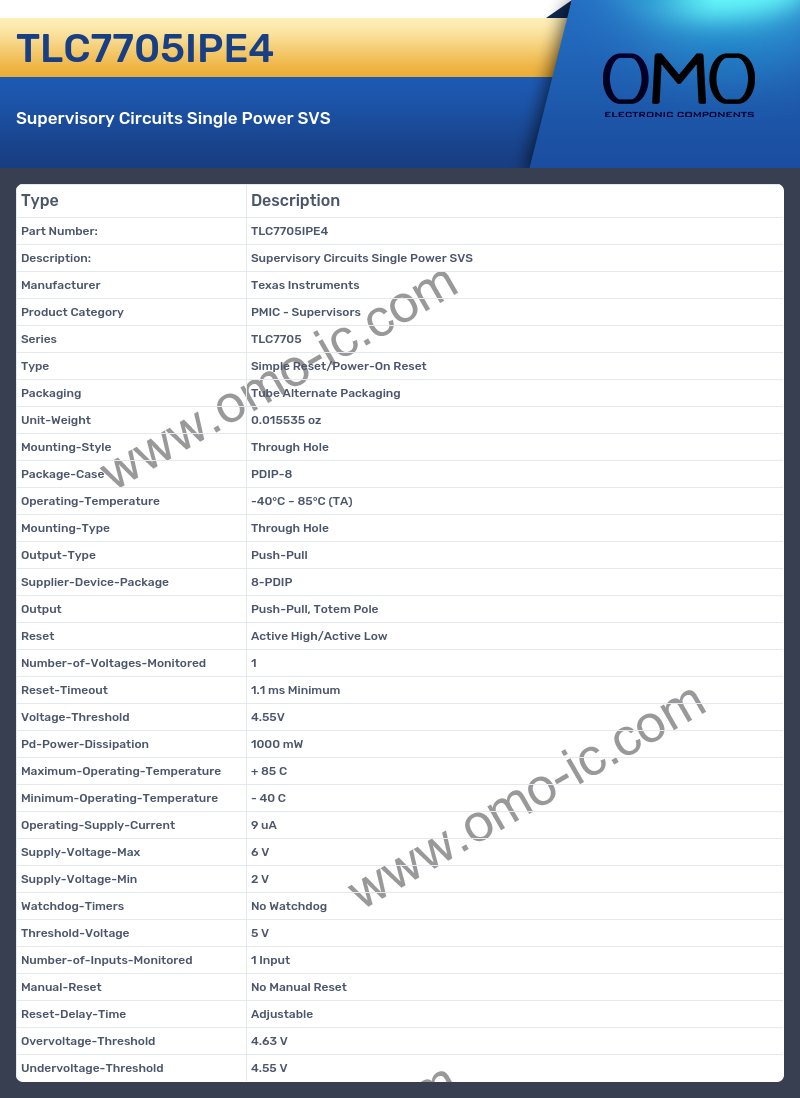

TLC7705IPE4 Image

TLC7705IPE4 Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Supervisors
• Series TLC7705
• Type Simple Reset/Power-On Reset
• Packaging Tube Alternate Packaging
• Unit-Weight 0.015535 oz
• Mounting-Style Through Hole
• Package-Case PDIP-8
• Operating-Temperature -40°C ~ 85°C (TA)
• Mounting-Type Through Hole
• Output-Type Push-Pull
• Supplier-Device-Package 8-PDIP
• Output Push-Pull, Totem Pole
• Reset Active High/Active Low
• Number-of-Voltages-Monitored 1
• Reset-Timeout 1.1 ms Minimum
• Voltage-Threshold 4.55V
• Pd-Power-Dissipation 1000 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 9 uA
• Supply-Voltage-Max 6 V
• Supply-Voltage-Min 2 V
• Watchdog-Timers No Watchdog
• Threshold-Voltage 5 V
• Number-of-Inputs-Monitored 1 Input
• Manual-Reset No Manual Reset
• Reset-Delay-Time Adjustable
• Overvoltage-Threshold 4.63 V
• Undervoltage-Threshold 4.55 V
