TLC5628CDW

TLC5628CDW Overview

Product belongs to the TLC5628 series. This product is categorized as Digital to Analog Converters Tube Alternate Packaging is the packaging method for this product Weight of 0.014829 oz SMD/SMT Mounting-Style SOIC-16 Operational temperature range: 0°C ~ 70°C Output-Type: Voltage - Buffered Number of channels: 8 Channel Supplier device package: 16-SOIC Data-Interface: SPI 8 bits The Voltage-Supply-Analog is 5V. The Voltage Supply Digital for this product is 5V. The architecture of this product is String DAC . External is the reference type. Number of D-A converters: 8 The 10μs (Typ) is an impressive 15 us. No Differential-Output Maximum operating temperature of + 70 C Minimum operating temperature: 0 C 4 mA is 92 nA. Serial 3-Wire interface type Maximum supply voltage of 5.25 V Minimum supply voltage is 4.75 V Number-of-Converters: 8 Converter

TLC5628CDW Image

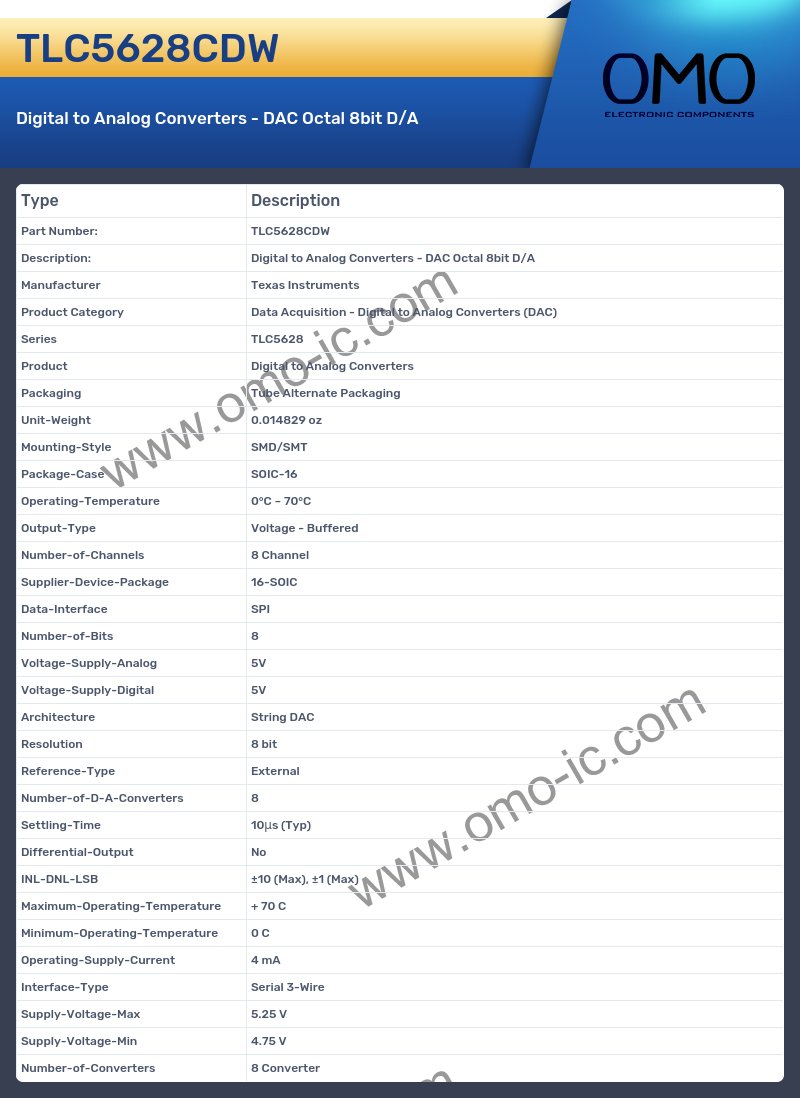

TLC5628CDW Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - Digital to Analog Converters (DAC)
• Series TLC5628
• Product Digital to Analog Converters
• Packaging Tube Alternate Packaging
• Unit-Weight 0.014829 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-16
• Operating-Temperature 0°C ~ 70°C
• Output-Type Voltage - Buffered
• Number-of-Channels 8 Channel
• Supplier-Device-Package 16-SOIC
• Data-Interface SPI
• Number-of-Bits 8
• Voltage-Supply-Analog 5V
• Voltage-Supply-Digital 5V
• Architecture String DAC
• Resolution 8 bit
• Reference-Type External
• Number-of-D-A-Converters 8
• Settling-Time 10μs (Typ)
• Differential-Output No
• INL-DNL-LSB ±10 (Max), ±1 (Max)
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Operating-Supply-Current 4 mA
• Interface-Type Serial 3-Wire
• Supply-Voltage-Max 5.25 V
• Supply-Voltage-Min 4.75 V
• Number-of-Converters 8 Converter
