TLC5602CDW

TLC5602CDW Overview

Product belongs to the TLC5602 series. This product is categorized as Digital to Analog Converters Type: Video DAC Tube Alternate Packaging is the packaging method for this product Weight of 0.018953 oz SMD/SMT Mounting-Style SOIC-20 Operational temperature range: 0°C ~ 70°C Surface Mount mounting type Output-Type: Voltage Number of channels: 1 Channel Voltage Supply Range: 5V Supplier device package: 20-SOIC Resolution-Bits: 8 b This product's 30M. Data-Interface: Parallel Voltage supply source: Analog and digital Single Supply The architecture of this product is Current Steering . External is the reference type. The 30 ns is an impressive 15 us. Maximum operating temperature of + 70 C Minimum operating temperature: 0 C Parallel interface type Maximum supply voltage of 5.25 V Minimum supply voltage is 4.75 V Number-of-Converters: 1 Converter 30 MS/s Sampling Rate Integral Nonlinearity: +/- 0.2 % FSR

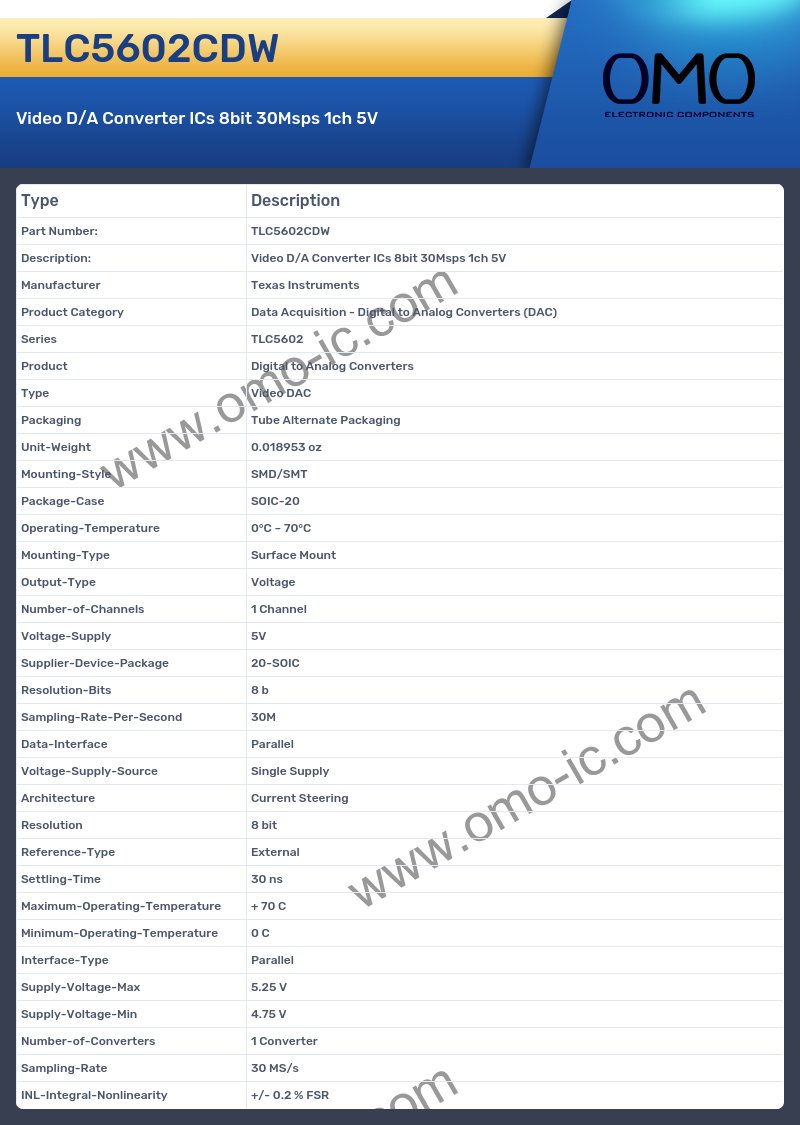

TLC5602CDW Image

TLC5602CDW Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - Digital to Analog Converters (DAC)
• Series TLC5602
• Product Digital to Analog Converters
• Type Video DAC
• Packaging Tube Alternate Packaging
• Unit-Weight 0.018953 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-20
• Operating-Temperature 0°C ~ 70°C
• Mounting-Type Surface Mount
• Output-Type Voltage
• Number-of-Channels 1 Channel
• Voltage-Supply 5V
• Supplier-Device-Package 20-SOIC
• Resolution-Bits 8 b
• Sampling-Rate-Per-Second 30M
• Data-Interface Parallel
• Voltage-Supply-Source Single Supply
• Architecture Current Steering
• Resolution 8 bit
• Reference-Type External
• Settling-Time 30 ns
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Interface-Type Parallel
• Supply-Voltage-Max 5.25 V
• Supply-Voltage-Min 4.75 V
• Number-of-Converters 1 Converter
• Sampling-Rate 30 MS/s
• INL-Integral-Nonlinearity +/- 0.2 % FSR
