TLC555IP

TLC555IP Overview

Product belongs to the LinCMOS series. Type: 555 Type, Timer/Oscillator (Single) Tube Alternate Packaging is the packaging method for this product Weight of 0.015535 oz Through Hole Mounting-Style Trade name: LinCMOS. PDIP-8 This product's 2.1MHz range is 0Hz to 2.2GHz. Operational temperature range: -40°C ~ 85°C Through Hole mounting type Voltage Supply Range: 3 V ~ 15 V Supplier device package: 8-PDIP This product has a 360μA of 200μA. Power-off control: 1000 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C 250 uA is 92 nA. Maximum supply voltage of 15 V Minimum supply voltage is 2 V High-Level-Output-Current of 100 mA - 10 mA low-level output current 1 Timer Internal Timers

TLC555IP Image

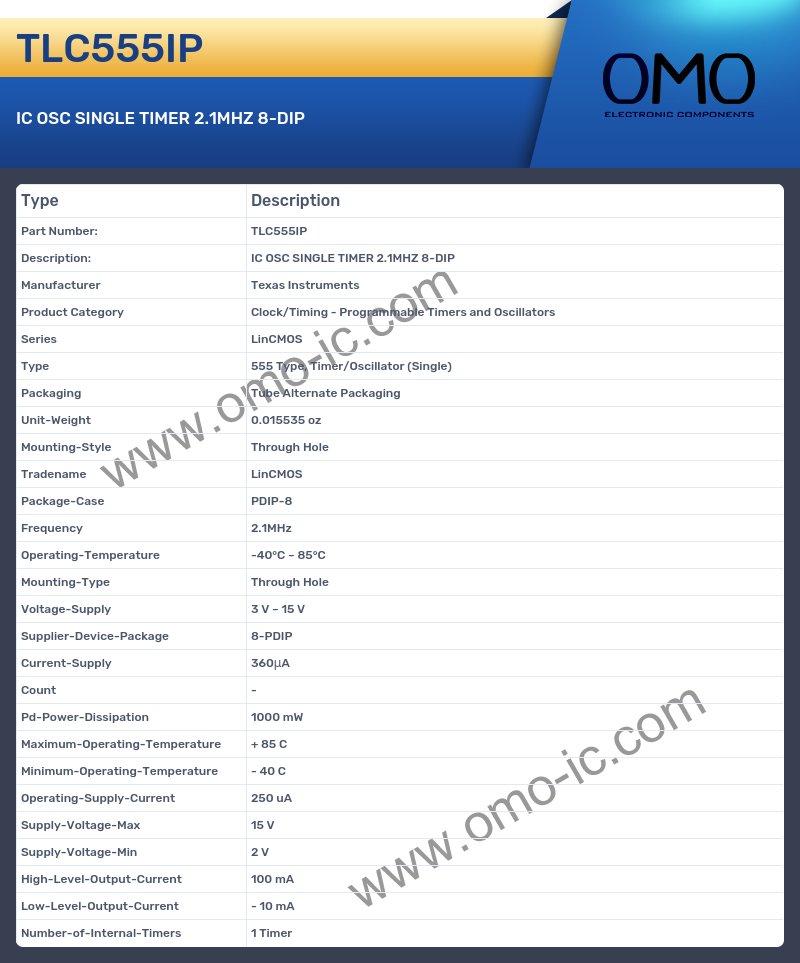

TLC555IP Specifications

• Manufacturer Texas Instruments
• Product Category Clock/Timing - Programmable Timers and Oscillators
• Series LinCMOS
• Type 555 Type, Timer/Oscillator (Single)
• Packaging Tube Alternate Packaging
• Unit-Weight 0.015535 oz
• Mounting-Style Through Hole
• Tradename LinCMOS
• Package-Case PDIP-8
• Frequency 2.1MHz
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Through Hole
• Voltage-Supply 3 V ~ 15 V
• Supplier-Device-Package 8-PDIP
• Current-Supply 360μA
• Count -
• Pd-Power-Dissipation 1000 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 250 uA
• Supply-Voltage-Max 15 V
• Supply-Voltage-Min 2 V
• High-Level-Output-Current 100 mA
• Low-Level-Output-Current - 10 mA
• Number-of-Internal-Timers 1 Timer
