TL3116CPWR

TL3116CPWR Overview

Product belongs to the TL3116 series. This product is categorized as Analog Comparators Type: General Purpose Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.001376 oz SMD/SMT Mounting-Style TSSOP-8 Operational temperature range: 0°C ~ 70°C Surface Mount mounting type Output-Type: Complementary, Push-Pull, TTL Number of channels: 1 Channel Supplier device package: 8-TSSOP Voltage supply range: 5 V ~ 10 V, ±2.5 V ~ 5 V 1 element 14.7mA maximum quiescent current. Maximum propagation delay: 12ns Hysteresis value of - 9.9 ns response time Power-off control: No Shutdown Power-off control: 525 mW Maximum operating temperature of + 70 C Minimum operating temperature: 0 C 12.7 mA is 92 nA. Maximum supply voltage of 10 V Minimum supply voltage is 5 V Precision comparator type Input bias current of 1.1 uA The 3 mV. The 0.6 mA. The - 5 V to 2.5 V. The CMRR-Common-Mode-Rejection-Ratio is 100 dB.

TL3116CPWR Image

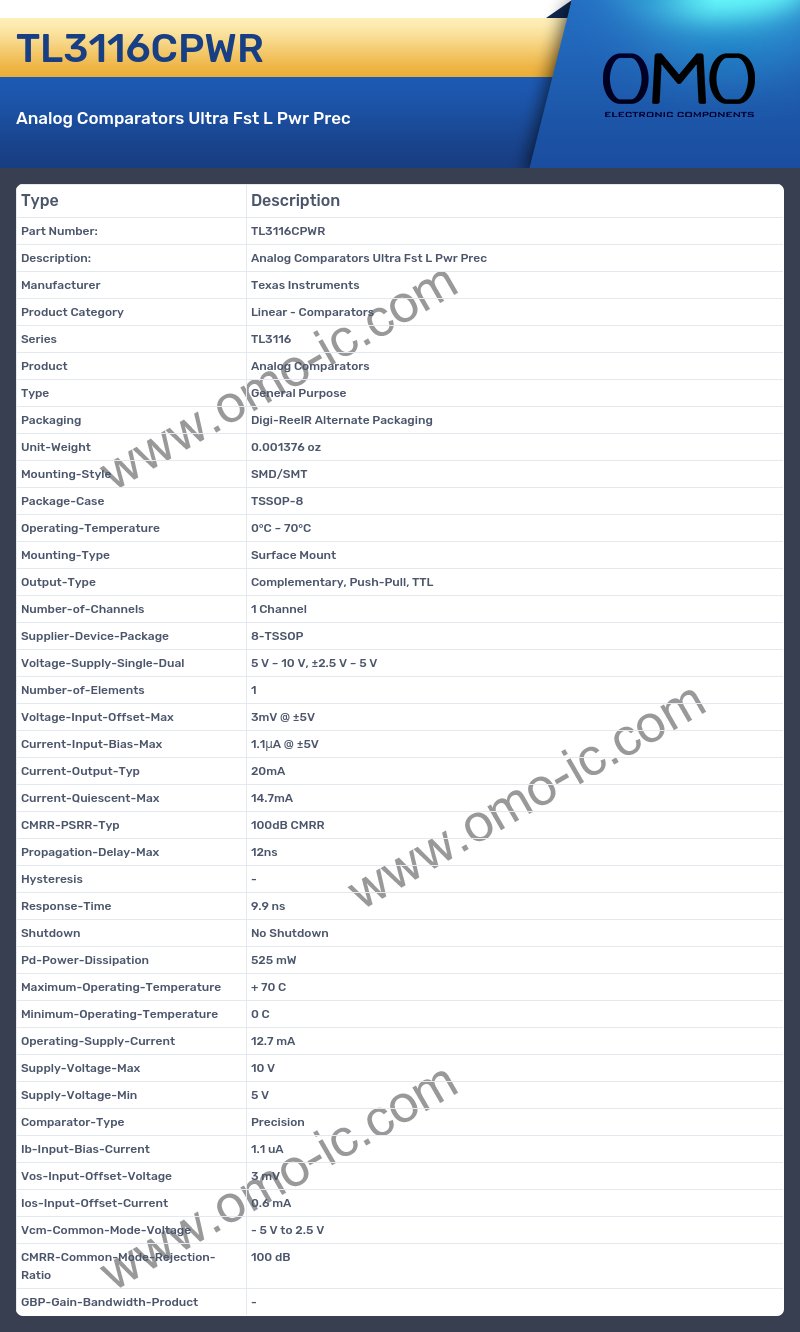

TL3116CPWR Specifications

• Manufacturer Texas Instruments
• Product Category Linear - Comparators
• Series TL3116
• Product Analog Comparators
• Type General Purpose
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.001376 oz
• Mounting-Style SMD/SMT
• Package-Case TSSOP-8
• Operating-Temperature 0°C ~ 70°C
• Mounting-Type Surface Mount
• Output-Type Complementary, Push-Pull, TTL
• Number-of-Channels 1 Channel
• Supplier-Device-Package 8-TSSOP
• Voltage-Supply-Single-Dual 5 V ~ 10 V, ±2.5 V ~ 5 V
• Number-of-Elements 1
• Voltage-Input-Offset-Max 3mV @ ±5V
• Current-Input-Bias-Max 1.1μA @ ±5V
• Current-Output-Typ 20mA
• Current-Quiescent-Max 14.7mA
• CMRR-PSRR-Typ 100dB CMRR
• Propagation-Delay-Max 12ns
• Hysteresis -
• Response-Time 9.9 ns
• Shutdown No Shutdown
• Pd-Power-Dissipation 525 mW
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Operating-Supply-Current 12.7 mA
• Supply-Voltage-Max 10 V
• Supply-Voltage-Min 5 V
• Comparator-Type Precision
• Ib-Input-Bias-Current 1.1 uA
• Vos-Input-Offset-Voltage 3 mV
• Ios-Input-Offset-Current 0.6 mA
• Vcm-Common-Mode-Voltage - 5 V to 2.5 V
• CMRR-Common-Mode-Rejection-Ratio 100 dB
• GBP-Gain-Bandwidth-Product -
