THS1007IDA Overview

Product belongs to the THS1007 series. This product is categorized as Analog to Digital Converters Tube is the packaging method for this product Weight of 0.006113 oz SMD/SMT Mounting-Style TSSOP-32 The Differential, Single Ended for this product is CMOS/TTL. Operational temperature range: -40°C ~ 85°C Number of channels: 2 Channel/4 Channel Supplier device package: 32-TSSOP This product's 6M. Data-Interface: Parallel 10 bits The Voltage-Supply-Analog is 5V. The Voltage Supply Digital for this product is 5V. Configuration S/H-MUX-ADC The architecture of this product is Pipelined . External, Internal is the reference type. 1 units Power-off control: 216 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 30 C Parallel interface type Signal-to-Noise Ratio of 61 dB Number-of-Converters: 1 Converter 6 MS/s Sampling Rate Analog supply voltage: 4.75 V to 5.25 V Digital Supply Voltage: 3 V to 5.25 V Integral Nonlinearity: +/- 1 LSB Differential nonlinearity: +/- 1 LSB

THS1007IDA Image

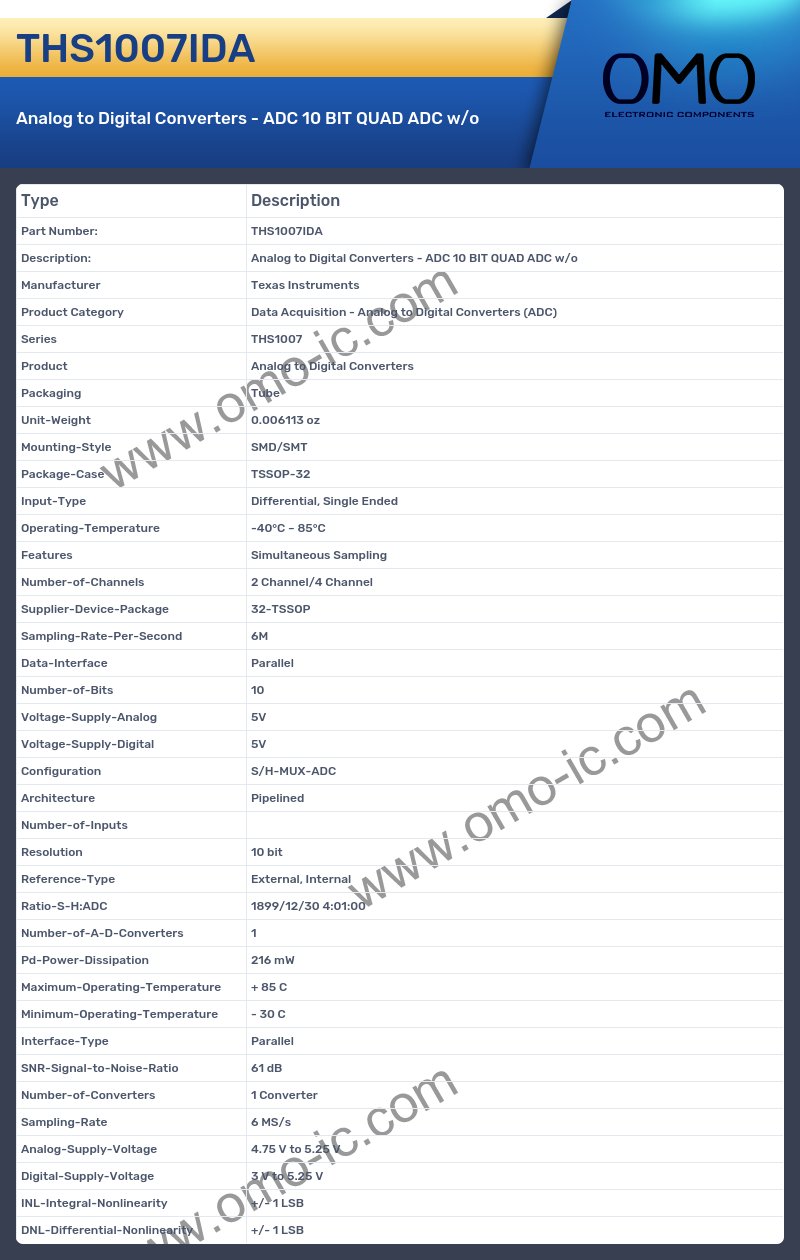

THS1007IDA Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series THS1007
• Product Analog to Digital Converters
• Packaging Tube
• Unit-Weight 0.006113 oz
• Mounting-Style SMD/SMT
• Package-Case TSSOP-32
• Input-Type Differential, Single Ended
• Operating-Temperature -40°C ~ 85°C
• Features Simultaneous Sampling
• Number-of-Channels 2 Channel/4 Channel
• Supplier-Device-Package 32-TSSOP
• Sampling-Rate-Per-Second 6M
• Data-Interface Parallel
• Number-of-Bits 10
• Voltage-Supply-Analog 5V
• Voltage-Supply-Digital 5V
• Configuration S/H-MUX-ADC
• Architecture Pipelined
• Number-of-Inputs
• Resolution 10 bit
• Reference-Type External, Internal
• Ratio-S-H:ADC 1899/12/30 4:01:00
• Number-of-A-D-Converters 1
• Pd-Power-Dissipation 216 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 30 C
• Interface-Type Parallel
• SNR-Signal-to-Noise-Ratio 61 dB
• Number-of-Converters 1 Converter
• Sampling-Rate 6 MS/s
• Analog-Supply-Voltage 4.75 V to 5.25 V
• Digital-Supply-Voltage 3 V to 5.25 V
• INL-Integral-Nonlinearity +/- 1 LSB
• DNL-Differential-Nonlinearity +/- 1 LSB
