TDA7563BH

TDA7563BH Overview

Product belongs to the TDA7563B series. This product is categorized as Audio Amplifiers Type: Class AB Tube is the packaging method for this product Through Hole Mounting-Style FLEXIWATT- 27 H The Single for this product is CMOS/TTL. Operational temperature range: -55°C ~ 150°C (TJ) Through Hole mounting type Output-Type: 4-Channel (Quad) Number of channels: 4 Channel Voltage Supply Range: 8 V ~ 18 V Supplier device package: 27-Flexiwatt (Horizontal) Maximum Output Power of 75W x 4 @ 2 Ohm for 1 channel The device offers a 30 dB of 26dB. Class-AB is the class of this product. Maximum operating temperature of + 150 C Minimum operating temperature: - 55 C Output current: 8000 mA Maximum supply voltage of 18 V Minimum supply voltage is 8 V The 100 mV. This product has a 0.03 % for clear and precise audio. 4 Ohm audio load impedance Single supply type

TDA7563BH Image

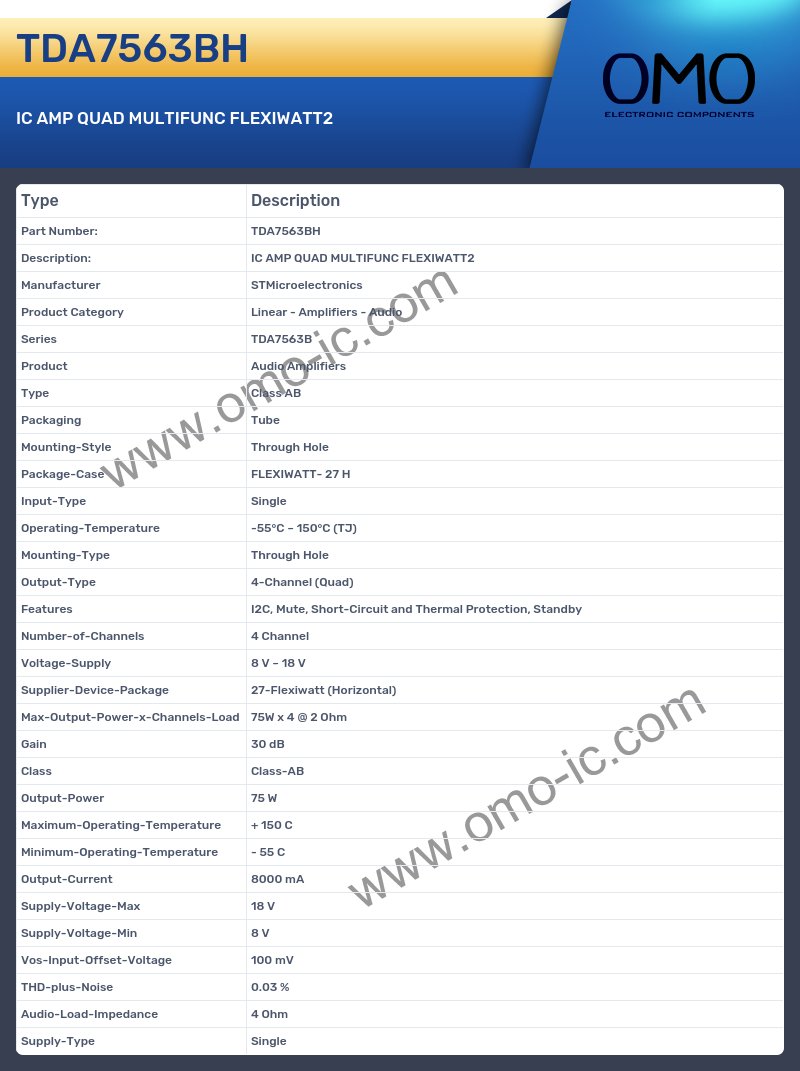

TDA7563BH Specifications

• Manufacturer STMicroelectronics
• Product Category Linear - Amplifiers - Audio
• Series TDA7563B
• Product Audio Amplifiers
• Type Class AB
• Packaging Tube
• Mounting-Style Through Hole
• Package-Case FLEXIWATT- 27 H
• Input-Type Single
• Operating-Temperature -55°C ~ 150°C (TJ)
• Mounting-Type Through Hole
• Output-Type 4-Channel (Quad)
• Features I2C, Mute, Short-Circuit and Thermal Protection, Standby
• Number-of-Channels 4 Channel
• Voltage-Supply 8 V ~ 18 V
• Supplier-Device-Package 27-Flexiwatt (Horizontal)
• Max-Output-Power-x-Channels-Load 75W x 4 @ 2 Ohm
• Gain 30 dB
• Class Class-AB
• Output-Power 75 W
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 55 C
• Output-Current 8000 mA
• Supply-Voltage-Max 18 V
• Supply-Voltage-Min 8 V
• Vos-Input-Offset-Voltage 100 mV
• THD-plus-Noise 0.03 %
• Audio-Load-Impedance 4 Ohm
• Supply-Type Single
