TC1301A-PGAVMF

TC1301A-PGAVMF Overview

Product belongs to the - series. Tube Alternate Packaging is the packaging method for this product Weight of 0.001319 oz SMD/SMT Mounting-Style DFN-8 Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Output-Type: Fixed Supplier device package: 8-DFN-EP (3x3) 2.7 V ~ 6 V voltage input Number-of-Outputs: 2 Output Output voltage: 1.8V, 2.7V, 2.63V (Reset) Positive Fixed regulator topology The product has 2 of 1. Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Output voltage: 1.8 V 2.7 V Maximum Input Voltage: 6 V Output current: 300 mA The product's 2.7 V is 5.1 V. Load regulation is 0.1 %. The voltage regulation accuracy of this product is 0.5 %. Input bias current of 58 uA The 0.104 V at 300 mA. The maximum 180 mV at 300 mA is 360 mV. This product's 0.02 % / V is 0.01 %/V.

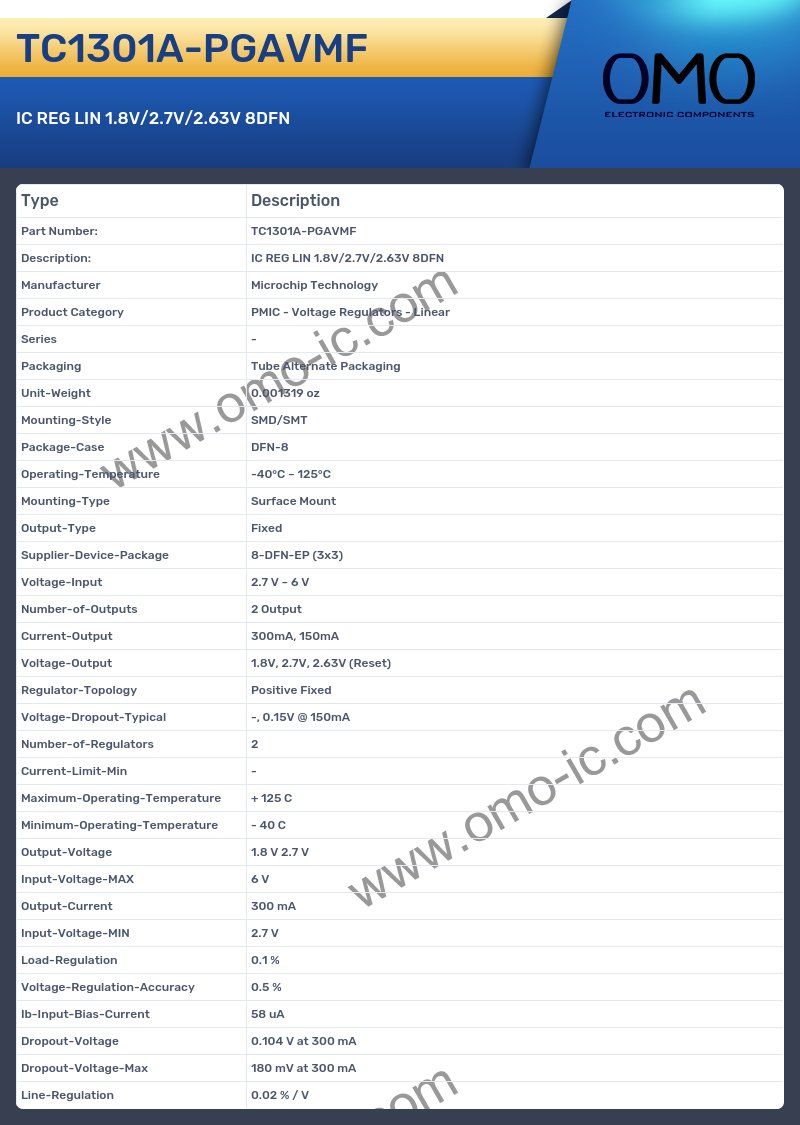

TC1301A-PGAVMF Image

TC1301A-PGAVMF Specifications

• Manufacturer Microchip Technology
• Product Category PMIC - Voltage Regulators - Linear
• Series -
• Packaging Tube Alternate Packaging
• Unit-Weight 0.001319 oz
• Mounting-Style SMD/SMT
• Package-Case DFN-8
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type Fixed
• Supplier-Device-Package 8-DFN-EP (3x3)
• Voltage-Input 2.7 V ~ 6 V
• Number-of-Outputs 2 Output
• Current-Output 300mA, 150mA
• Voltage-Output 1.8V, 2.7V, 2.63V (Reset)
• Regulator-Topology Positive Fixed
• Voltage-Dropout-Typical -, 0.15V @ 150mA
• Number-of-Regulators 2
• Current-Limit-Min -
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 1.8 V 2.7 V
• Input-Voltage-MAX 6 V
• Output-Current 300 mA
• Input-Voltage-MIN 2.7 V
• Load-Regulation 0.1 %
• Voltage-Regulation-Accuracy 0.5 %
• Ib-Input-Bias-Current 58 uA
• Dropout-Voltage 0.104 V at 300 mA
• Dropout-Voltage-Max 180 mV at 300 mA
• Line-Regulation 0.02 % / V
