TC1232COE Overview

Product belongs to the - series. Type: Simple Reset/Power-On Reset Tube Alternate Packaging is the packaging method for this product Weight of 0.023492 oz SMD/SMT Mounting-Style SOIC-16 Operational temperature range: 0°C ~ 70°C (TA) Surface Mount mounting type Output-Type: Active High Active Low Open Drain Push-Pull Supplier device package: 16-SOIC The Open Drain or Open Collector. This product's Active High/Active Low. This product has 1 monitored voltages. The reset timeout for this product is 250 ms Minimum. This product's 4.37V, 4.62V. Maximum operating temperature of + 70 C Minimum operating temperature: 0 C 200 uA is 92 nA. This product does not have No Backup capability. Maximum supply voltage of 5.5 V Minimum supply voltage is 4 V This product includes Watchdog This product's 4.5 V to 4.75 V is 2.32 V. This product can only 1 Input at a time. This product features a Manual Reset function that allows for manual reset. This product does not support No Chip Enable. This product does not have Yes capability. The product's 1000 ms is 200 ms. The 4.74 V 4.49 V is 2.35 V. 4.5 V 4.25 V is set to 2.29 V.

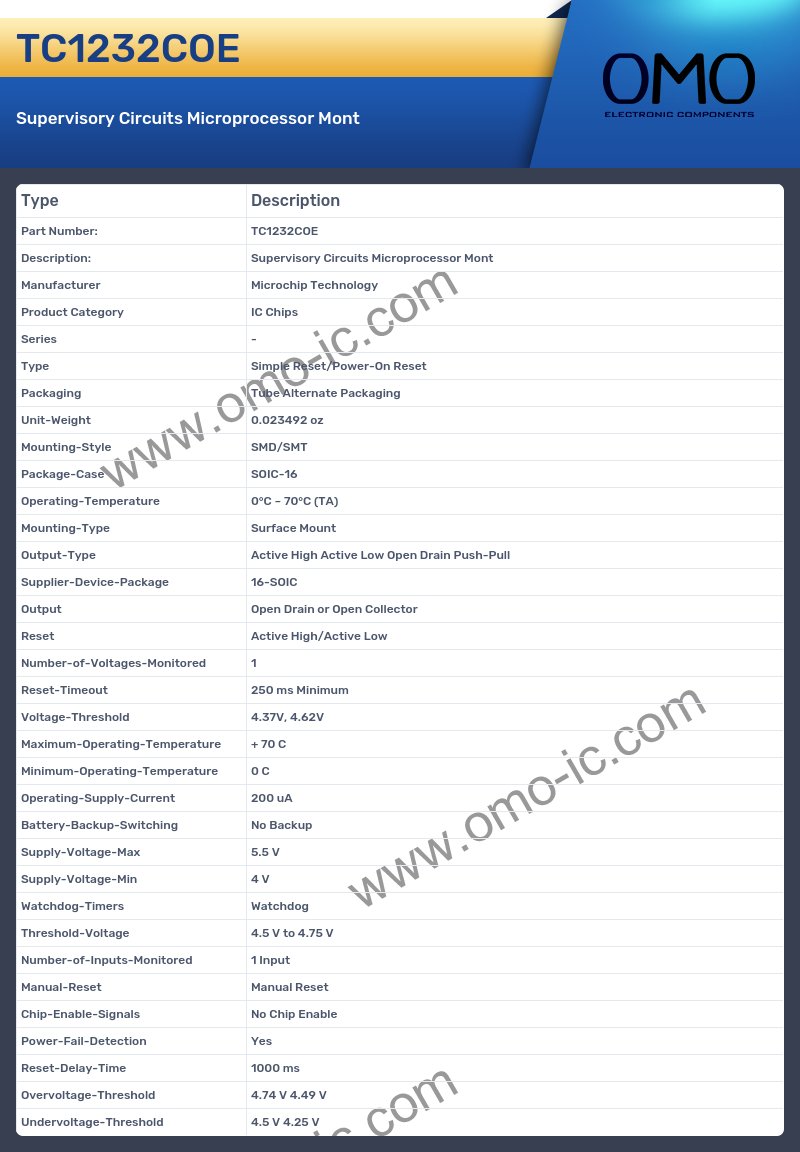

TC1232COE Image

TC1232COE Specifications

• Manufacturer Microchip Technology
• Product Category IC Chips
• Series -
• Type Simple Reset/Power-On Reset
• Packaging Tube Alternate Packaging
• Unit-Weight 0.023492 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-16
• Operating-Temperature 0°C ~ 70°C (TA)
• Mounting-Type Surface Mount
• Output-Type Active High Active Low Open Drain Push-Pull
• Supplier-Device-Package 16-SOIC
• Output Open Drain or Open Collector
• Reset Active High/Active Low
• Number-of-Voltages-Monitored 1
• Reset-Timeout 250 ms Minimum
• Voltage-Threshold 4.37V, 4.62V
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Operating-Supply-Current 200 uA
• Battery-Backup-Switching No Backup
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 4 V
• Watchdog-Timers Watchdog
• Threshold-Voltage 4.5 V to 4.75 V
• Number-of-Inputs-Monitored 1 Input
• Manual-Reset Manual Reset
• Chip-Enable-Signals No Chip Enable
• Power-Fail-Detection Yes
• Reset-Delay-Time 1000 ms
• Overvoltage-Threshold 4.74 V 4.49 V
• Undervoltage-Threshold 4.5 V 4.25 V
