TB5R2DWR

TB5R2DWR Overview

Product belongs to the TB5R2 series. Type: Receiver Tape & Reel (TR) Alternate Packaging is the packaging method for this product Weight of 0.014148 oz SMD/SMT Mounting-Style SOIC-16 Wide The PECL for this product is CMOS/TTL. Operational temperature range: -40°C ~ 85°C Surface Mount mounting type Output-Type: TTL Voltage Supply Range: 4.5 V ~ 5.5 V Supplier device package: 16-SOIC This product has a 0/4 number of drivers and receivers. Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C 40 mA is 92 nA. Maximum supply voltage of 5.5 V Minimum supply voltage is 4.5 V Number-of-Drivers: 4 Driver The product has 4 Receiver receivers.

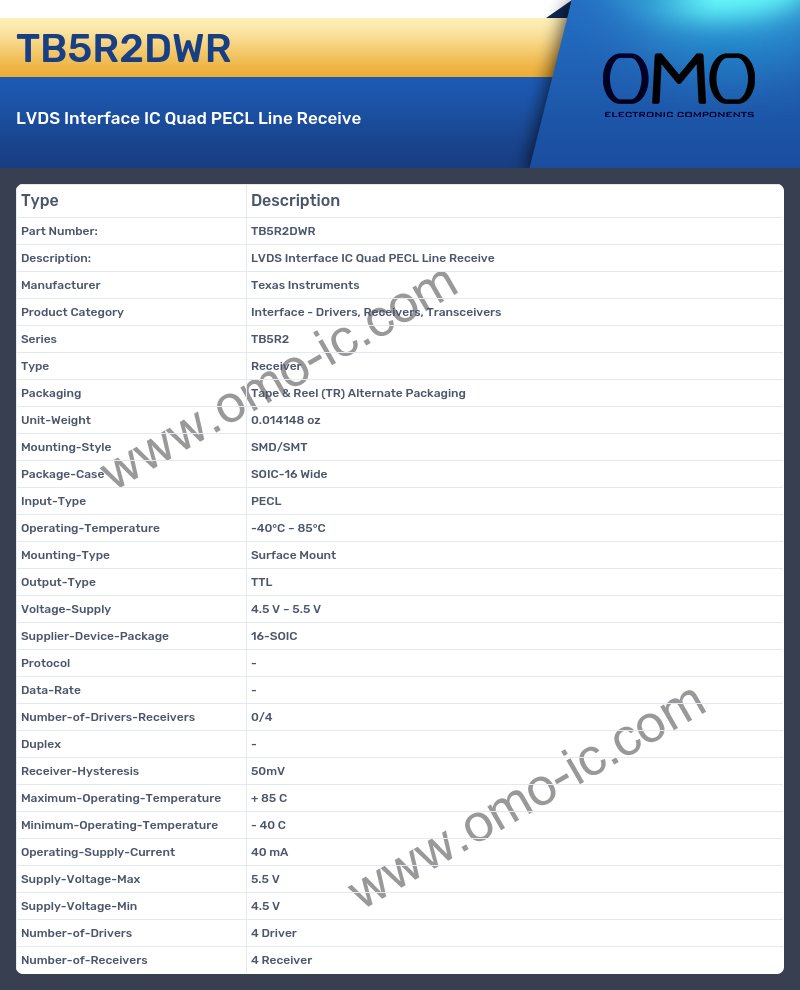

TB5R2DWR Image

TB5R2DWR Specifications

• Manufacturer Texas Instruments
• Product Category Interface - Drivers, Receivers, Transceivers
• Series TB5R2
• Type Receiver
• Packaging Tape & Reel (TR) Alternate Packaging
• Unit-Weight 0.014148 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-16 Wide
• Input-Type PECL
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Surface Mount
• Output-Type TTL
• Voltage-Supply 4.5 V ~ 5.5 V
• Supplier-Device-Package 16-SOIC
• Protocol -
• Data-Rate -
• Number-of-Drivers-Receivers 0/4
• Duplex -
• Receiver-Hysteresis 50mV
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 40 mA
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 4.5 V
• Number-of-Drivers 4 Driver
• Number-of-Receivers 4 Receiver
