| Mfr. #: | STW13NK60Z |
|---|---|
| Өндіруші: | STMicroelectronics |
| Сипаттама: | MOSFET N-CH 600V 13A TO-247 |
| Өміршеңдік кезең: | Осы өндірушіден жаңа. |
| Деректер тізімі: | STW13NK60Z Деректер тізімі |
Product belongs to the SuperMESH series. Tube is the packaging method for this product Weight of 1.340411 oz Through Hole Mounting-Style TO-247-3 Si is the technology used. Operational temperature range: -55°C ~ 150°C (TJ) Through Hole mounting type Number of channels: 1 Channel Supplier device package: TO-247-3 Configuration Single This product uses an MOSFET N-Channel, Metal Oxide FET-Type transistor. Transistor type: 1 N-Channel 600V This product has an 2030pF @ 25V value of 300pF @ 25V. This product's Standard. 13A (Tc) continuous drain-ID current at 25°C; This product has an 550 mOhm @ 4.5A, 10V of 12 Ohm @ 150mA, 0V. Power-off control: 150 W Maximum operating temperature of + 150 C Minimum operating temperature: - 55 C This product has a 12 ns of 16 ns. This product has a 14 ns of 16 ns. This product's 30 V. The ID of continuous drain current is 13 A. This product has a Vds-Drain-Source-Breakdown-Voltageof 600 V. The 550 mOhms for this product is 12 Ohms. The transistor polarity is N-Channel. 'Typical-Turn-Off-Delay-Time' of 61 ns This product has a 22 ns. Qg-Gate-Charge is 66 nC. This product features a 11 S of 500 S for high performance. This product operates in Enhancement channel mode for optimal performance.
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

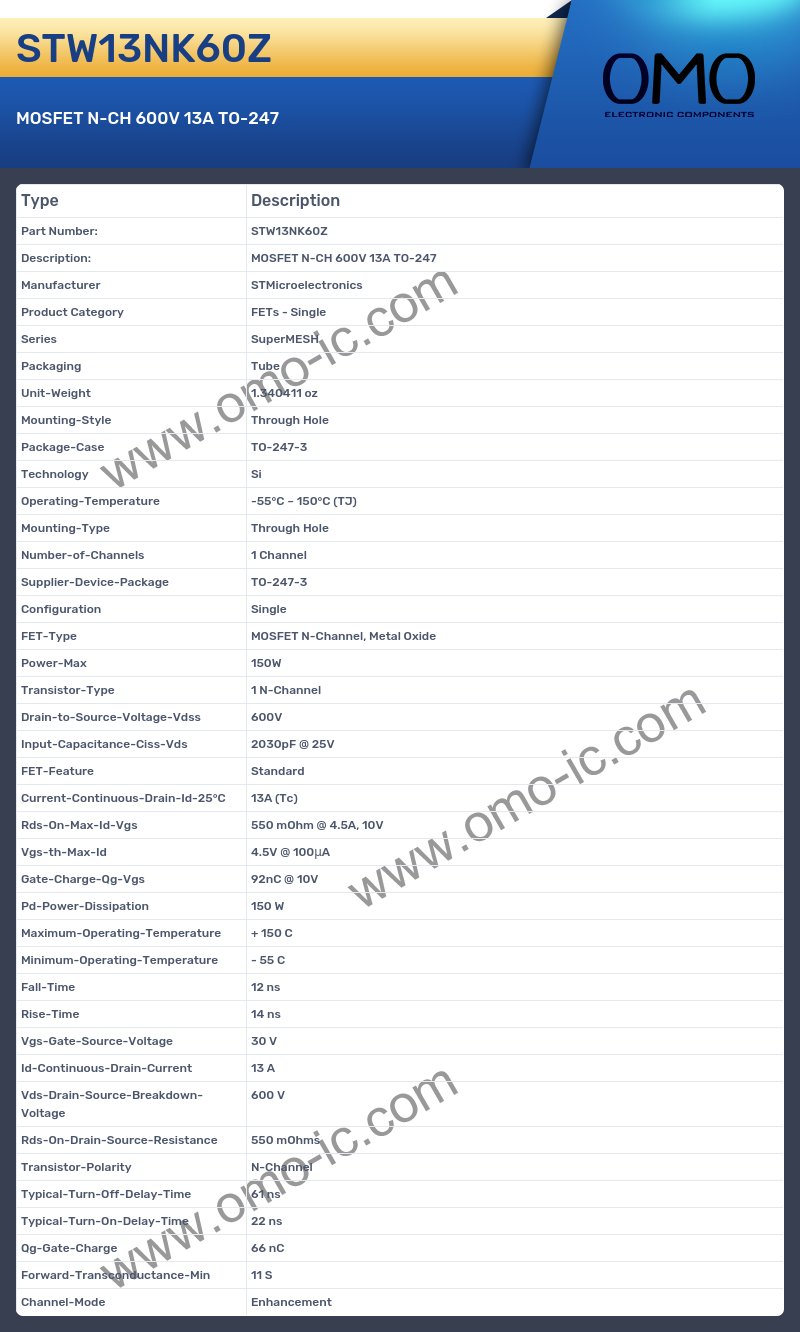

STW13NK60Z Specifications
