STTH5R06DJF-TR

STTH5R06DJF-TR Overview

Product belongs to the STTH5R06DJF series. This product is categorized as Ultra Fast Recovery Rectifiers Digi-ReelR Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style 8-PowerVDFN Surface Mount mounting type Supplier device package: PowerFlat (5x6) Operating frequency: Fast Recovery = 200mA (Io) Standard diode type The 60μA @ 600V Current-Reverse-Leakage-Vr 1. Vf Max 2V @ 5A is the Voltage-Forward; Maximum DC reverse voltage 600V The 5A Current-Average-Rectified-Io; The capacitance value of this product is - for maximum efficiency. Operating-Temperature-Junction: 175°C (Max) Maximum operating temperature of + 175 C Vf-Forward-Voltage: 2.9 V VR Reverse Voltage of 600 V If-Forward-Current is 5 A. Maximum Surge Current: 50 A

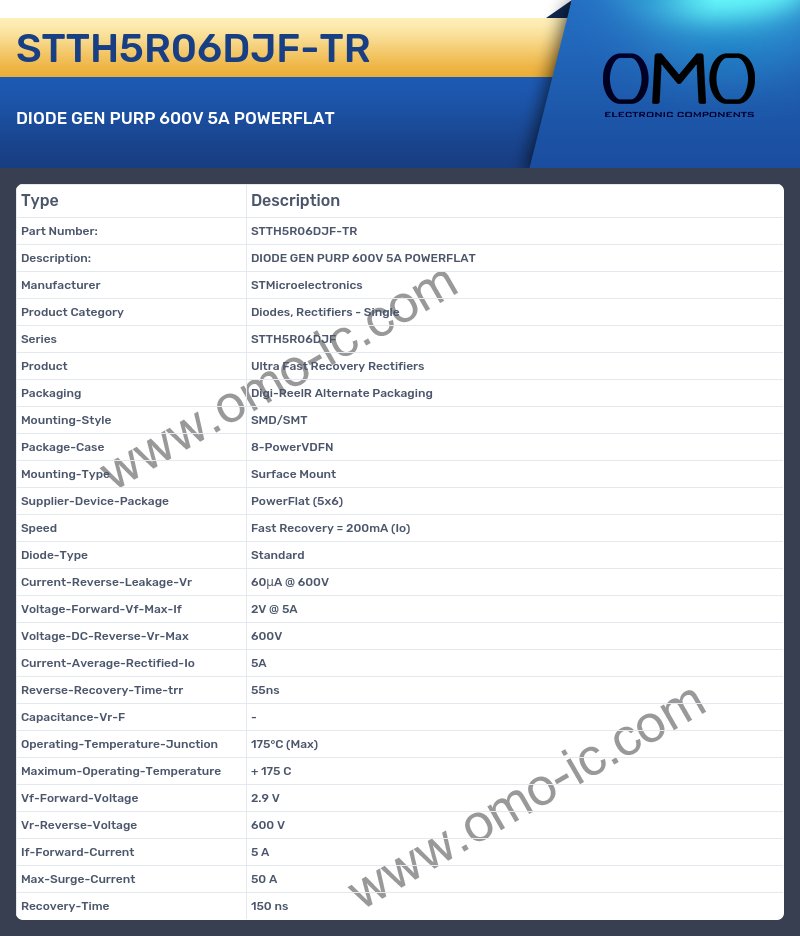

STTH5R06DJF-TR Image

STTH5R06DJF-TR Specifications

• Manufacturer STMicroelectronics
• Product Category Diodes, Rectifiers - Single
• Series STTH5R06DJF
• Product Ultra Fast Recovery Rectifiers
• Packaging Digi-ReelR Alternate Packaging
• Mounting-Style SMD/SMT
• Package-Case 8-PowerVDFN
• Mounting-Type Surface Mount
• Supplier-Device-Package PowerFlat (5x6)
• Speed Fast Recovery = 200mA (Io)
• Diode-Type Standard
• Current-Reverse-Leakage-Vr 60μA @ 600V
• Voltage-Forward-Vf-Max-If 2V @ 5A
• Voltage-DC-Reverse-Vr-Max 600V
• Current-Average-Rectified-Io 5A
• Reverse-Recovery-Time-trr 55ns
• Capacitance-Vr-F -
• Operating-Temperature-Junction 175°C (Max)
• Maximum-Operating-Temperature + 175 C
• Vf-Forward-Voltage 2.9 V
• Vr-Reverse-Voltage 600 V
• If-Forward-Current 5 A
• Max-Surge-Current 50 A
• Recovery-Time 150 ns
