STTH20R04D

STTH20R04D Overview

Product belongs to the STTH20R04 series. This product is categorized as Ultra Fast Recovery Rectifiers Tube is the packaging method for this product Weight of 0.211644 oz Through Hole Mounting-Style TO-220-2 Through Hole mounting type Supplier device package: TO-220AC Configuration Single Operating frequency: Fast Recovery = 200mA (Io) Standard diode type The 20μA @ 400V Current-Reverse-Leakage-Vr 1. Vf Max 1.7V @ 20A is the Voltage-Forward; Maximum DC reverse voltage 400V The 20A Current-Average-Rectified-Io; The capacitance value of this product is - for maximum efficiency. Operating-Temperature-Junction: 175°C (Max) Maximum operating temperature of + 175 C Minimum operating temperature: - 65 C Vf-Forward-Voltage: 1.7 V VR Reverse Voltage of 400 V Ir-Reverse-Current is 20 uA. If-Forward-Current is 20 A. Maximum Surge Current: 150 A

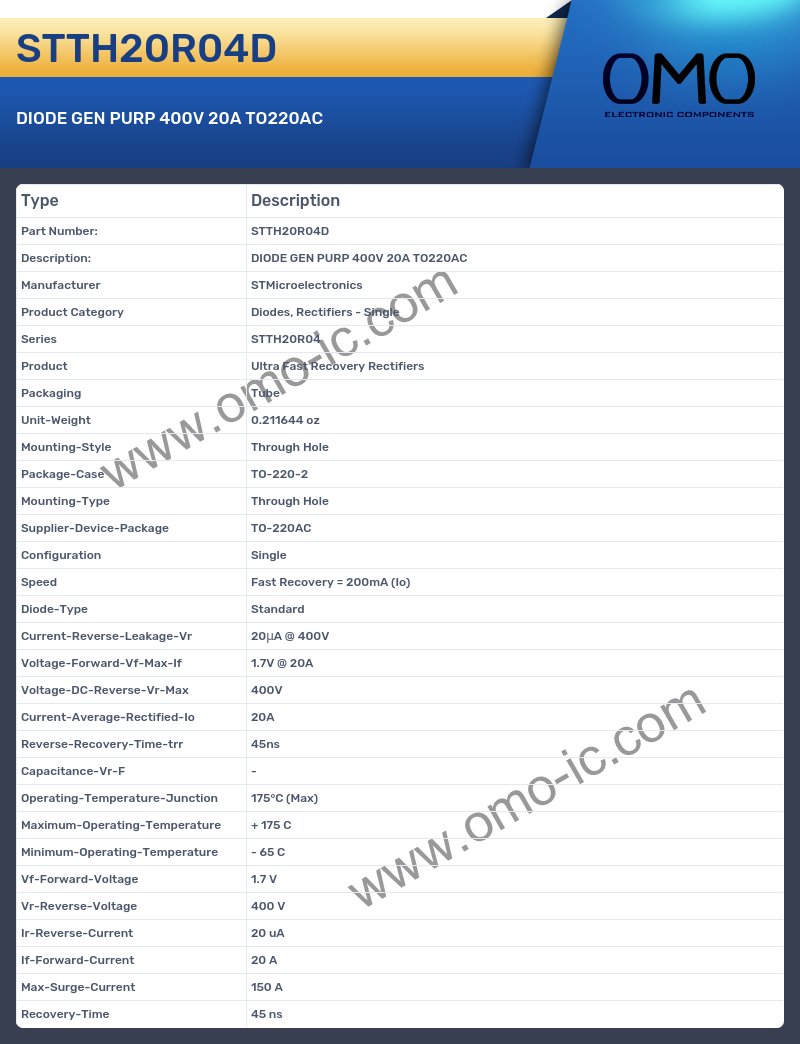

STTH20R04D Image

STTH20R04D Specifications

• Manufacturer STMicroelectronics
• Product Category Diodes, Rectifiers - Single
• Series STTH20R04
• Product Ultra Fast Recovery Rectifiers
• Packaging Tube
• Unit-Weight 0.211644 oz
• Mounting-Style Through Hole
• Package-Case TO-220-2
• Mounting-Type Through Hole
• Supplier-Device-Package TO-220AC
• Configuration Single
• Speed Fast Recovery = 200mA (Io)
• Diode-Type Standard
• Current-Reverse-Leakage-Vr 20μA @ 400V
• Voltage-Forward-Vf-Max-If 1.7V @ 20A
• Voltage-DC-Reverse-Vr-Max 400V
• Current-Average-Rectified-Io 20A
• Reverse-Recovery-Time-trr 45ns
• Capacitance-Vr-F -
• Operating-Temperature-Junction 175°C (Max)
• Maximum-Operating-Temperature + 175 C
• Minimum-Operating-Temperature - 65 C
• Vf-Forward-Voltage 1.7 V
• Vr-Reverse-Voltage 400 V
• Ir-Reverse-Current 20 uA
• If-Forward-Current 20 A
• Max-Surge-Current 150 A
• Recovery-Time 45 ns
