STTH1512GY-TR

STTH1512GY-TR Overview

Product belongs to the STTH1512-Y series. This product is categorized as Ultra Fast Recovery Rectifiers Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.079014 oz SMD/SMT Mounting-Style Wide - 40 C to + 175 C operating temperature range for diverse applications TO-263-3, D2Pak (2 Leads + Tab), TO-263AB Surface Mount mounting type Supplier device package: D2PAK Configuration Single Operating frequency: Fast Recovery = 200mA (Io) Standard diode type The 15μA @ 1200V Current-Reverse-Leakage-Vr 1. Vf Max 1.9V @ 15A is the Voltage-Forward; Maximum DC reverse voltage 1200V (1.2kV) The 15A Current-Average-Rectified-Io; The capacitance value of this product is - for maximum efficiency. Operating-Temperature-Junction: -40°C ~ 175°C Maximum operating temperature of + 175 C Minimum operating temperature: - 40 C Vf-Forward-Voltage: 2.1 V VR Reverse Voltage of 1200 V Ir-Reverse-Current is 15 uA. If-Forward-Current is 15 A. Maximum Surge Current: 200 A

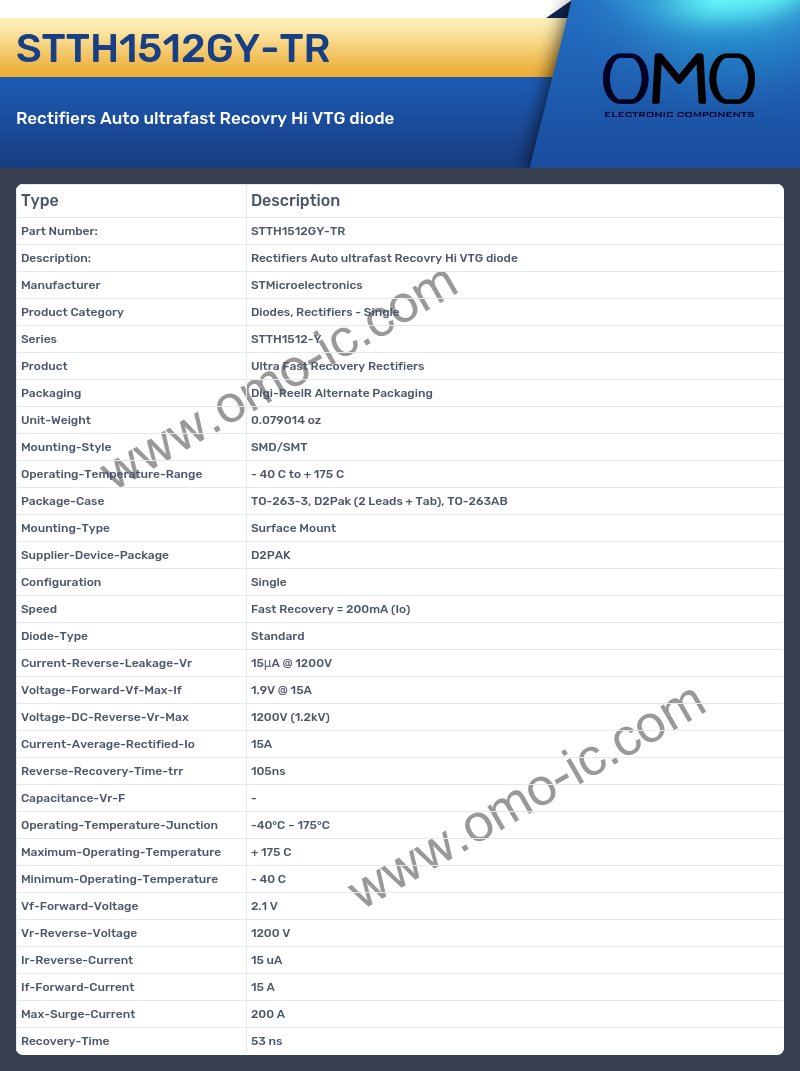

STTH1512GY-TR Image

STTH1512GY-TR Specifications

• Manufacturer STMicroelectronics
• Product Category Diodes, Rectifiers - Single
• Series STTH1512-Y
• Product Ultra Fast Recovery Rectifiers
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.079014 oz
• Mounting-Style SMD/SMT
• Operating-Temperature-Range - 40 C to + 175 C
• Package-Case TO-263-3, D2Pak (2 Leads + Tab), TO-263AB
• Mounting-Type Surface Mount
• Supplier-Device-Package D2PAK
• Configuration Single
• Speed Fast Recovery = 200mA (Io)
• Diode-Type Standard
• Current-Reverse-Leakage-Vr 15μA @ 1200V
• Voltage-Forward-Vf-Max-If 1.9V @ 15A
• Voltage-DC-Reverse-Vr-Max 1200V (1.2kV)
• Current-Average-Rectified-Io 15A
• Reverse-Recovery-Time-trr 105ns
• Capacitance-Vr-F -
• Operating-Temperature-Junction -40°C ~ 175°C
• Maximum-Operating-Temperature + 175 C
• Minimum-Operating-Temperature - 40 C
• Vf-Forward-Voltage 2.1 V
• Vr-Reverse-Voltage 1200 V
• Ir-Reverse-Current 15 uA
• If-Forward-Current 15 A
• Max-Surge-Current 200 A
• Recovery-Time 53 ns
