STSR2PMCD-TR

STSR2PMCD-TR Overview

Product belongs to the STSR2PM series. Type: Low-Side Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.017870 oz SMD/SMT Mounting-Style SO-8 Operational temperature range: 40ns, 30ns -40°C ~ 125°C (TJ) mounting type Supplier device package: 8-SOIC (0.154", 3.90mm Width) Resolution-Bits: 2 Data-Interface: Synchronous The Voltage-Supply-Analog is Non-Inverting. The Voltage Supply Digital for this product is -. 4.5 V ~ 5.5 V is supported. Number-of-Outputs: 2 Output Topology: Forward feedback Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Output voltage: 4.85 V Input Voltage Range: 4.5 V to 5.5 V Output current: 2 A Switching frequency is 750 kHz

STSR2PMCD-TR Image

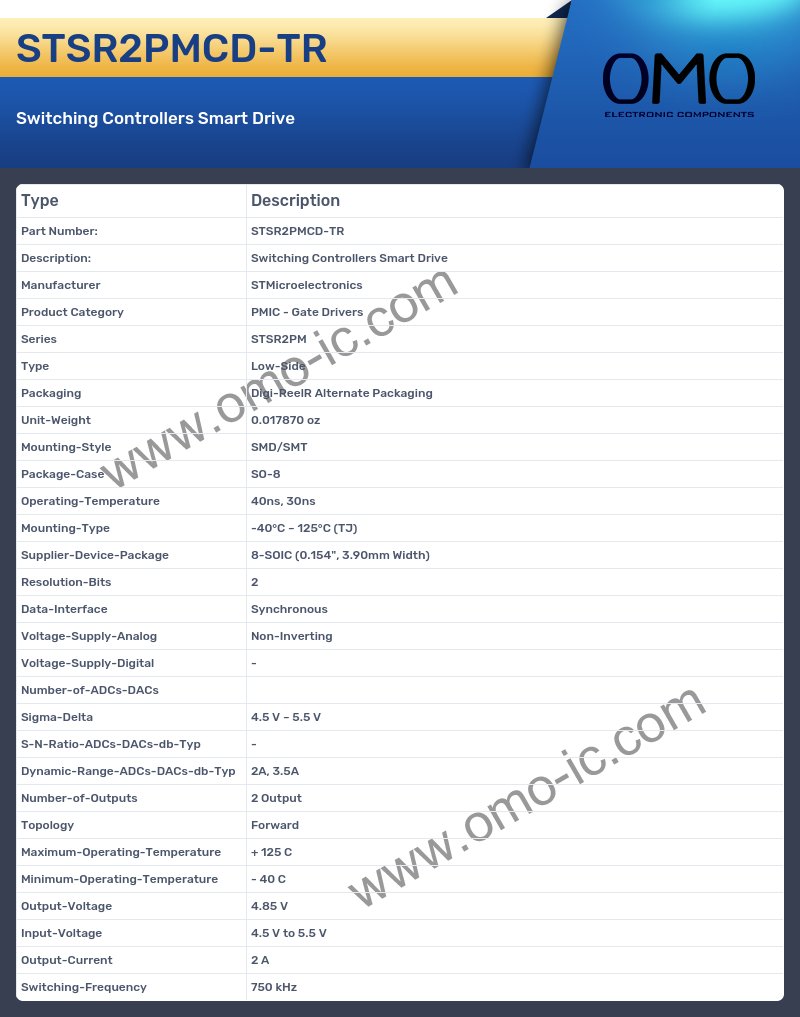

STSR2PMCD-TR Specifications

• Manufacturer STMicroelectronics
• Product Category PMIC - Gate Drivers
• Series STSR2PM
• Type Low-Side
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.017870 oz
• Mounting-Style SMD/SMT
• Package-Case SO-8
• Operating-Temperature 40ns, 30ns
• Mounting-Type -40°C ~ 125°C (TJ)
• Supplier-Device-Package 8-SOIC (0.154", 3.90mm Width)
• Resolution-Bits 2
• Data-Interface Synchronous
• Voltage-Supply-Analog Non-Inverting
• Voltage-Supply-Digital -
• Number-of-ADCs-DACs
• Sigma-Delta 4.5 V ~ 5.5 V
• S-N-Ratio-ADCs-DACs-db-Typ -
• Dynamic-Range-ADCs-DACs-db-Typ 2A, 3.5A
• Number-of-Outputs 2 Output
• Topology Forward
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 4.85 V
• Input-Voltage 4.5 V to 5.5 V
• Output-Current 2 A
• Switching-Frequency 750 kHz
