STSJ25NF3LL

STSJ25NF3LL Overview

Product belongs to the STripFET II series. Tape & Reel (TR) is the packaging method for this product Product Obsolete N-Channel FET Type MOSFET (Metal Oxide) is the technology used. Drain to Source Voltage (Vdss) is 30V Current - Continuous Drain (Id) at 25°C is given as 25A (Tc). This product's 4.5V, 10V is 1.8V, 4.5V. This product's 1V @ 250A for optimal performance. The maximum 33nC @ 4.5V gate charge of this product ensures efficient switching performance. Vgs (Max): ±16V This product has a maximum 1650pF @ 25V input capacitance at Vds for improved circuit performance. The maximum power dissipation is 70W (Tc). Rds On (Max) @ Id, Vgs is 10.5 mOhm @ 12.5A, 10V. Operating Temperature of 150°C (TJ) This product has a Surface Mount. The supplier device package for this product is 8-SOIC. Package type is 8-SOIC (0.154", 3.90mm Width) Exposed Pad

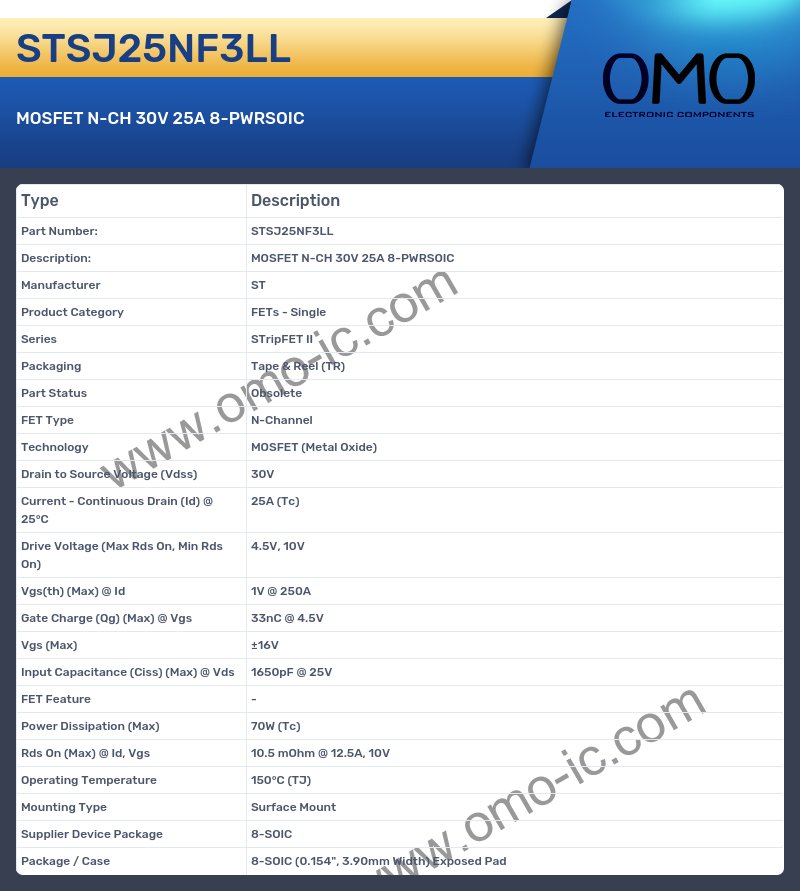

STSJ25NF3LL Image

STSJ25NF3LL Specifications

• Manufacturer ST
• Product Category FETs - Single
• Series STripFET II
• Packaging Tape & Reel (TR)
• Part Status Obsolete
• FET Type N-Channel
• Technology MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss) 30V
• Current - Continuous Drain (Id) @ 25°C 25A (Tc)
• Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
• Vgs(th) (Max) @ Id 1V @ 250A
• Gate Charge (Qg) (Max) @ Vgs 33nC @ 4.5V
• Vgs (Max) ±16V
• Input Capacitance (Ciss) (Max) @ Vds 1650pF @ 25V
• FET Feature -
• Power Dissipation (Max) 70W (Tc)
• Rds On (Max) @ Id, Vgs 10.5 mOhm @ 12.5A, 10V
• Operating Temperature 150°C (TJ)
• Mounting Type Surface Mount
• Supplier Device Package 8-SOIC
• Package / Case 8-SOIC (0.154", 3.90mm Width) Exposed Pad
