STS8DNH3LL

STS8DNH3LL Overview

Product belongs to the STripFET III series. Digi-ReelR is the packaging method for this product 8-SOIC (0.154", 3.90mm Width) Operational temperature range: 150°C (TJ) Surface Mount mounting type Supplier device package: 8-SO This product uses an 2 N-Channel (Dual) FET-Type transistor. 30V This product has an 857pF @ 25V value of 300pF @ 25V. This product's Logic Level Gate. 8A continuous drain-ID current at 25°C; This product has an 22 mOhm @ 4A, 10V of 12 Ohm @ 150mA, 0V.

STS8DNH3LL Image

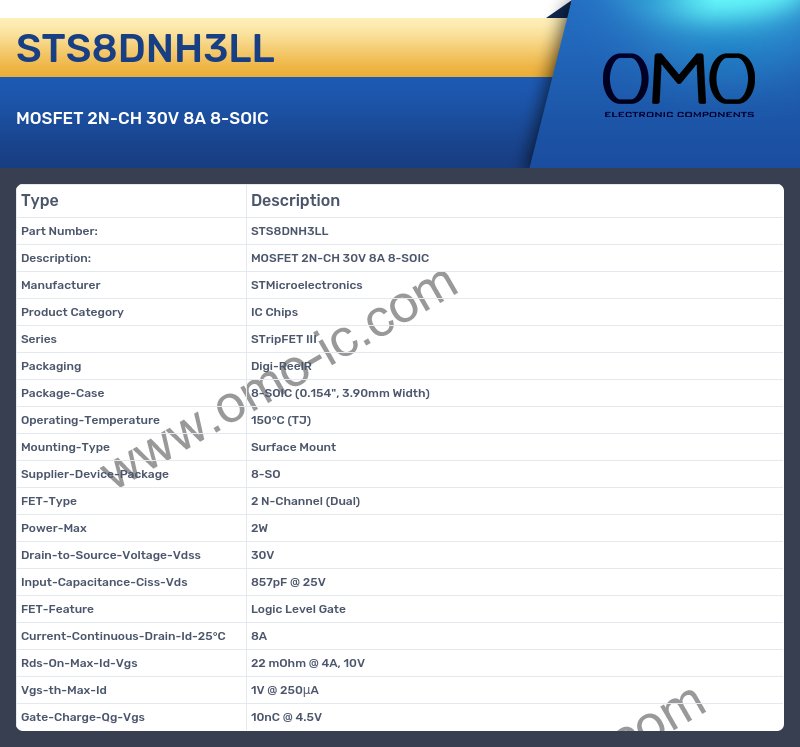

STS8DNH3LL Specifications

• Manufacturer STMicroelectronics
• Product Category IC Chips
• Series STripFET III
• Packaging Digi-ReelR
• Package-Case 8-SOIC (0.154", 3.90mm Width)
• Operating-Temperature 150°C (TJ)
• Mounting-Type Surface Mount
• Supplier-Device-Package 8-SO
• FET-Type 2 N-Channel (Dual)
• Power-Max 2W
• Drain-to-Source-Voltage-Vdss 30V
• Input-Capacitance-Ciss-Vds 857pF @ 25V
• FET-Feature Logic Level Gate
• Current-Continuous-Drain-Id-25°C 8A
• Rds-On-Max-Id-Vgs 22 mOhm @ 4A, 10V
• Vgs-th-Max-Id 1V @ 250μA
• Gate-Charge-Qg-Vgs 10nC @ 4.5V
