| Mfr. #: | STS5DNF60L |
|---|---|
| Өндіруші: | STMicroelectronics |
| Сипаттама: | MOSFET 2N-CH 60V 5A 8-SOIC |
| Өміршеңдік кезең: | Осы өндірушіден жаңа. |
| Деректер тізімі: | STS5DNF60L Деректер тізімі |
Product belongs to the STripFET II series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.017870 oz SMD/SMT Mounting-Style 8-SOIC (0.154", 3.90mm Width) Si is the technology used. Operational temperature range: -55°C ~ 150°C (TJ) Surface Mount mounting type Number of channels: 2 Channel Supplier device package: 8-SO Configuration Dual This product uses an 2 N-Channel (Dual) FET-Type transistor. Transistor type: 2 N-Channel 60V This product has an 1030pF @ 25V value of 300pF @ 25V. This product's Logic Level Gate. 5A continuous drain-ID current at 25°C; This product has an 45 mOhm @ 2A, 10V of 12 Ohm @ 150mA, 0V. Power-off control: 2 W Maximum operating temperature of + 150 C Minimum operating temperature: - 55 C This product has a 10 ns of 16 ns. This product has a 28 ns of 16 ns. This product's 15 V. The ID of continuous drain current is 5 A. This product has a Vds-Drain-Source-Breakdown-Voltageof 60 V. This product has a 1.7 V Vgs-th gate-source threshold voltage for efficient power management. The 45 mOhms for this product is 12 Ohms. The transistor polarity is N-Channel. 'Typical-Turn-Off-Delay-Time' of 45 ns This product has a 15 ns. Qg-Gate-Charge is 15 nC. This product features a 25 S of 500 S for high performance.
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

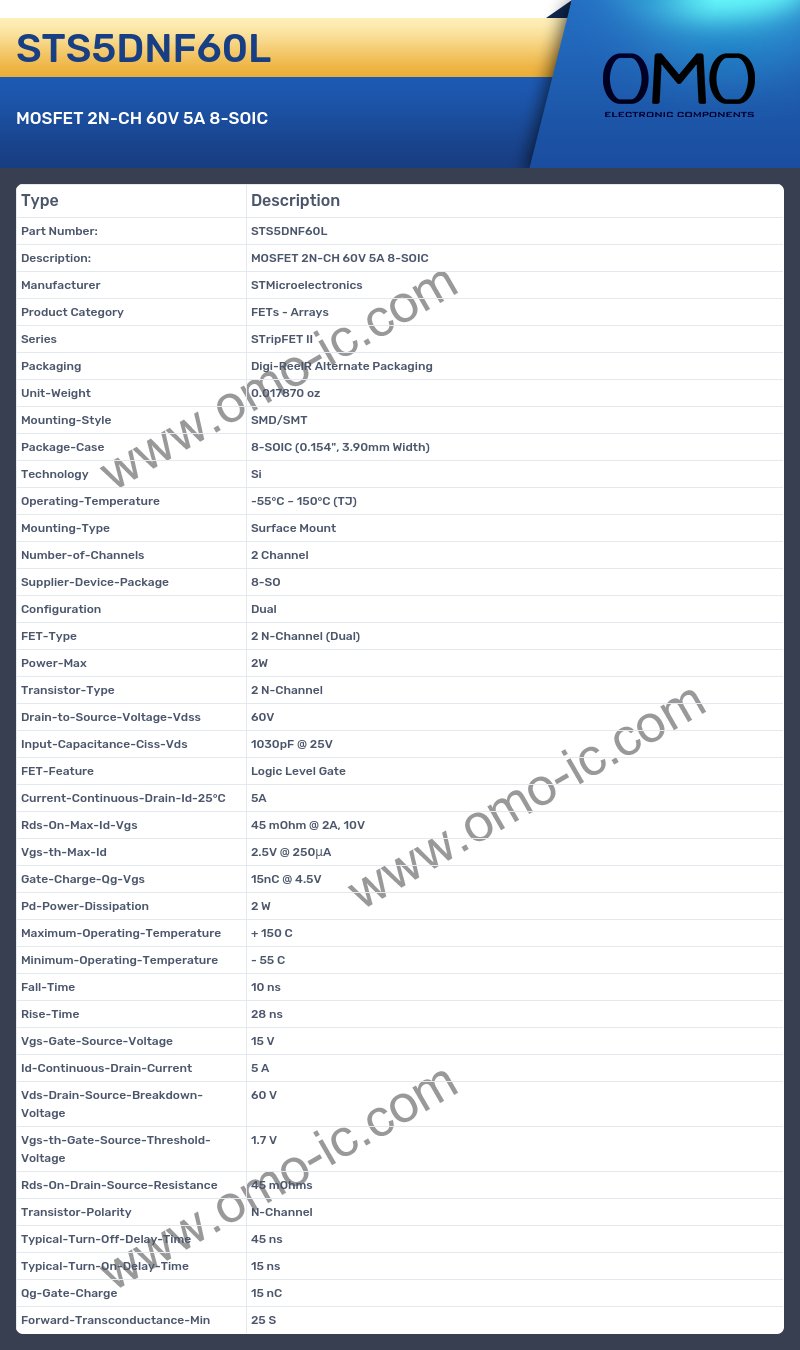

STS5DNF60L Specifications
A: At what frequency does the Series?
Q: The product Series is STripFET II.
A: At what frequency does the Packaging?
Q: The product Packaging is Digi-ReelR Alternate Packaging.
A: Is the cutoff frequency of the product Unit-Weight?
Q: Yes, the product's Unit-Weight is indeed 0.017870 oz
A: At what frequency does the Mounting-Style?
Q: The product Mounting-Style is SMD/SMT.
A: Is the cutoff frequency of the product Package-Case?
Q: Yes, the product's Package-Case is indeed 8-SOIC (0.154", 3.90mm Width)
A: What is the Technology of the product?
Q: The Technology of the product is Si.
A: Is the cutoff frequency of the product Operating-Temperature?
Q: Yes, the product's Operating-Temperature is indeed -55°C ~ 150°C (TJ)
A: Is the cutoff frequency of the product Mounting-Type?
Q: Yes, the product's Mounting-Type is indeed Surface Mount
A: Is the cutoff frequency of the product Number-of-Channels?
Q: Yes, the product's Number-of-Channels is indeed 2 Channel
A: At what frequency does the Supplier-Device-Package?
Q: The product Supplier-Device-Package is 8-SO.
A: Is the cutoff frequency of the product Configuration?
Q: Yes, the product's Configuration is indeed Dual
A: At what frequency does the FET-Type?
Q: The product FET-Type is 2 N-Channel (Dual).
A: What is the Transistor-Type of the product?
Q: The Transistor-Type of the product is 2 N-Channel.
A: What is the Drain-to-Source-Voltage-Vdss of the product?
Q: The Drain-to-Source-Voltage-Vdss of the product is 60V.
A: At what frequency does the Input-Capacitance-Ciss-Vds?
Q: The product Input-Capacitance-Ciss-Vds is 1030pF @ 25V.
A: What is the FET-Feature of the product?
Q: The FET-Feature of the product is Logic Level Gate.
A: At what frequency does the Current-Continuous-Drain-Id-25°C?
Q: The product Current-Continuous-Drain-Id-25°C is 5A.
A: What is the Rds-On-Max-Id-Vgs of the product?
Q: The Rds-On-Max-Id-Vgs of the product is 45 mOhm @ 2A, 10V.
A: What is the Pd-Power-Dissipation of the product?
Q: The Pd-Power-Dissipation of the product is 2 W.
A: At what frequency does the Maximum-Operating-Temperature?
Q: The product Maximum-Operating-Temperature is + 150 C.
A: What is the Minimum-Operating-Temperature of the product?
Q: The Minimum-Operating-Temperature of the product is - 55 C.
A: At what frequency does the Fall-Time?
Q: The product Fall-Time is 10 ns.
A: What is the Rise-Time of the product?
Q: The Rise-Time of the product is 28 ns.
A: At what frequency does the Vgs-Gate-Source-Voltage?
Q: The product Vgs-Gate-Source-Voltage is 15 V.
A: At what frequency does the Id-Continuous-Drain-Current?
Q: The product Id-Continuous-Drain-Current is 5 A.
A: At what frequency does the Vds-Drain-Source-Breakdown-Voltage?
Q: The product Vds-Drain-Source-Breakdown-Voltage is 60 V.
A: What is the Vgs-th-Gate-Source-Threshold-Voltage of the product?
Q: The Vgs-th-Gate-Source-Threshold-Voltage of the product is 1.7 V.
A: At what frequency does the Rds-On-Drain-Source-Resistance?
Q: The product Rds-On-Drain-Source-Resistance is 45 mOhms.
A: What is the Transistor-Polarity of the product?
Q: The Transistor-Polarity of the product is N-Channel.
A: Is the cutoff frequency of the product Typical-Turn-Off-Delay-Time?
Q: Yes, the product's Typical-Turn-Off-Delay-Time is indeed 45 ns
A: At what frequency does the Typical-Turn-On-Delay-Time?
Q: The product Typical-Turn-On-Delay-Time is 15 ns.
A: Is the cutoff frequency of the product Qg-Gate-Charge?
Q: Yes, the product's Qg-Gate-Charge is indeed 15 nC
A: What is the Forward-Transconductance-Min of the product?
Q: The Forward-Transconductance-Min of the product is 25 S.
