STPS8H100FP

STPS8H100FP Overview

Product belongs to the STPS8H100 series. This product is categorized as Schottky Rectifiers Tube is the packaging method for this product Weight of 0.090478 oz Through Hole Mounting-Style TO-220-2 Full Pack, Isolated Tab Si is the technology used. Through Hole mounting type Supplier device package: TO-220FPAC Configuration Single Operating frequency: Fast Recovery = 200mA (Io) Schottky diode type The 4.5μA @ 100V Current-Reverse-Leakage-Vr 1. Vf Max 710mV @ 8A is the Voltage-Forward; Maximum DC reverse voltage 100V The 8A Current-Average-Rectified-Io; The capacitance value of this product is - for maximum efficiency. Operating-Temperature-Junction: 175°C (Max) Maximum operating temperature of + 175 C Minimum operating temperature: - 65 C Vf-Forward-Voltage: 0.81 V at 16 A Ir-Reverse-Current is 4.5 uA. If-Forward-Current is 8 A. VRRM (100 V) Reverse Voltage 250 A IFSM Forward Surge Current

STPS8H100FP Image

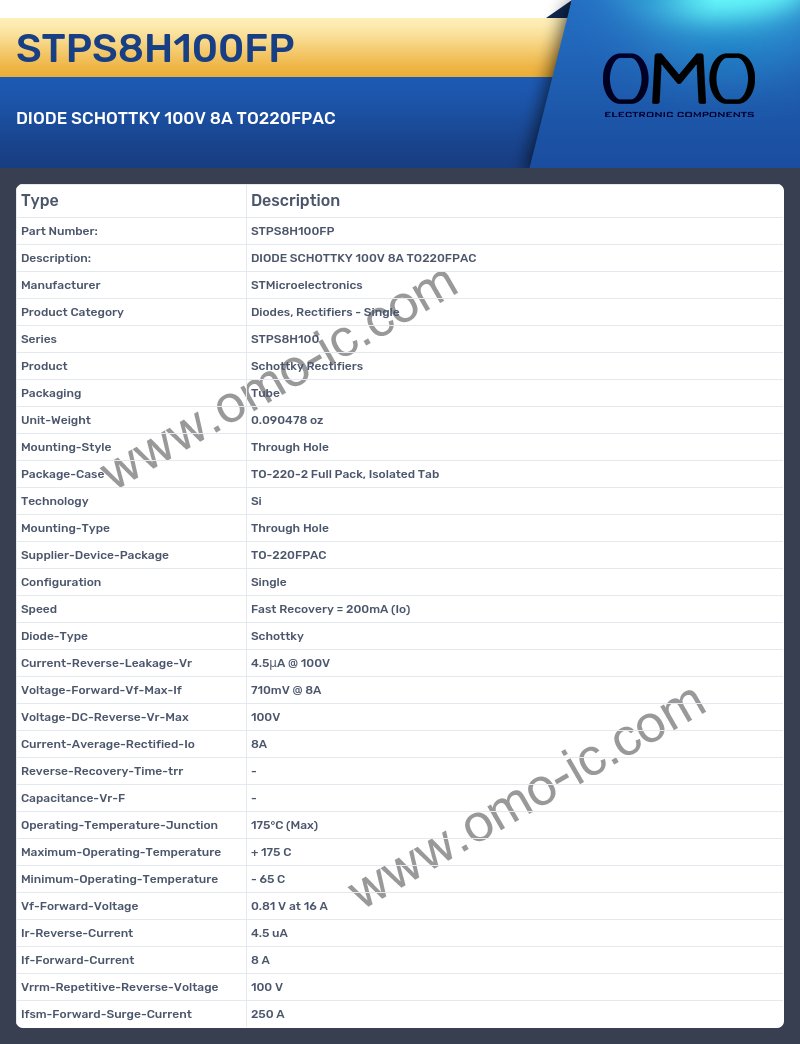

STPS8H100FP Specifications

• Manufacturer STMicroelectronics
• Product Category Diodes, Rectifiers - Single
• Series STPS8H100
• Product Schottky Rectifiers
• Packaging Tube
• Unit-Weight 0.090478 oz
• Mounting-Style Through Hole
• Package-Case TO-220-2 Full Pack, Isolated Tab
• Technology Si
• Mounting-Type Through Hole
• Supplier-Device-Package TO-220FPAC
• Configuration Single
• Speed Fast Recovery = 200mA (Io)
• Diode-Type Schottky
• Current-Reverse-Leakage-Vr 4.5μA @ 100V
• Voltage-Forward-Vf-Max-If 710mV @ 8A
• Voltage-DC-Reverse-Vr-Max 100V
• Current-Average-Rectified-Io 8A
• Reverse-Recovery-Time-trr -
• Capacitance-Vr-F -
• Operating-Temperature-Junction 175°C (Max)
• Maximum-Operating-Temperature + 175 C
• Minimum-Operating-Temperature - 65 C
• Vf-Forward-Voltage 0.81 V at 16 A
• Ir-Reverse-Current 4.5 uA
• If-Forward-Current 8 A
• Vrrm-Repetitive-Reverse-Voltage 100 V
• Ifsm-Forward-Surge-Current 250 A
