STPS5L60SY

STPS5L60SY Overview

Product belongs to the Q Automotive series. This product is categorized as Schottky Rectifiers Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.010582 oz SMD/SMT Mounting-Style DO-214AB, SMC Si is the technology used. Surface Mount mounting type Supplier device package: SMC Configuration Single Operating frequency: Fast Recovery = 200mA (Io) Schottky diode type The 220μA @ 60V Current-Reverse-Leakage-Vr 1. Vf Max 520mV @ 5A is the Voltage-Forward; Maximum DC reverse voltage 60V The 5A Current-Average-Rectified-Io; The capacitance value of this product is - for maximum efficiency. Operating-Temperature-Junction: -40°C ~ 150°C Maximum operating temperature of + 150 C Minimum operating temperature: - 40 C Vf-Forward-Voltage: 0.52 V Ir-Reverse-Current is 100 mA. If-Forward-Current is 5 A. VRRM (60 V) Reverse Voltage 150 A IFSM Forward Surge Current

STPS5L60SY Image

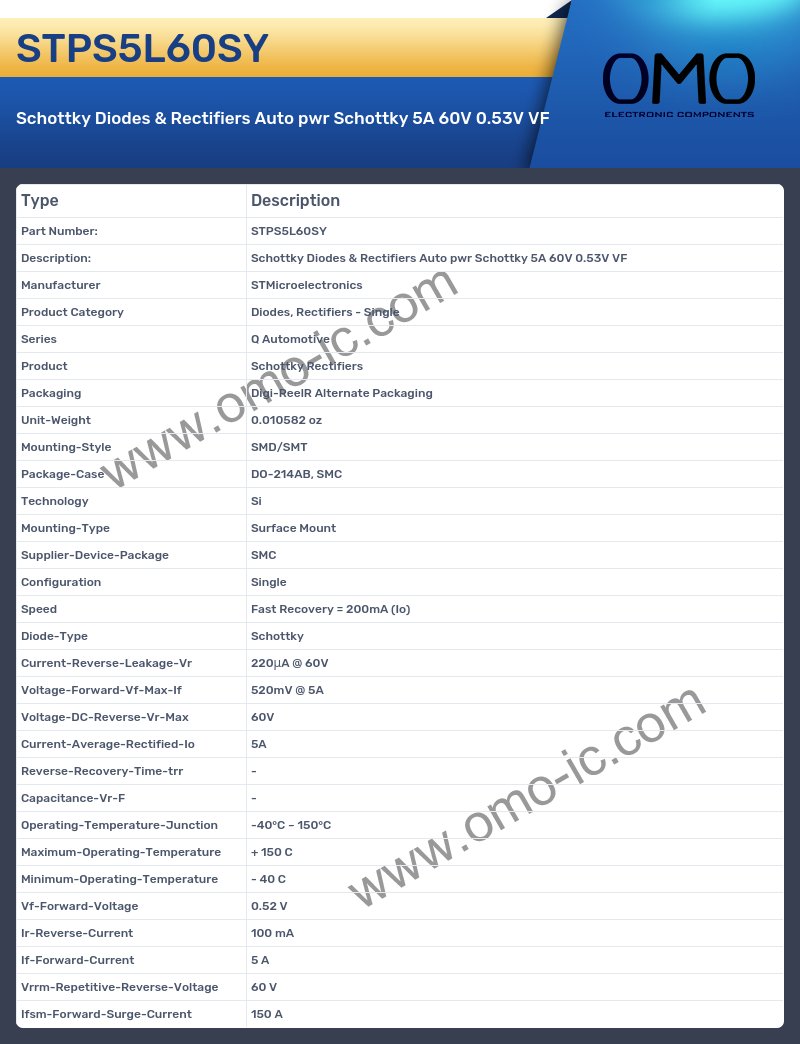

STPS5L60SY Specifications

• Manufacturer STMicroelectronics
• Product Category Diodes, Rectifiers - Single
• Series Q Automotive
• Product Schottky Rectifiers
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.010582 oz
• Mounting-Style SMD/SMT
• Package-Case DO-214AB, SMC
• Technology Si
• Mounting-Type Surface Mount
• Supplier-Device-Package SMC
• Configuration Single
• Speed Fast Recovery = 200mA (Io)
• Diode-Type Schottky
• Current-Reverse-Leakage-Vr 220μA @ 60V
• Voltage-Forward-Vf-Max-If 520mV @ 5A
• Voltage-DC-Reverse-Vr-Max 60V
• Current-Average-Rectified-Io 5A
• Reverse-Recovery-Time-trr -
• Capacitance-Vr-F -
• Operating-Temperature-Junction -40°C ~ 150°C
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 40 C
• Vf-Forward-Voltage 0.52 V
• Ir-Reverse-Current 100 mA
• If-Forward-Current 5 A
• Vrrm-Repetitive-Reverse-Voltage 60 V
• Ifsm-Forward-Surge-Current 150 A
