STPS5045SG-TR

STPS5045SG-TR Overview

Product belongs to the STPS5045S series. This product is categorized as Schottky Rectifiers Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.070548 oz Through Hole Mounting-Style TO-263-3, D2Pak (2 Leads + Tab), TO-263AB Si is the technology used. Surface Mount mounting type Supplier device package: D2PAK Configuration Dual Operating frequency: Fast Recovery = 200mA (Io) Schottky diode type The 360μA @ 45V Current-Reverse-Leakage-Vr 1. Vf Max 610mV @ 50A is the Voltage-Forward; Maximum DC reverse voltage 45V The 50A Current-Average-Rectified-Io; The capacitance value of this product is - for maximum efficiency. Operating-Temperature-Junction: 200°C (Max) Vf-Forward-Voltage: 0.56 V Ir-Reverse-Current is 185 mA. If-Forward-Current is 90 A. VRRM (45 V) Reverse Voltage 600 A IFSM Forward Surge Current

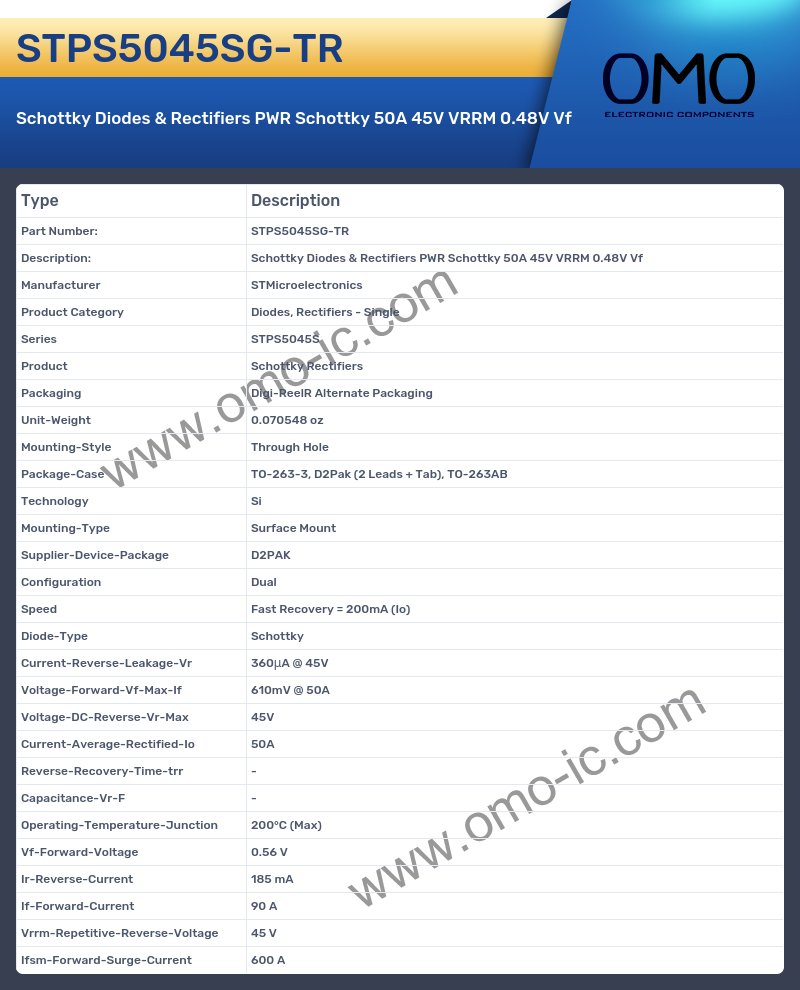

STPS5045SG-TR Image

STPS5045SG-TR Specifications

• Manufacturer STMicroelectronics
• Product Category Diodes, Rectifiers - Single
• Series STPS5045S
• Product Schottky Rectifiers
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.070548 oz
• Mounting-Style Through Hole
• Package-Case TO-263-3, D2Pak (2 Leads + Tab), TO-263AB
• Technology Si
• Mounting-Type Surface Mount
• Supplier-Device-Package D2PAK
• Configuration Dual
• Speed Fast Recovery = 200mA (Io)
• Diode-Type Schottky
• Current-Reverse-Leakage-Vr 360μA @ 45V
• Voltage-Forward-Vf-Max-If 610mV @ 50A
• Voltage-DC-Reverse-Vr-Max 45V
• Current-Average-Rectified-Io 50A
• Reverse-Recovery-Time-trr -
• Capacitance-Vr-F -
• Operating-Temperature-Junction 200°C (Max)
• Vf-Forward-Voltage 0.56 V
• Ir-Reverse-Current 185 mA
• If-Forward-Current 90 A
• Vrrm-Repetitive-Reverse-Voltage 45 V
• Ifsm-Forward-Surge-Current 600 A
